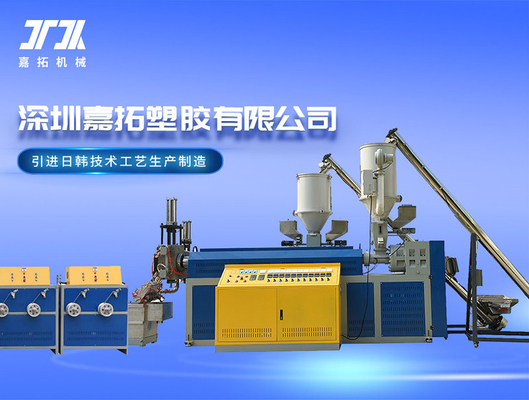

High-Speed PP Strap Making Machine for Mass Production 300KG/H
Product Description of PP Strap Making Machine:
Working process of PP strapping equipment:
Raw material preparation: Add PP granules into the extruder hopper.
Extrusion molding: PP granules are melted in the extruder and extruded through the mold.
Cooling and shaping: The extruded strapping tape enters the cooling water tank for cooling and shaping.
Traction and stretching: The traction machine pulls the strapping tape, and the stretching machine performs stretching treatment.
Embossed treatment: The embossing machine embosses the surface of the strapping tape.
Shaping oven: Heat and shape the PP tape again to achieve consistent specifications.
Reeling and packaging: The reeling machine winds the strapping tape into a roll and puts it into storage after packaging.
Features of PP Strap Making Machine:
- Product Name: PP Strap Making Machine
- Warranty: 1 Year
- Strap Width: 5-19mm
- Screw diameter (mm): 110*3300mm
- Trademark: JiaTuo China
- PP Strap Making Machine
- Plastic Strap Production Machine
- Polypropylene Banding Machine
- Polypropylene Strap Manufacture Equipment
Technical Parameters of PP Strap Making Machine:
| Parameter |
Value |
| Name |
PP packing belt equipment |
| Applicable raw materials |
100% Recycled Material And Polypropylene |
| Power Consumption |
100KW |
| Strap Color |
Red/ Green/ Black/ Yellow/ White |
| Strap Width |
5-19mm |
| Screw diameter (mm) |
110*3300mm |
|
Gearbox model
|
225 # |
|
Motor power
|
37kw (Siemens) |
|
Host inverter
|
37kw (INVT)
|
|
Paper core specification
|
￠200*180mm
|
Applications of PP Strap Making Machine:
Screw-----The equipment adopts high-precision and high-quality extruder screw, which is a well-known brand with unique parameter design.
It has the advantages of large extrusion volume, good plasticization, high hardness and wear resistance. It is equipped with a quantitative extrusion system.
The width and thickness of the belts produced are the same, with a small error range, which meets the national strapping belt acceptance standards.
About After-sales
We provide comprehensive technical support and service for our PP Strap Making Machine. Our team of experienced technicians can provide a variety of services, including:
Pre-sales:
1.Layout plan of PP belt making machine.
2.Analysis of the cost of PP tape making machine.
3.Raw materials that can be used for PP tape making machine.
After-sales service:
1.Water and electricity circuits of PP belt making machine, circuit drawings, etc.
2.Installation, commissioning and training of PP belt making machine.
3.Maintenance service of PP belt making machine.
4.Regular maintenance and repair
5.Troubleshooting and diagnosis
6.Software updates and upgrades
7.Spare parts and accessories
8.Training and technical advice
