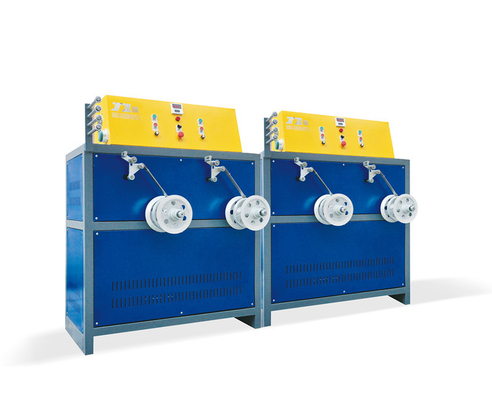

High Efficiency PP Packing Belt Machine Automatic Control PP Strap Production Line

High Efficiency PP packing belt production equipment with Automatic Control

Main features of PP strapping production line

High efficiency----high degree of automation, PLC control system, fast production speed, line speed 200-300 m/min.

High quality----high speed rotation, high output, low power consumption, the finished PP straps produced have good toughness and bending resistance, which meet the requirements of fully automatic strapping machines.

Environmental protection----Use PP new materials or recyclable materials for production, non-toxic, odorless and degradable.

Multi-function----Can produce different specifications of width, thickness, length and weight. Width: 5-19mm, thickness: 0.3-1.2mm.

Features of PP new material/recycled material:

• Product Name: PP Strap Making Machine
• Strap Core Type:PP  Paper/Plastic
• Power Consumption: 100KW
• Model:JTPP-110
• Equipment footprint: 36*2.0*4.0M
• Capacity: 200~230kg per hour
• The equipment voltage is: three-phase 380v /50Hz
• Container:2*40GP

Technical Parameters of PP new material/recycled material:

Applications of PP new material/recycled material:

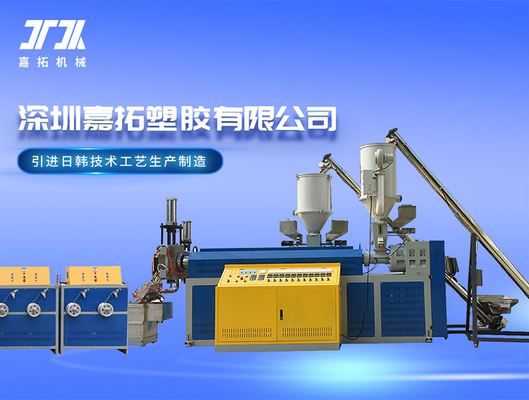

The main components of PP strapping equipment:

Extruder: core component, heats and melts PP particles and then extrude them into shape.

Die head: determines the shape and size of the plastic strap.

Cooling system: quickly solidifies the extruded plastic strap through water cooling or air cooling.

Tractor: pulls out the cooled plastic strap to ensure uniform thickness and width.

Oven: heats the strap embryo and stretches it into shape, stretching ratio: 10-20 times.

Coiler: winds the plastic strap into a roll for easy storage and transportation.

Control system: PLC automatically controls each component to ensure stable production.
