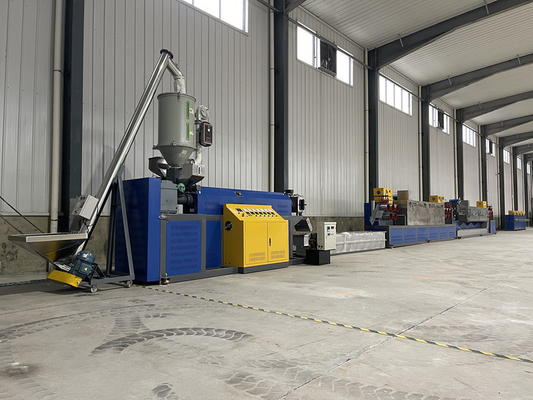

Plastic extruder PP strapping production line PP strapping equipment for 200-300m/min line speed
Product Description of packing belt production equipment:
The PP Strap Making Machine is a reliable and cost-effective solution for the production of PP straps.

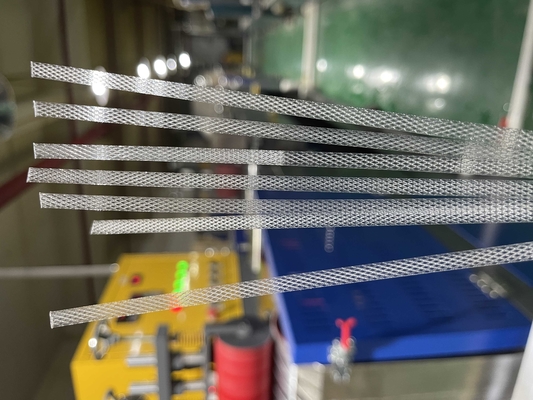

PP strapping tape, also known as polypropylene strapping tape, is a strapping tape made of polypropylene brushed resin as the main raw material. It has superior characteristics:
Good plasticity-----can be formed into various shapes and sizes as needed, width: 5-19mm, thickness: 0.3-1.2mm.
Strong breaking tensile force----has a high load-bearing capacity, suitable for various occasions that require packaging and fixing.
Bending resistance----will not easily break or damage even after multiple bending.
Low density----relatively light weight, easy to carry and use.
PP strapping tape is also very easy to use, so it is widely used in many fields, including but not limited to logistics, packaging, transportation, electronic products, hardware, home appliances, clothing, etc.
Technical Parameters:
| Name |
Parameters |
| Strap Width |
5-19mm |
| Thickness range |
0.4-1.2mm |
| Screw diameter (mm) |
110*3300mm |
| Strap Speed |
>260-300m/min |
| motor power |
37kw (Siemens) |
| ost frequency converte |
37(INVT) |
| stretching oven specification |
4000*470*880mm |
| PLC control system |
PLC touch screen control system |
FeaturesProduct Description of packing belt production equipment:
Technical Parameters:
| Name |
Parameters |
| Strap Tension |
Adjustable |
| Strap Width |
5-19mm |
|
Thickness range
|
0.4-1.2mm |
| Screw diameter (mm) |
110*3300mm |
| Strap Speed |
>260m/min |
|
motor power
|
37kw (Siemens) |
|
ost frequency converte
|
37(INVT)
|
|
Thermostat and solid state relay
|
(Taiwan Yangming)
|
|
stretching oven specification
|
4000*470*880mm
|
|
PLC control system
|
PLC touch screen control system
|
Applications of packing belt production equipment:
The difference between PP strapping equipment and PET plastic steel strapping equipment:
1. Raw materials used in PP strapping equipment: PP polypropylene drawing grade raw materials, new materials or recycled materials
2. Raw materials used in PET strapping equipment: bottle flakes or crushed materials after mineral water bottles are crushed
Support and Services:
We provide comprehensive technical support and service for the PP Strap Making Machine.
Our team of highly skilled engineers and technicians are available 24/7 to provide:
- Remote technical support
- On-site technical support
- Equipment installation and maintenance
- Product and process troubleshooting
- Spare parts supply and replacement
- Software updates and upgrades
FAQ:
A: What is the brand of PP packing belt? Is it certified?
Q:Packaging equipment brand Jiatuo, from China, has the government and other relevant departments certification.
B:Packaging equipment brand Jiatuo, from China, has the government and other relevant departments certification.
Q:The machine size can be customized according to the length and distance of the customer's factory.
C: What brand is the motor?
Q:Siemens
D:What is the brand of electrical appliance?
Q:Taiwan Yangming
E:What payment methods are supported?
Q:T/T LC
