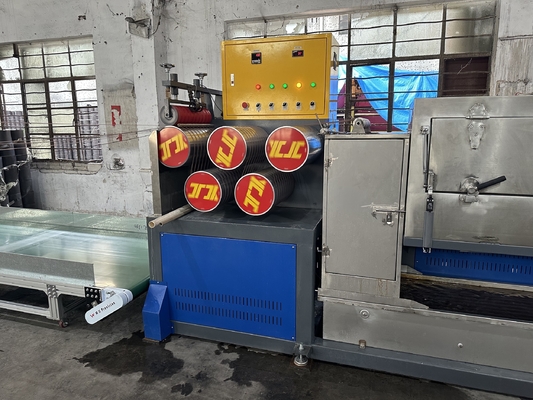

Siemens Motor PP Strap Making Machine 100KW Power Consumption 0.4-1.2mm Strap Thickness
Product Description of pp strapping band making machine:
The PP strapping tape production line is a high-end intelligent equipment with a PLC control system, a special screw for the extruder, a non-stop screen changer, etc. The PP strapping tapes produced are of consistent specifications and beautiful appearance, and are widely used in many industries.
1. Raw materials-----PP strapping equipment can produce plastic raw materials: recycled materials or PP polypropylene new materials to produce strapping tape;
2. Screw-----The equipment adopts high-precision high-quality screws, adopts well-known brands, and has unique parameter design. It has the advantages of large extrusion volume, good plasticization, high hardness and wear resistance; equipped with a quantitative extrusion system, the width and thickness of the produced belts are the same, the error range is small, and it meets the national strapping tape acceptance standards;
3. Automatic screen changer------Equipped with a non-stop automatic screen changer, the screen does not need to be stopped, and the efficiency is maximized. 4-net circulation large-area filtration does not require frequent screen changes.
PP strapping equipment parameters:
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Drying barrel (kg) |
100 |
150 |
200 |
200 |
200 |
200 |
| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |
Applications of pp strapping band making machine:
PP Strap Manufacturing Machine – JIATUO CHINA
1.PP strapping equipment produces plastic raw materials: recycled materials or mixed new materials can be used to produce strapping tapes, and calcium carbonate can be appropriately added according to customer conditions to reduce production costs, increase product profits, and break through market competitiveness.

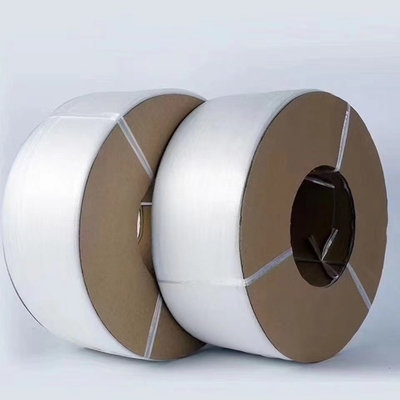

2. The 5-19mm PP strapping tape produced by the PP strapping equipment is suitable for various fully automatic unmanned strapping machines at home and abroad.
3. The PP strapping equipment has high output and low power consumption, and the finished product line speed can reach 220-300m/min
Support and Services:
- Installation and setup of the machine
- Diagnosis and troubleshooting of any technical issues
- Maintenance and repair of the machine
- Replacement of any defective parts
- Software updates and upgrades
