350kg/H PP Strap Making Machine For 5-19mm Polyprople Belt 5-19mm With SGS CE Certificate
Description of PP packing belt making machines, PP packing strap extrusion machine
PP packing strip is widely used in packing applications, it can replaced the steel strap for packing application, as its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.
Parameter of PP strap making machine
| Power supply |
380V, 50Hz, 3Phase (according to customer requirement) |
| Raw material |
PP material |
| Width of final product |
5-19mm |
| thickness of final product |
0.4-1.2mm |
| Max Capacity |
110-150kg/hour |
| Manpower |
2-3 persons/shift (fully-auto just need one) |
| Machine Dimension |
L (28m) ×W (2m) ×H (4m) |
| BRANDS |
| Motor |
Siemens |
| Gearbox |
Shenzhen Beiji |
| Contactor |
Taiwan Fotek |
| Temperature controller |
Schneider |
| Inverter |
INVT |

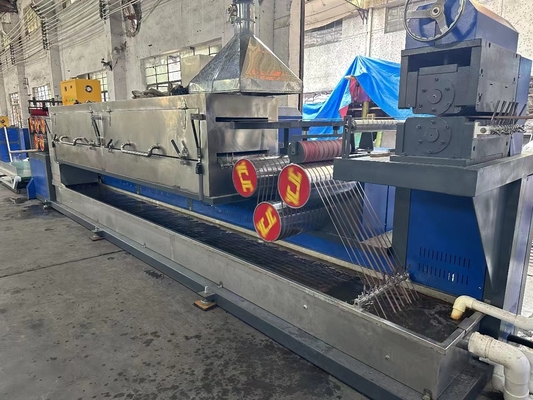

System Configuration of Output 2 Straps Production line
※ Vacuum feeder 1 set
※ Hopper dryer 1 set
※ Feeding machine 2 set
※ ¢90 Extruding Machine 1 set
※ Automatic Screen filter changer 1 set
※ Mould(1 mould for 2 output) 1 set
※ Water cooling tank system 1 set
※ The first haul-off device 1 set
※ Stretching oven 1 set
※ The second haul-off device 1 set
※ PLC electrical control system 1 set
※ Embossing machine 1 set
※ Forming oven 1 set
※ Cooling system 1 set
※ The third haul-off device 1 set
※ Double disk winder 2 set
Advantage of JIATUO PP packing belt making machines, PP packing strap extrusion machine
1. Five-roll traction system, the traction is stable, the equipment runs smoothly, the failure rate is reduced, and the
maintenance cost is reduced by 60%.
2. High-precision special embossing and pressing device, adjustable pressure, clear and beautiful embossing, improved product quality, comparable to Europe, America, Japan and South Korea.
3. Constant force winding system, unique design parameters, in line with high output, excellent tape winding effect, flat and beautiful section.
4. Wheel and shaft parts are made of high-strength alloy steel. The gea
Best Services
The guarantee period is 1 year and service is available lifelong.
Our expert will answer any inquiry within 24-48 hours and it will be solved as soon as possible.
Our company supplies the complete technical support documents and the relative drawings of the electric components written in Chinese and English.
Our company shall send enough technicians to the Buyer's company for installation, debugging, training and technology transfer till customers can operate independently and manufactures eligible product.
