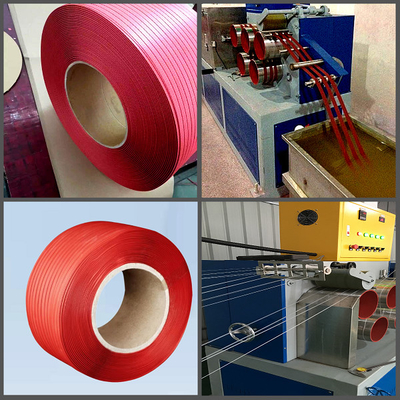

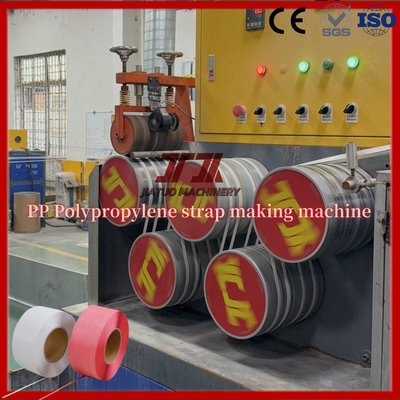

Screw Loader Fully Automatic PLC Control PP Strap Making Machine Packing Strap PP Strap Band Making Machinery

Screw Loader Fully Automatic PLC Control PP Strap Making Machine Packing Strap PP Strap Band Making Machinery
Screw Loader Fully Automatic PLC Control PP Strap Making Machine Packing Strap PP Strap Band Making Machinery
Screw Loader Fully Automatic PLC Control PP Strap Making Machine Packing Strap PP Strap Band Making Machinery Screw Loader Fully Automatic PLC Control PP Strap Making Machine Packing Strap PP Strap Band Making Machinery Screw Loader Fully Automatic PLC Control PP Strap Making Machine Packing Strap PP Strap Band Making Machinery Screw Loader Fully Automatic PLC Control PP Strap Making Machine Packing Strap PP Strap Band Making Machinery Screw Loader Fully Automatic PLC Control PP Strap Making Machine Packing Strap PP Strap Band Making Machinery Screw Loader Fully Automatic PLC Control PP Strap Making Machine Packing Strap PP Strap Band Making Machinery

Large Image :  Screw Loader Fully Automatic PLC Control PP Strap Making Machine Packing Strap PP Strap Band Making Machinery

Product Details:
Place of Origin: CHINA
Brand Name: JIATUO CHINA
Certification: IS CEO
Model Number: JTPP-100
Document: parameter details of PP Str...ne.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: plastic film
Delivery Time: 30-40days
Contact Now

Screw Loader Fully Automatic PLC Control PP Strap Making Machine Packing Strap PP Strap Band Making Machinery

Description
Trademark: JiaTuo China Power Consumption: 100KW
Motor: Siemens Strap Tension: Adjustable
Strap Thickness: 0.4-1.2mm Warranty: 1 Year
Screw Diameter (mm): 100mm Video Outgoing-inspection: Provided

Screw Loader Fully Automatic PLC Control PP Strap Making Machine Packing Strap PP Strap Band Making Machinery



Quick Detail Of PP Strap Making Machine



Specification Details
Name PP 1 to 4 strapping production line
Model Number JTPP-110
Applicable Raw Materials New PP particles, PP recycled materials, PP crushed materials
Number of Screws 1 Screw or double screw
Number of Extruded Belts 4
Width Range 5-19mm
Thickness Range 0.4-1.2mm
Production Capacity 200kg/h
Installation Size L38 × W2.0 × H4.0 (m)

Screw Loader Fully Automatic PLC Control PP Strap Making Machine Packing Strap PP Strap Band Making Machinery 0

Configuration Of PP Strapping Production Line



NO. Name QTY
1 Color Mixer 1 set
2 Vacuum feeder or screw loader feeder
(100% raw material use vacuum feeder machine;recycled material use screw loader feeder machine) customer choose one of it.		 1 set
3 Hopper dryer 1 set

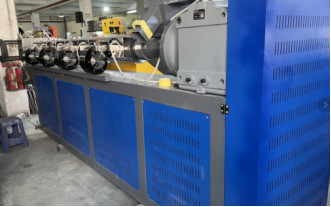

4 SJ single screw extruder 1 set
5 High speed Screen exchanger device 1 set
6 Molud 1 set
7 Water cooling tank 1 set

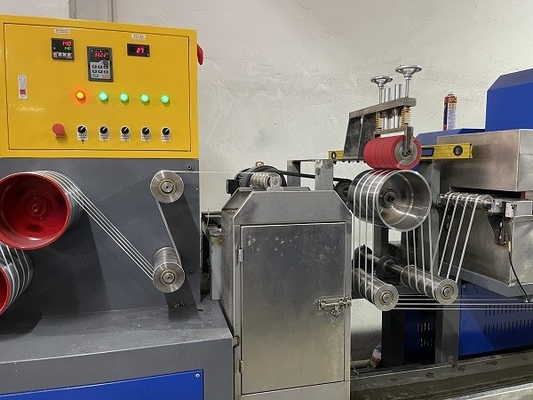

8 The first traction machine- 5 rollers 1 set
9 The first Stretch forming oven 1 set
10 The Second traction machine- 5 rollers 1 set
11 The second Stretch forming oven 1 set
12 The Third traction machine- 3 rollers 1 set
13 Embossing machine 1 set

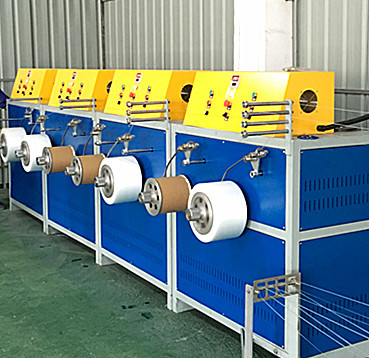

14 The Winder machine 1 set


Features Of PP Strap Extrusion Line



Solemnly declare: This machine has been improved by our company and has core technology. It is inconvenient to upload detailed pictures and videos. Please forgive us. Welcome to visit and inspect.The machine shall prevail in kind.



FAQ ABOUT PP STRAPPING BAND EXTRUSION LINE



1. For PP(polypropylene) strapping band extrusion line
* What about the output of PP strapping band extrusion line? 150kg/hr, 280kg/hr, 500kg/hr.
* What about the size of strap that the PP strap machine can make? Width: 5-25mm; Thickness: 0.35-1.0mm;
* What about the installation power of the PP strap machine? 135kw/155kw/195kw/439kw;

2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 200kg/hr, 400kg/hr, 600kg/hr, 800kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.35-1.2mm;
* What about the installation power of the PET strap machine? 215kw/285kw/352kw/900kw;

Screw Loader Fully Automatic PLC Control PP Strap Making Machine Packing Strap PP Strap Band Making Machinery 1
