Fast Strap Manufacture Equipment Core Outer Diameter 200-400mm Speed >250m/min
Product Description:

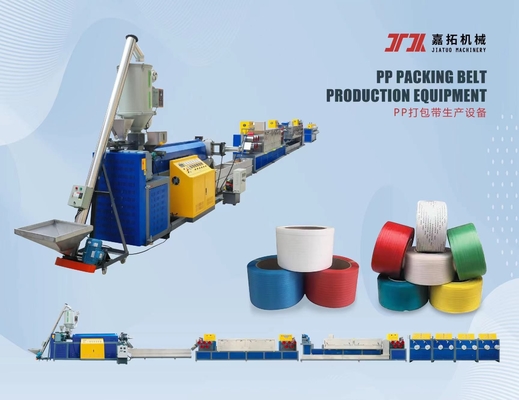

PP Strap Making Machine
pp strapping band making machine
pp strap production line
pp packing strap making machine
1.PP strapping equipment produces plastic raw materials: recycled materials or mixed new materials can be used to produce strapping tapes, and calcium carbonate can be appropriately added according to customer conditions to reduce production costs, increase product profits, and break through market competitiveness.

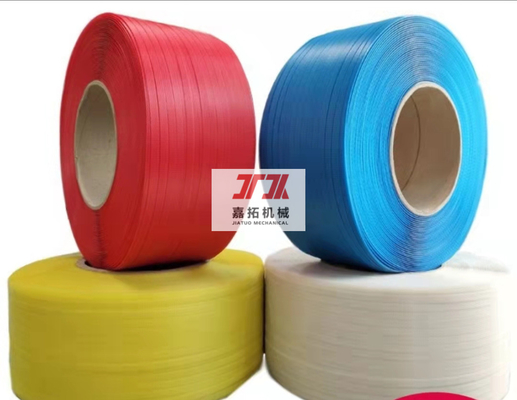

2. The 5-19mm PP strapping tape produced by the PP strapping equipment is suitable for various fully automatic unmanned strapping machines at home and abroad.
3. The PP strapping equipment has high output and low power consumption, and the finished product line speed can reach 220-300m/min.
Features of the oven:
1. There is a high-power heating tube inside the oven, and the hot air circulation method makes full use of heat energy to reduce power loss.
2. High-temperature resistant silicone seals keep the oven super tight
3. Special high-efficiency all-stainless steel electric heating tube, fast heating, long-lasting and durable
4. Reheating makes the PP strapping tape shrink in the oven, and the straightness of the strapping tape produced is more standardized and the shrinkage rate is smaller.

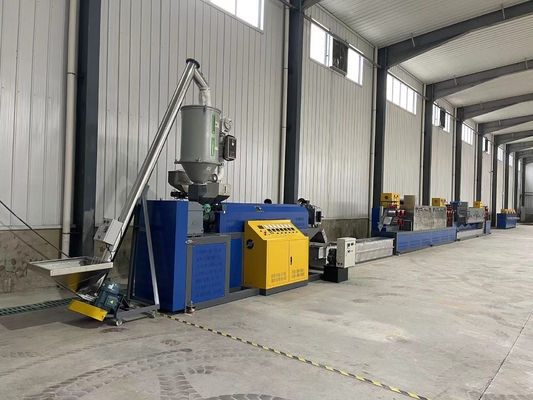

Process flow of PP packing belt production line
① Feeding →② stirring →③ pre-drying →④ melting and measuring extrusion →⑤ embryo (belt embryo) cooling and forming →⑥ oven preheating →⑦ primary stretching →⑧ secondary stretching →⑨ embossening → oven tempering and setting → cooling → finished product winding
Technical Parameters:
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Drying barrel (kg) |
100 |
150 |
200 |
200 |
200 |
200 |
| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |
Customization:
We have extensive experience in the production process of PP strapping production lines, so we look forward to communicating with you in more details.
Our delivery time: 30-40 days.
FAQ:
Q&A about PP Strap Making Machine
Q1: What is the brand name of the PP Strap Making Machine?
A1: The brand name of the PP Strap Making Machine is JIATUO CHINA.
Q2: What is the model number of the PP Strap Making Machine?
A2: The model number of the PP Strap Making Machine is JTPP.
Q3: Where is the PP Strap Making Machine made?
A3: The PP Strap Making Machine is made in China.
Q4: What is the certification of the PP Strap Making Machine?
A4: The certification of the PP Strap Making Machine is IS CEO.
Q5: What is the minimum order quantity for the PP Strap Making Machine?
A5: The minimum order quantity for the PP Strap Making Machine is 1 SET.
