Customized 5-19mm twin screw PP strapping production line PP strapping equipment for fully automatic strapping machine
Product Description:

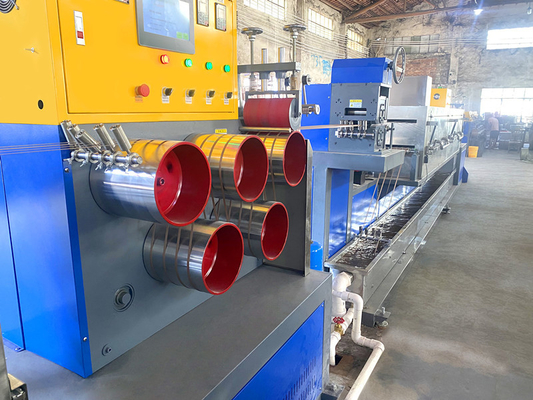

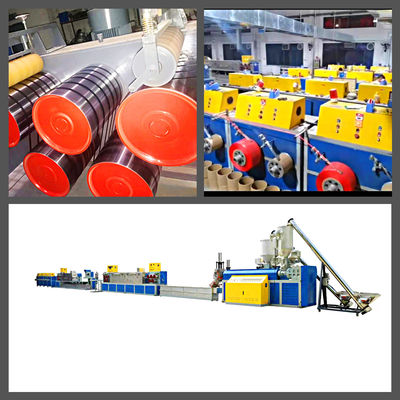

PP Strap Making Machine

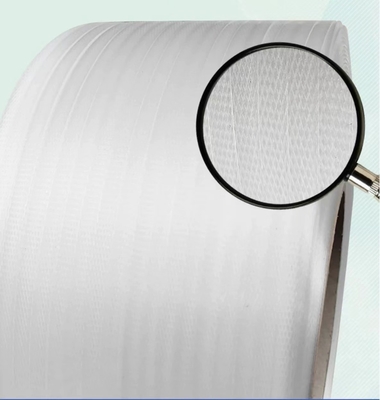

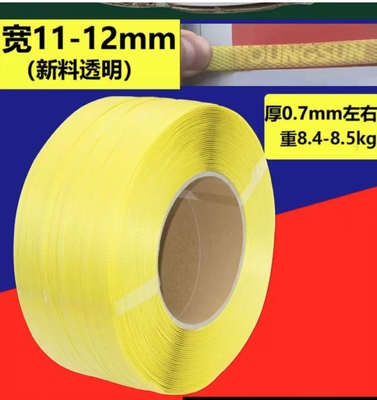

Main information of PP strapping tape:
Production speed: usually 200-300 m/min (high-speed equipment can reach more than 300 meters).
Band width/thickness range: width 5-19mm, thickness 0.3-1.2mm (customizable).
Raw material requirements: PP new material or recycled material.
Power consumption: The whole machine power is about 100kW (depending on the production capacity).
Extrusion----Extrusion capacity can be customized according to customer requirements, and can produce 2-12 strips.
Oven-----Energy-saving and environmentally friendly, constant temperature oven, high output, low power consumption.
Winding machine-----Can be equipped with semi-automatic winding machine & fully automatic winding machine according to customer requirements
Features of the oven:
1. There is a high-power heating tube inside the oven, and the hot air circulation method makes full use of heat energy to reduce power loss.
2. High-temperature resistant silicone seals keep the oven super tight
3. Special high-efficiency all-stainless steel electric heating tube, fast heating, long-lasting and durable
4. Reheating makes the PP strapping tape shrink in the oven, and the straightness of the strapping tape produced is more standardized and the shrinkage rate is smaller.
Technical Parameters:
| Name |
PP Strap Making Machine |
|
Model
|
JT-PP |
|
Screw
|
110*3300mm |
|
Host inverter
|
37KW |
|
Main motor
|
37KW |
|
Number of tapes
|
4 |
|
Winder
|
Manual/automatic
|
| Extrusion Parameters |
200-600KG/H |
|
container
|
40GP*2PCS |
Features of embossing wheel:
1. The embossing wheel is nitrided and heat-treated to achieve a surface hardness of 60 degrees, which is strong and durable. The surface texture of the strapping tape pressed out by this embossing machine is clear and rough enough, and the automatic strapping machine uses strong belt feeding.
2. The upper and lower flower wheels of the embossing machine are equipped with synchronous gears to ensure synchronous rotation of the upper and lower wheels, ensuring that the flower spinning on both sides of the strapping tape is completely consistent, increasing the beauty and transparency of the strapping tape.
3. When assembling the upper and lower flower wheels, a fixed gap is left to prevent collision, which extends the service life of the flower wheels
About after-sales service:
Our PP strapping equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PP strapping equipment.
2. Analysis of finished product manufacturing costs of PP strapping equipment.
3. Analysis of raw materials used in PP strapping equipment.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PP strapping equipment.
2. Installation, commissioning and training of PP strapping equipment.
3. Repair service of PP strapping equipment.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
8. Training and technical consultation
FAQ:
Q: What is the Brand Name of the PP Strap Making Machine?
A: The Brand Name of the PP Strap Making Machine is JIATUO CHINA.
Q: What is the Model Number of the PP Strap Making Machine?
A: The Model Number of the PP Strap Making Machine is JTPP.
Q: What is the Place of Origin of the PP Strap Making Machine?
A: The Place of Origin of the PP Strap Making Machine is CHINA.
Q: What is the Certification of the PP Strap Making Machine?
A: The Certification of the PP Strap Making Machine is IS CEO.
Q: What is the Minimum Order Quantity of the PP Strap Making Machine?
A: The Minimum Order Quantity of the PP Strap Making Machine is 1 SET.
Q: What is the Price of the PP Strap Making Machine?
A: The Price of the PP Strap Making Machine is Negotiable.
Q: What is the Packaging Details of the PP Strap Making Machine?
A: The Packaging Details of the PP Strap Making Machine is plastic film.
Q: What is the Delivery Time of the PP Strap Making Machine?
A: The Delivery Time of the PP Strap Making Machine is 30-40days.
