PP Pet Strap Machine PP Pet Strap Extruder Machine Pet Strap Making Machine
Quick Detail Of PP strap production line
PP strap production line is used to produce mechanical or manual bands with 100% PP recycled granules as materials, if raw materials, it will be better. This kind of band is widely used in the packing of kinds of fields such as mines, general merchandise, weaving, electrical equipment, apparatus, architecture, medicine, etc.
1. Raw materials-----The production of plastic raw materials can be made of PP recycled materials or mixed new materials to produce strapping tapes. Calcium carbonate can also be appropriately added according to customer conditions to reduce production costs, increase product profits, and break through market competitiveness.
2. Strapping machine------The various specifications of the strapping tapes produced can be used for various fully automatic unmanned strapping machines at home and abroad.
3. Line speed-------High output, the finished product line speed can reach 260-350m/min.
4. Screw---------High-precision high-quality screws, using well-known brands, unique parameter design, with the advantages of large extrusion volume, good plasticization, high hardness, and wear resistance.
5. Mould--------Foreign quality CNC machine cutting, high-precision die parts, so that the product molding quality is stable, the thickness error range is less than the national strapping tape acceptance standard.
6. Traction system-------Unique five-roller traction system, stable traction, stable equipment operation, reduced failure rate, and reduced later maintenance costs by more than 80%.
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Drying barrel (kg) |
100 |
150 |
200 |
200 |
200 |
200 |
| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |
Features Of Plastic PP Extrusion Line

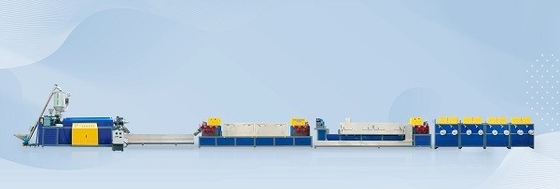

Process flow of PP packing belt production line
① Feeding →② stirring →③ pre-drying →④ melting and measuring extrusion →⑤ embryo (belt embryo) cooling and forming →⑥ oven preheating →⑦ primary stretching →⑧ secondary stretching →⑨ embossening → oven tempering and setting → cooling → finished product winding
pp strapping band making machine
PP strapping band making machine
pp strap manufacturing machine
pp strapping roll manufacturing machine
FQA:
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping tape??
A: L:36 M.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
Q:What does the wrapping machine part of the PP strapping equipment look like?
A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
