PP strapping production line: width: 5-19mm, thickness: 0.3-1.2mm.
Quick Detail Of pp strapping band making machine:
PP strap production line is used to produce mechanical or manual bands with 100% PP recycled granules as materials, if raw materials, it will be better. This kind of band is widely used in the packing of kinds of fields such as mines, general merchandise, weaving, electrical equipment, apparatus, architecture, medicine, etc.
The whole machine of the PP strapping production line adopts a PLC control system, a PLC touch screen control system, which replaces the potentiometer to control the speed regulation, can memorize the production parameters, and is more convenient to operate. PLC touch screen control system, which replaces the potentiometer to control the speed regulation, can memorize the production parameters, and is more convenient to operate.
PP strapping tape equipment is equipped with Automatic wrapping machine & semi-automatic wrapping machine
Specification Of pp strapping band making machine
| Molde |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Drying barrel (kg) |
100 |
150 |
200 |
200 |
200 |
200 |
| Screen Changer |
Automatic/Manua |
| Winding machine |
Automatic winding machine / Semi-automatic winding machine |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |
Features Of pp strapping band making machine
The PP packaging tape production line can use recycled materials or mixed new materials to produce packaging tapes. It can also add other raw materials appropriately according to customer conditions to increase product profits and break through market competitiveness.

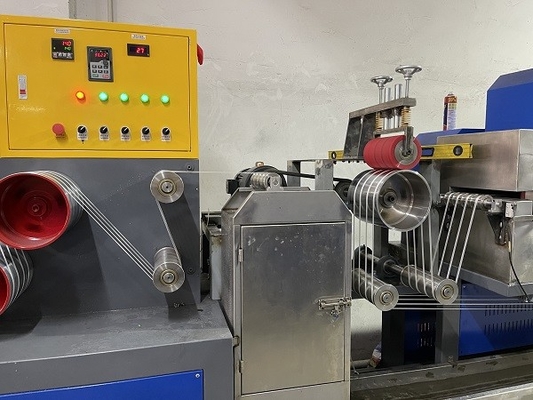

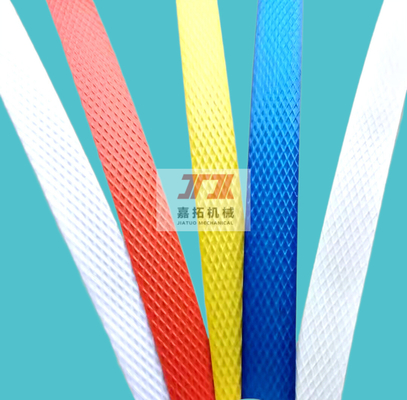

Embossing wheel-------High-precision embossing wheel, clear embossing, adjustable pressure, making the strapping more beautiful.Wrapping machine--------Constant force winding system, unique design correction device, neat winding, flat and beautiful surface.Screen Changer--------- Equipped with non-stop automatic screen changer, screen change without stopping, maximize efficiency.
After-sales service:
1.Water and electricity circuits of PP belt making machine, circuit drawings, etc.
2.Installation, commissioning and training of PP belt making machine.
3.Maintenance service of PP belt making machine.
4.Regular maintenance and repair
5.Troubleshooting and diagnosis
6.Software updates and upgrades
7.Spare parts and accessories
8.Training and technical advice
