CE ISO Plastic PET PP Strap Making Machine Extruding Production Line
Plastic pp pet strapping band production line/extrusion line/ pet packing strap making machine
Quick Detail Of PP Strap Making Machine
PP strap production line is used to produce mechanical or manual bands with 100% PP recycled granules as materials, if raw materials, it will be better. This kind of band is widely used in the packing of kinds of fields such as mines, general merchandise, weaving, electrical equipment, apparatus, architecture, medicine, etc.
Raw materials-----The production of plastic raw materials can be made of PP recycled materials or mixed new materials to produce strapping tapes. Calcium carbonate can also be appropriately added according to customer conditions to reduce production costs, increase product profits, and break through market competitiveness.
Strapping machine------The various specifications of the strapping tapes produced can be used for various fully automatic unmanned strapping machines at home and abroad.
Line speed-------High output, the finished product line speed can reach 260-350m/min.
Specification Of PP Strap Production Line
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Drying barrel (kg) |
100 |
150 |
200 |
200 |
200 |
200 |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |

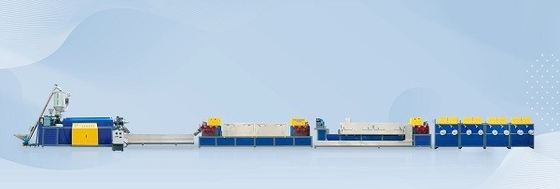

PP strapping production line process flow
① Loading → ② Mixing raw materials → ③ Pre-drying raw materials → ④ Melting and metering raw materials for extrusion → ⑤ Cooling and forming of raw materials (strip raw materials) → ⑥ Preheating the oven → ⑦ First stretching → ⑧ Second stretching → ⑨ Embossing → ⑩ Oven tempering and shaping → ⑪ Cooling → ⑫ Finished product winding
Features Of Plastic PP Extrusion Line
Features of the oven:
1. There is a high-power heating tube inside the oven, and the hot air circulation method makes full use of heat energy to reduce power loss.
2. High-temperature resistant silicone seals keep the oven super tight
3. Special high-efficiency all-stainless steel electric heating tube, fast heating, long-lasting and durable
4. Reheating makes the PP strapping tape shrink in the oven, and the straightness of the strapping tape produced is more standardized and the shrinkage rate is smaller.
FAQ
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:Can the PP strapping production equipment be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
