Fully Automatic 80kw PP Strap Making Machine 6 Lines Production
PP Strap making machine of Application:
This is a high-speed intelligent PP plastic packaging belt production equipment, the machine uses a special extrusion screw, unique extrusion parameters design, screw has a unique separation and mixing effect, to ensure the uniform plasticization of raw materials.
This is an energy-saving and environmentally friendly PP plastic packaging belt production equipment, non-toxic and tasteless, safe production.
This is a PLC controlled automatic PP plastic packaging belt production equipment, can be matched: semi-automatic winding machine or automatic winding machine, winding neatly, winding flat.
The reducer adopts a listed brand (Guomao)
The motor adopts a Sino-foreign joint venture brand (Siemens)
The four-net cycle screen changer is used to filter impurities without stopping the machine.
PP strapping tape production line
PP strapping tape production line
PP strapping tape equipment
PP double output making machine of Advantages:
PP packing tape embossing pattern can be customized:
1.PP belt making machine can produce width: 5-19mm packing belt according to customer requirements.
2.PP belt making machine can be customized according to customer requirements of different types of patterns.
3.PP belt making machine can be customized according to customer requirements of different lines of patterns,
thick lines, fine lines can be customized.
4.PP belt making machine can be based on customer pictures, computer analysis, completely 100% consistent.
5.PP packing belt produced by PP belt making machine has clear grain and consistent upper and lower pattern.
|
1
|
Materials
|
Polypropylene PP raw material pellets, recycled pellets.
|
|
2
|
Product
|
PP strap (1 mould for 2 straps)
|
|
3
|
Capacity
|
280-600kg/h
|
|
4
|
Total install power
|
80kw, (actual power consumption is 40-50%)
|
|
5
|
Strap width
|
5mm-19 mm
|
|
6
|
Thickness
|
0.4 mm-1.2 mm
|
|
7
|
Manpower
|
2-3person/shift
|
|
8
|
Workshop required
|
L (36m) ×W (2m) ×H (4m)
|
|
9
|
Cooling water
|
≤20℃,≥0.3Mpa, 5-8Ton/hr
|
|
10
|
Compressed air
|
0.5-0.8Mpa
|
|
11
|
Power source
|
380V, 50Hz, 3Phase (according to customer requirement)
|
|
12
|
Electric components
|
Schneider
|
|
13
|
Inverter
|
INVT
|
|
14
|
Switchef
|
Fotek
|
|
15
|
Motor power
|
Siemens
|
|
16
|
Machine frame
|
100*100*2.5 mm(GB quadrate pipe)
|

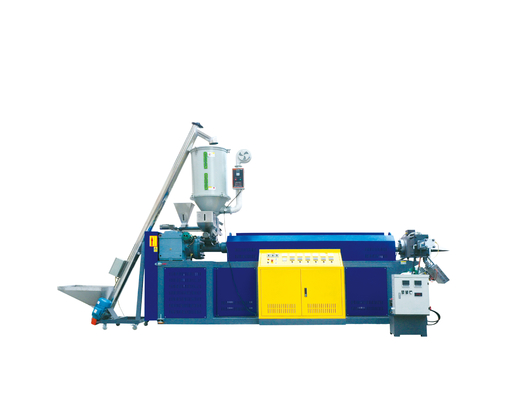

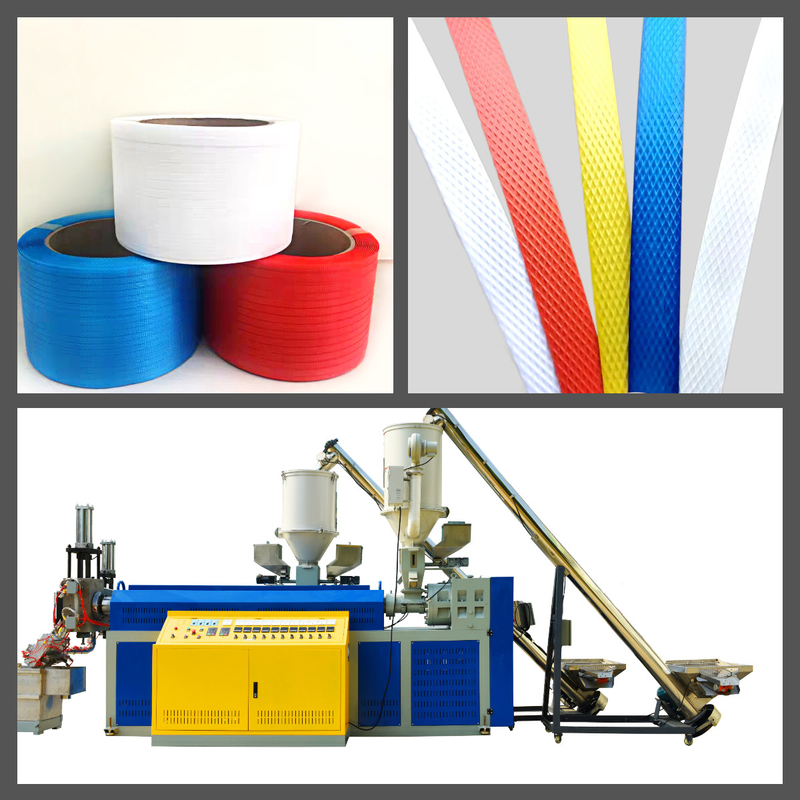

Pictures of the machine:
Process flow of PP strap making machine:
①Material→②Stirring raw material→③Pre crystallization drying→④Extruding→⑤Cooling→⑥Oven preheating→⑦Primary stretching→⑧Secondary stretching→⑨Embossing→⑩Hot forming→⑪Cooling→⑫Winding(finished product)
FAQ:
Q: Why I choose your company?
A: 1.We are one of the leading manufacturers of packing materials and related machinery .
2.Our company has made the PP/PET packing belt making machine 20 years with strong experience and advanced technique
3.Best Quality & Best Service with Competitive price.
4.We have Professional technical team.
Q: How can I make sure the machine running good in my plants?
A: first we will have a instruction of the installing and staff training online,if you need assistance in installing and staff training, we can also send engineers to service oversea and solve all problems.
Q: How long is the guarantee of your machine?
A: 1 year, Main parts is made of high tool steel by special quenching treatment, with high corrosion resistance and wear resistance.
