Plastic Steel Strap Making Machine (3 Lines) 300-360KGS/H Pre-Drying Tower 4000L with ISO

Plastic Steel Strap Making Machine (3 Lines) 300-360KGS/H Pre-Drying Tower 4000L with ISO
Plastic Steel Strap Making Machine (3 Lines) 300-360KGS/H Pre-Drying Tower 4000L with ISO
Plastic Steel Strap Making Machine (3 Lines) 300-360KGS/H Pre-Drying Tower 4000L with ISO Plastic Steel Strap Making Machine (3 Lines) 300-360KGS/H Pre-Drying Tower 4000L with ISO Plastic Steel Strap Making Machine (3 Lines) 300-360KGS/H Pre-Drying Tower 4000L with ISO Plastic Steel Strap Making Machine (3 Lines) 300-360KGS/H Pre-Drying Tower 4000L with ISO Plastic Steel Strap Making Machine (3 Lines) 300-360KGS/H Pre-Drying Tower 4000L with ISO Plastic Steel Strap Making Machine (3 Lines) 300-360KGS/H Pre-Drying Tower 4000L with ISO

Large Image :  Plastic Steel Strap Making Machine (3 Lines) 300-360KGS/H Pre-Drying Tower 4000L with ISO

Product Details:
Place of Origin: CHINA
Brand Name: JIATUO CHINA
Certification: ISO/ CE
Model Number: JTPET-110
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plastic film
Delivery Time: 50-60DAYS
Payment Terms: L/C, T/T

Plastic Steel Strap Making Machine (3 Lines) 300-360KGS/H Pre-Drying Tower 4000L with ISO

Description
Plastic Processed: PET Screw Diameter (mm): 110mm
Production Capacity: 300-360kgs/H Warranty: 1 Years
Number Of Extruded Strap: 3 Application Scope: Brickyard, Metal, Steel, Aluminum,brewery
Screen Changer: Double Cylinder / Single Cylinder Thickness Range: 0.4-1.2mm
Width Range: 9-32mm Applicable Raw Materials: Bottle Flake Material, 100% Broken Material
Highlight:

4000L Plastic Strap Making Machine

,

110mm Screw Plastic Strap Making Machine

,

4000L Strapping Band Making Machine

Plastic Steel Strap Making Machine (3 Lines) 300-360KGS/H Pre-Drying Tower 4000L with ISO



Parameters of PET 1 to 3 production machine:



Name PET plastic steel belt production line one out of three
Applicable raw materials Bottle flake material, 100% broken material
Number of screws Single Screw
Screw size Ø110
Number of extruded belts 3
Width range 9-32mm
Thickness range 0.4-1.2mm
Production capacity 300-350kg/h (according to the weight of each meter)
screen changer Double cylinder / single cylinder

Processing Flow of PET strap extrusion line


Auto loader→Crystallizing and drying system →Extruder→Mould→ Cooling Tank→Preheating unitOven→ Stretching unitEmbossing machine Tensioning heat calibrator unitHaul-off machine →Winder

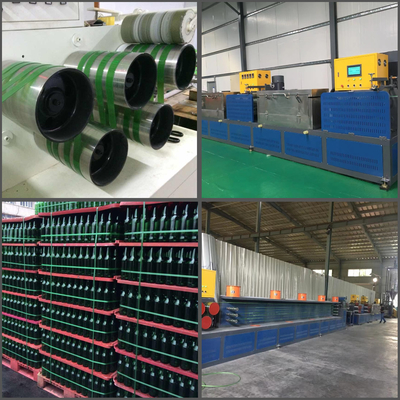

Plastic steel strap finished products

As you see that, the plastic steel strapping can be different colors different patterns, but also can be printed according to your requirements of the company logo or any logo what you want to show, different colors depending on the color master you use.



Plastic Steel Strap Making Machine (3 Lines) 300-360KGS/H Pre-Drying Tower 4000L with ISO 0Plastic Steel Strap Making Machine (3 Lines) 300-360KGS/H Pre-Drying Tower 4000L with ISO 1


Application for plastic steel strapping:



As a new type of strapping product with strong tensile force and corrosion resistance, PET strapping belt is gradually replacing traditional stainless steel strapping products with overwhelming advantages in performance and price. Therefore, the potential of PET strapping production line as a small and medium-sized investment is huge.It is widely used in steel, aluminum, chemical fiber, cotton spinning, tobacco, paper, metal can making and other industries.



Plastic Steel Strap Making Machine (3 Lines) 300-360KGS/H Pre-Drying Tower 4000L with ISO 2Plastic Steel Strap Making Machine (3 Lines) 300-360KGS/H Pre-Drying Tower 4000L with ISO 3


Advantages for PET Making Machine:



  • Constant force rewinding system, unique design parameters, in line with high output, excellent reeling effect, flat and beautiful sides on both sides
  • High and stable production efficiency, assuming you want to make 20g/m of strapping, you can produce 360kg/H on our PET strap making machine.
  • It can produced entirely with 100% bottle flake material and packing strap broken material, he quality of the finished product is comparable to that of brand new material.
  • The equipment adopts the unique twice stretching process, the finished product has good steel, stable width, and improved tensile strength of the finished product.

Plastic Steel Strap Making Machine (3 Lines) 300-360KGS/H Pre-Drying Tower 4000L with ISO 4


About the making machine FAQ


1.Are you manufacturer or trading company?
We are manufacturer. and we have our owner trade company.


2.Why choose us?
We have 30 years experience for producing machine.We can arrange for you to visit our local customer's factory if you are come to China.


3.Delivery time: 30-40 days.


4.Payment terms: 30% of total amount should be paid by T/T as down payment, the balance (70% of total amount) should be paid before delivery by T/T or irrevocable L/C(at sight).


5.After-sales service: Free Spare Parts; Field installation, commissioning and training ; Field maintenance and repair service ; Video/Online technical support.



Plastic Steel Strap Making Machine (3 Lines) 300-360KGS/H Pre-Drying Tower 4000L with ISO 5
