Width 5mm 19mm PP Packing Belt Machine Double Output Recycled Material
PP Strap Double Output Packing Belt Making Machine 280kgs/H recycled material
PP Strap making machine of Application:
-
This PP-2 Straps Packing Belt Making Machine can produce different width and thickness pp straps according to the requirement of the clients.
-
It can using the 100% recycled material or mixed the new and recycled material together, which can reduce the product cost and get a good profit.
-
It mainly suitable for pp belts used in light goods
PP double output making machine of Advantages:
-
Use the PLC computer control system to memory the last parameter; it has Chiese and English versions to using
-
Good extension(such as the width of 5mm and the thickness of 0.45mm can arrive at 50KGS pull)
-
High temperature resistant
-
Use less power to save costs
-
It only takes two person to operate that can saving labor
-
High production capability (It is the best important advantage for you reference)
-
The errors of the width and thickness over the standard level of industry
|
1
|
Materials
|
Polypropylene PP raw material pellets, recycled pellets.
|
|
2
|
Product
|
PP strap (1 mould for 2 straps)
|
|
3
|
Capacity
|
280kg/h
|
|
4
|
Total install power
|
80kw, (actual power consumption is 40-50%)
|
|
5
|
Strap width
|
5mm-19 mm
|
|
6
|
Thickness
|
0.4 mm-1.2 mm
|
|
7
|
Manpower
|
2person/shift
|
|
8
|
Workshop required
|
L (28m) ×W (2m) ×H (4m)
|
|
9
|
Cooling water
|
≤20℃,≥0.3Mpa, 5-8Ton/hr
|
|
10
|
Compressed air
|
0.5-0.8Mpa
|
|
11
|
Power source
|
380V, 50Hz, 3Phase (according to customer requirement)
|
|
12
|
Electric components
|
Schneider
|
|
13
|
Inverter
|
INVT
|
|
14
|
Switchef
|
Fotek
|
|
15
|
Motor power
|
Siemens
|
|
16
|
Machine frame
|
100*100*2.5 mm(GB quadrate pipe)
|

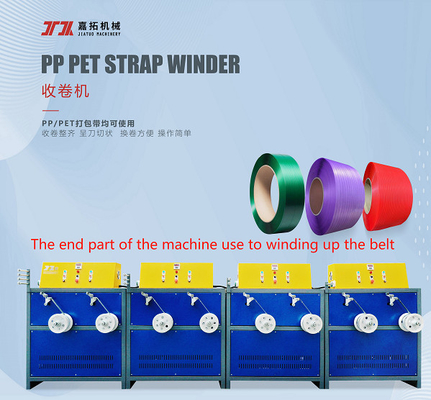

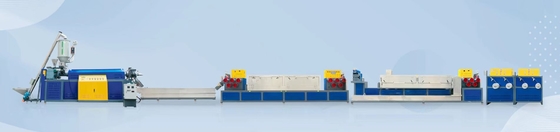

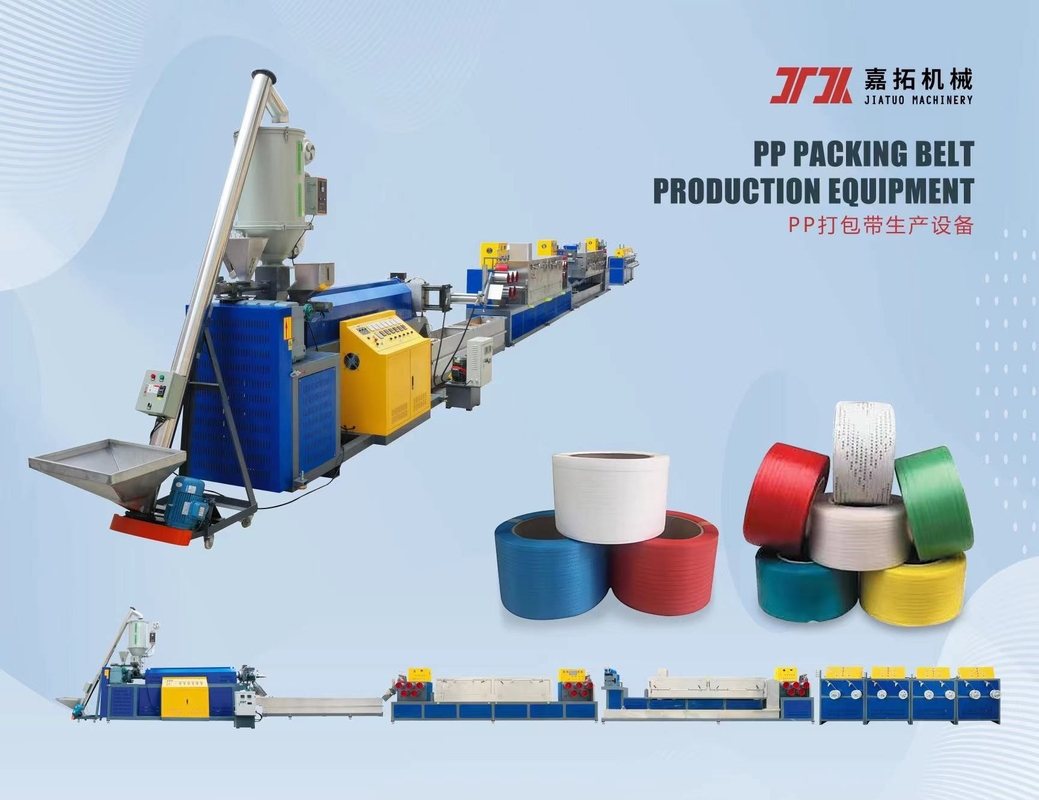

Pictures of the machine:
Process flow of PP strap making machine:
①Material→②Stirring raw material→③Pre crystallization drying→④Extruding→⑤Cooling→⑥Oven preheating→⑦Primary stretching→⑧Secondary stretching→⑨Embossing→⑩Hot forming→⑪Cooling→⑫Winding(finished product)
Certifications:
Welcome to visit us:
Our factory address:101A, 1st Floor, Building 20, Second Industrial Zone, Shapuwei Community, Songgang Street, Baoan District, Shenzhen China
FAQ:
Q: Why I choose your company?
A: 1.We are one of the leading manufacturers of packing materials and related machinery .
2.Our company has made the PP/PET packing belt making machine 20 years with strong experience and advanced technique
3.Best Quality & Best Service with Competitive price.
4.We have Professional technical team.
Q: How can I make sure the machine running good in my plants?
A: first we will have a instruction of the installing and staff training online,if you need assistance in installing and staff training, we can also send engineers to service oversea and solve all problems.
Q: How long is the guarantee of your machine?
A: 1 year, Main parts is made of high tool steel by special quenching treatment, with high corrosion resistance and wear resistance.
