Plastic Machinery Single Screw PP Strapping Production Line PP Strapping Machine with Automatic Screen Changer
DESCRIPTION OF PP STRAP MAKING MACHINE
Advantages of PP tape making machine:
Easy to operate----The semi-automatic winding machine is simple in design and easy to operate. Workers can learn quickly without extensive training.
Small investment---PP tape making machine is energy-saving and environmentally friendly. It can be produced using PP polypropylene recycled materials and has low manufacturing costs.
Advanced technology-----PP tape making machine has advanced technology and uses high-precision accessories. The PP tape produced is suitable for automatic baling machines and semi-automatic baling machines.
PLC control----PP tape making machine adopts PLC control system, which can save production parameters, simple debugging, stable operation, and clear data at a glance.
Winding machine---PP tape making machine can use automatic winding machine, automatic wiring, automatic roll change, automatic PE film wrapping, reduce labor and improve production efficiency
EXTRUSION PARAMETERS TABLE
| Model |
PP-2 |
PP-4 |
PP-6 |
PP-8 |
PP-10 |
PP-12 |
| Raw material |
100%PP polypropylene new material/recycled material |
| Number of tapes |
2 |
4 |
6 |
8 |
10 |
12 |
| Width(mm) |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
5-19 |
| Thickness(mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Line speed(m/min) |
≧260-300 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
| Screw Model |
90 |
110 |
125 |
135 |
135 |
135 |
| Reducer model |
200 |
220 |
250 |
280 |
280 |
280 |
| Winding machine |
Automatic winding machine /Semi-automatic winding machine |
| Screen Changer |
Automatic/Manua |
| Production capacity 24H |
2.5-3T |
6-7T |
8-9T |
10-11T |
12-13T |
13--14T |

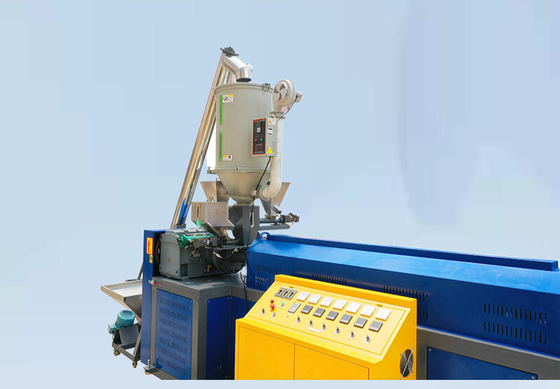

1. Extruder part:
Motor adopts Siemens, frequency conversion and energy saving Die head part: the die head is equipped with a heating element to ensure that the temperature of the melt is always the same
Automatic feeding and drying storage system: intelligent and efficient, effectively saving manpower and electricity costs
Liftable foot bracket: The whole production line uses the liftable foot bracket, which effectively solves the problem of uneven height of the customer's factory building and ensures the straightness of the strapping
SUS304 stainless steel sink: thickness 2.0T, durable and non-corrosive
Innovative use of vacuum water absorption and water removal device to effectively remove water before the strapping enters the oven while ensuring the cleanliness of the workshop
2. Extended part:
Enlarged 5 rolls of cast aluminum to speed up the cooling of the strapping, great adhesion and no slippage of the strapping
The protective net is used on the back of the 5 rollers, in addition to being beautiful and generous, it is more effective to provide safety protection for the staff
Energy-saving constant temperature oven: using hot air circulation system, made of insulation materials, effectively guaranteeing the quality of the strapping
3. Embossing setting unit:
Energy-saving constant temperature oven: Material: SKD-11; Embossing method: timing belt.(Different patterns can be customized according to customer requirements.)

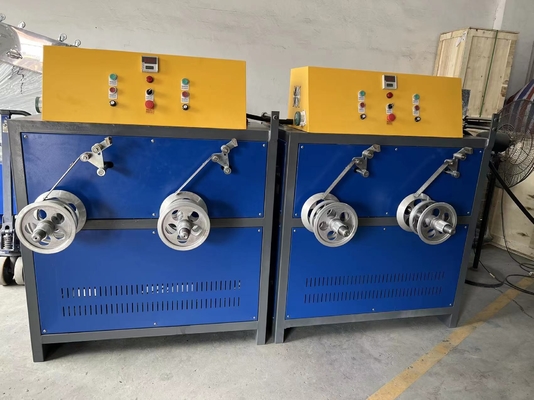

PP standard double-station winding machine, applicable width for winding: 5-19mm, can be customized for weight or meter
FAQ
Q1:Are you a trading company or a factory?
A1:We are a factory,can give u best service.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1 years.
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How about the spare parts?
A4:After we deal down all the things , we will offer you a spare parts list for your reference.
Q5: What is the payment term?
A5: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)
Q6: How about after service?
A6: We can offer 12 months free warranty since the machinery arrived at your factory. We also offer space parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.
