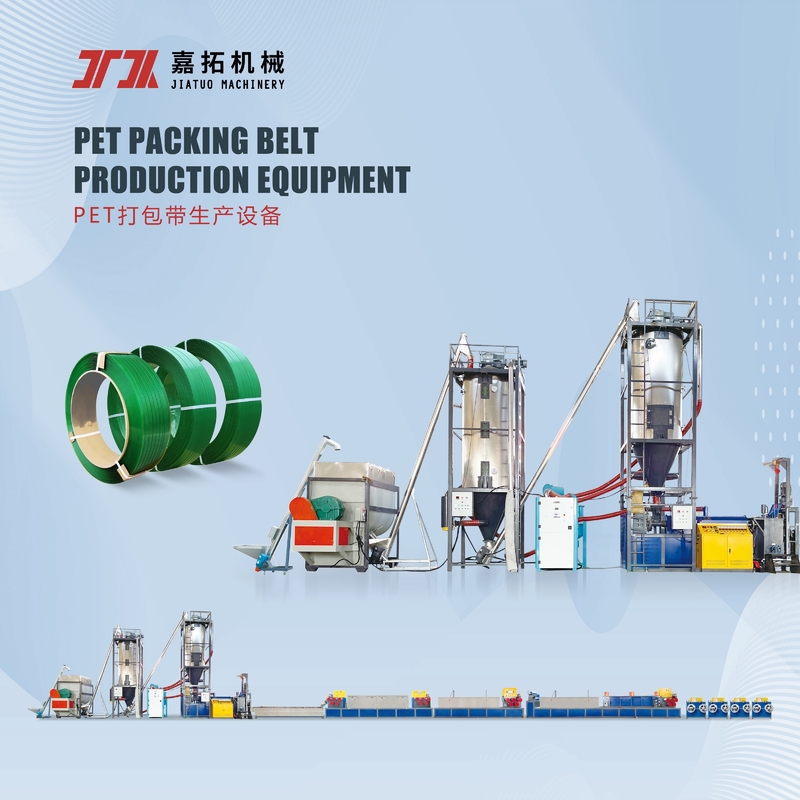

12mm Width PET Strap Manufacturing Machine Line 45*2.0*7.0M

12mm Width PET Strap Manufacturing Machine Line 45*2.0*7.0M
12mm Width PET Strap Manufacturing Machine Line 45*2.0*7.0M 12mm Width PET Strap Manufacturing Machine Line 45*2.0*7.0M

Large Image :  12mm Width PET Strap Manufacturing Machine Line 45*2.0*7.0M

Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JTPET-90
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50~55 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 50 set/month

12mm Width PET Strap Manufacturing Machine Line 45*2.0*7.0M

Description
Product Type: PET Strap Making Machine Raw Material: PET Flakes Or 100% Recycled Material
PET Thickness Range: 0.6-12mm PET Strap Width: 9-32mm
Capacity: 200kg/h Driven Type: Electric
Voltage: According To Customer's Factory Motor: Siemens
Product Color: Green/Pink/yellow/black Application: Packaged Material
After-sales Service Provided: Video Technical Support, Online Support Warranty: 1 Year
Highlight:

12mm Width PET Strap Manufacturing Machine

,

pet strap manufacturing machine

,

45*2.0*7.0M pet strap line

12mm Width Plastic PET Strap Extruder Production Line Packing Belt Making Machine


PRODUCT DESCRIPTION

PET PP packing strap production is a new model of packing material machine, applying to advanced technology overseas. PET packing strap is the best replacement for old packing material, and is accepted in word packing industry. Nowdays, the PET PP packing strap hasebeen widly used in many industry such as paper steel, chemical fiber, cotton, printing wood and so on.

Descripition:

This machine is mainly used to make PET strap ,PP packing strap.

Our machines adopts the PLC control to realsize the whole line auotmatic production.

Using the melting pump and pressure sensor ensure the production stable and strap quality control.

The raw material can be 100% recycled pet flakes from the waste pet bottles,or virgin material or mixed with each other.


PET Strap Production Line Machine List

NO. Item Specification
1 Power According to customer's factory voltage
2 Material PET raw material or 100% PET bottle flakes recycled
3 Capacity

PETJT90:200kg/h

PETJT100:250kg/h

PETJT125:350kg/h

4 Product size

Width:9-32mm

Thickness:0.6-12mm

6 Mid-height of extruder 7000mm
7 Installation power

PETJT90:200KW

PETJT100:250KW

PETJT125:300KW

8 Humidity <85%
9 Temperature 0-40 degree
10 Cooling tower capacity 30T/H or 50T/H
11 Installation Dimensions

PETJT90:45*2.0*7.0M

PETJT100:45*2.0*7.0M

PETJT125:60*3.0*8.0M

12 Product color Green/Black/Pink/Yellow
13 Factory dimension

35m*(3~6)m*(4~6)m

45m*(3~6)m*(4~6)m

If your factory not big enough,please contact with us,our engineer can according to your size to design

12mm Width PET Strap Manufacturing Machine Line 45*2.0*7.0M 0
Advantages of PET strap

  • Use 100% Recycled PET/PP Flakes to reduce the cost.
  • Good dehumidifer drying system(Crystallization system optional ) to ensure the material equal dryer to produce high quality strapping.
  • Special design hot forming tensile tank to make good forming ,equal width,straight strap.

Features of PET packing strap production line:

  • 1. Better tensile strength: the PET strap production line has the tensile strength of the steel belt, and the ductility is good, and the anti-impact performance is better. It is not easy to break, and it can ensure the safety of product transportation.

  • 2. Small extension: Although PET strap is one kind of plastics, its extension of change is very small, its elongation is only 1/ 6 of polypropylene, it can maintain tension force, after the packing make the expansion no longer change.

  • 3. Strong temperature resistance: the experiment proved that the melting point of PET packing belt at about 260 ℃, can be used under the environment of 120 ℃ for a long time not to distort,it has a good stability.

  • 4. Good economic benefit: the density of PET packaging belt is 1.30 ~ 1.38 g/cm3, which is only 1/6 of the steel belt density (7.8 g/cm3), which is equivalent to the length of the 6-ton steel belt, and the price of the same unit length is relatively low.

  • 5. Environmentally friendly: the steel belt will rust due to exposure to the air, and the rust is highly permeable to the packaging. PET packing tape is beautiful and not rusted, but avoid unnecessary worry. It can also be recycled.

  • 6. Good flexibility and safe operation: the PET packing strip has no sharp edge with steel belt, it will not scratch the package, and it will not hurt the hand. You don’t need a special tool when you cut it, even if it’s tight, it doesn’t hurt when you cut it.

  • 7.High quality packaging ideal products: PET packaging with all kinds of bright colors, shiny, high quality, the most ideal packaging products of high-end packaging

12mm Width PET Strap Manufacturing Machine Line 45*2.0*7.0M 1

12mm Width PET Strap Manufacturing Machine Line 45*2.0*7.0M 2
