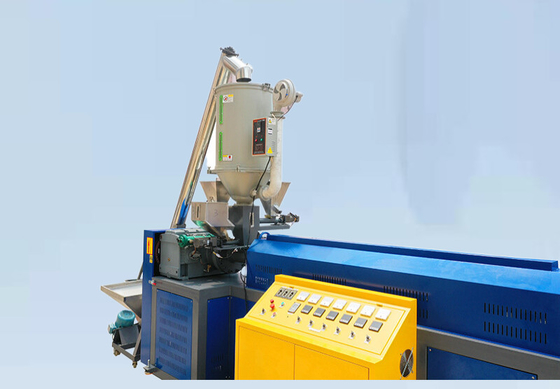

Customized 5-15mm PP strapping equipment PP strapping production line for automatic screen changer

Name: Customized 5-15mm PP strapping equipment PP strapping production line for automatic screen changer
Brand: SHENZHEN JIATUO PLASTIC MACHINERY CO.,LTD
SKU: JTPP-110
Price: 34,500.00 USD
Availability: InStock

All Products

PP Strap Making Machine
(484)

PET Strap Making Machine
(358)

PP Strap Band Extrusion Line
(188)

PET Strap Extrusion Line
(211)

Strapping Band Winding Machine
(144)

Automatic Baling Machine
(134)

PET Packaging Strap
(234)

PP Packing Belt
(121)

Packing Belt Making Machine
(35)

Packaging Tape Printing Machine
(22)

Plastic Film Embossing Machine
(7)

Tensile Testing Machine
(19)

Plastic Extrusion Screen Changer
(8)

Extrusion Machine Parts
(16)

Best Products

PLC 1.2mm Polyester PP Strap Making Machine

5mm customized single double screw PP packing belt production line with non-stop screen changer and length

Customized plastic extruder 5-15mm PP strapping production line PP equipment for PLC control system

Certification

Customer Reviews

Well received the PET strap making machine today, it's easy for installation and operation.

—— Ahmed from Sudan

Since using JIATUO strapping line, our production efficiency has increased dramatically and the equipment is running very stably!

—— Avinash from India

Excellent cooperation with Jiatuo Machinery, and thanks for Zoey's fast service. I am going to buy another one PP making machine!!!

—— Mustafa Koçak from Turkey

High production capability and low energy consumption, which can help me to make lots of money!!

—— Kashan from Pakistan

This is the second PP machine I ordered, the output is very high, the energy consumption is low, which greatly saves my production cost, thank you very much for Arey's patient guidance and service!

—— Hasseb from Columbia

JIATUO's technical team is very professional, door to door installation of our machine, a few days is exactly stable operation, thank you very much!

—— Farzed from Turkey

I'm Online Chat Now

Customized 5-15mm PP strapping equipment PP strapping production line for automatic screen changer

Large Image : Customized 5-15mm PP strapping equipment PP strapping production line for automatic screen changer

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	JIATUO
Certification:	CE, ISO
Model Number:	JTPP-110
Document:	parameter details of PP Str...ne.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	plastic film or other standard package for sea shipping
Delivery Time:	30~55 working days
Payment Terms:	L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability:	50set/month

Contact Now

Customized 5-15mm PP strapping equipment PP strapping production line for automatic screen changer

Description

Product Type:	PP Packing Belt Extrusion Line	Raw Material:	Polypropylene PP Raw Material Pellets, Recycled Pellets
Processing Type:	Extruding Machine	Screw Design:	1 To 4
Power:	100KW	Capacity:	200-230kg/h
Driven Type:	Electric	Application:	Packaging Strap
Automation:	Automatic	Warranty:	1 Year
Highlight:	ISO Recycled PP Strap Making Machine , 4 Belts pp strap extrusion machine , CE ISO pp strap extrusion machine

Customized 5-15mm PP strapping equipment PP strapping production line for automatic screen changer

PRODUCT DESCRIPTION

PP strapping tape production equipment is a high-speed extruder that can produce PP strapping tape for strapping various products.

It has the following features:

1. High-speed extrusion: It uses a high-efficiency extruder, quantitative extrusion, high production capacity, to ensure fast and continuous production, 24-hour power outages, and can produce 2-12 PP tapes at the same time.

2. Automatic control: PLC automatic system control, easy debugging, reduce manual intervention, and improve production efficiency.

PP strapping production line 1 to 4 product parameters:

Name: PP 1 to 4 strapping production line

Model number: JTPP-110

Applicable raw materials: New PP particles, PP recycled materials, PP crushed materials

Number of screws: 1 Screw

Number of extruded belts: 4

Width range: 5-19mm

Thickness range: 0.4-1.2mm

Production capacity: 200kg/h

Installation size: L38*W2.0*H4.0(m)

EXTRUSION PARAMETERS TABLE

Model	PP-2	PP-4	PP-6	PP-8	PP-10	PP-12
Raw material	PP polypropylene new material/recycled material
Number of tapes	2	4	6	8	10	12
Width(mm)	5-19	5-19	5-19	5-19	5-19	5-19
Thickness(mm)	0.4-1.2	0.4-1.2	0.4-1.2	0.4-1.2	0.4-1.2	0.4-1.2
Line speed(m/min)	≧260-300
PLC control system	PLC	PLC	PLC	PLC	PLC	PLC
Screw Model	90	110	125	135	135	135
Reducer model	200	220	250	280	280	280
Winding machine	Automatic winding machine /Semi-automatic winding machine
Screen Changer	Automatic/Manua
Production capacity 24H	2.5-3T	6-7T	8-9T	10-11T	12-13T	13--14T

Customized 5-15mm PP strapping equipment PP strapping production line for automatic screen changer 0

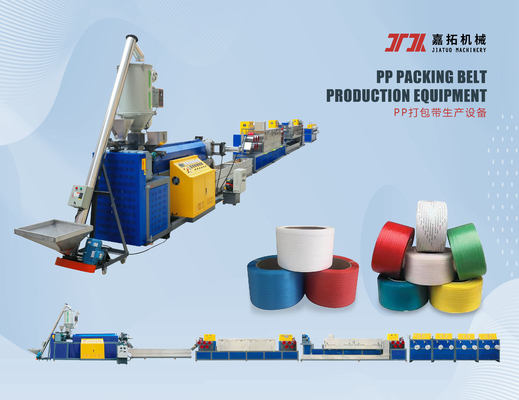

The main components of PP strapping equipment:
Feeder---- transfer PP raw materials into the machine.
Extruder----heat and melt the PP raw materials and extrude them into shape.
Molding mold---- make the molten PP tape embryo pass through the mold to form a strip.
Cooling water tank----cool the extruded PP tape embryo to ensure its shaping.
Tractor----pull out the cooled strapping tape to maintain a stable production speed.
Oven---- heat the strapping tape to improve its strength and toughness.
Embossing machine---- emboss the surface of the strapping tape to increase friction and prevent slipping.
Shaping oven----heat again, shape, and make the PP tape more standardized.
Reeler---- reel the strapping tape into rolls for easy storage and transportation.

Features of PP strapping production line:

1. It is suitable for all levels of recycled plastic particles, and produces sandwich belts and PP environmentally friendly packing belts;

2. It can be used to directly produce manual packing belts;

3. It can also be directly processed into hand-use, machine-use, printing packing tape, ultra-wide, ultra-thin, ultra-narrow, transparent, dyeing, and printing PP packing tape;

4. It is currently the most cost-effective and competitive product on the market, and is popular among small and medium-sized investors;

5. It can produce all kinds of manual belts, machine-use PP packing belts and export belts.

FAQ

Q1:Are you a trading company or a manufactory?

A1:We are a manufactory,can give u best service.

Q2:What's your guarantee or the warranty of the quality if we buy your machines?

A2:We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1 years.

Q3:When can I get my machine after I paid?

A3:We will deliver the machines on time as the date we agreed both side.

Q4:How about the spare parts?
A4:After we deal down all the things , we will offer you a spare parts list for your reference.
