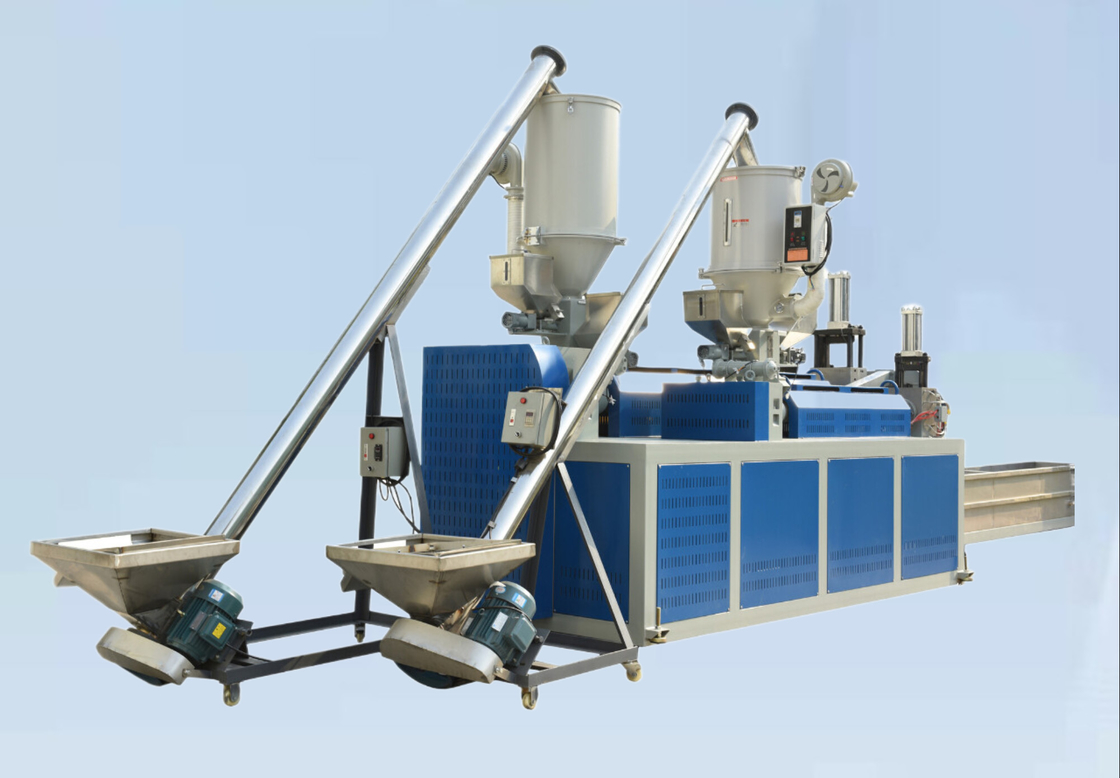

0.4-1.2mm thickness PET PP Strapping Band Making Machine 4 Belts

0.4-1.2mm thickness PET PP Strapping Band Making Machine 4 Belts
0.4-1.2mm thickness PET PP Strapping Band Making Machine 4 Belts
0.4-1.2mm thickness PET PP Strapping Band Making Machine 4 Belts 0.4-1.2mm thickness PET PP Strapping Band Making Machine 4 Belts 0.4-1.2mm thickness PET PP Strapping Band Making Machine 4 Belts 0.4-1.2mm thickness PET PP Strapping Band Making Machine 4 Belts

Large Image :  0.4-1.2mm thickness PET PP Strapping Band Making Machine 4 Belts

Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JTPP-110
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50~55 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 50set/month
Contact Now

0.4-1.2mm thickness PET PP Strapping Band Making Machine 4 Belts

Description
Product Type: PP Packing Belt Extrusion Line Raw Material: Polypropylene PP Raw Material Pellets, Recycled Pellets
Screw Design: 1 To 4 Capacity: 200kg/h
Power: 100KW Processing Type: Extruding Machine
Driven Type: Electric Application: Packaging Strap
Automation: Automatic Warranty: 1 Year
Highlight:

4 Belts Strapping Band Making Machine

,

1.2mm pp strapping band making machine

,

0.4mm pet strapping band making machine

High Output Automatic PP Strap Production Line Band Belt Extrusion Production Line



PRODUCT DESCRIPTION


Polypropylene strapping is the most economical of all strapping material due to it's light weight and versatility.it is available in a wide variety of sizes and gauges and offers the greatest elongation of any strapping type,along with good initial recovery characteristics.polypropylene can be heat sealed with joint efficiency of 70 to 80%.



PP strapping production line 1 to 4 product parameters:

Name: PP 1 to 4 strapping production line

Model number: JTPP-110

Applicable raw materials: New PP particles, PP recycled materials, PP crushed materials

Number of screws: 1 Screw

Number of extruded belts: 4

Width range: 5-19mm

Thickness range: 0.4-1.2mm

Production capacity: 200kg/h

Installation size: L38*W2.0*H4.0(m)

Model No. Screw Size No. of strap Capacity Total Power Width Range Thickness Range Installation Dimensions
JTPP-90 2800mm 2 100kg/h 80kw 5-19mm 0.4-1.2mm 30*2.0*4.0M
JTPP-100 2800mm 3 150kg/h 90kw 5-19mm 0.4-1.2mm 30*2.2*4.0M
JTPP-110 3300mm 4 200kg/h 100kw 5-19mm 0.4-1.2mm 38*2.0*4.0M
JTPP-110 3300mm 6 130kg/h 100kw 5-19mm 0.4-1.2mm 38*2.0*4.0M



The process flow of PP Packing Strap Belt Making Machine:

Vacuum feeding → Dryer → Extruding system → High speed Net exchanging system → Mould → Water cooling system →

Traction rollers → Stretch oven 1 → Tensile unit→ Embossing unit → Tensile unit→ Double winder



0.4-1.2mm thickness PET PP Strapping Band Making Machine 4 Belts 0

Plastic Strapping

Plastic strappping materials are made from Polyester,Polypropylene and are available in a variety of strengths,
styles,and finishes.Unlike steel strapping,elongation and recovery are a key factor for deciding which type of
plastic strap to use.

Polypropylene Strapping

Polypropylene strapping is an economical strapping material compared to other materials.it's designed for light to
medium duty unitizing,palletizing and bundling.Consistent pressure to polypropylene strapping can result in
unrecoverable dead stretch and inability to return to its original length

0.4-1.2mm thickness PET PP Strapping Band Making Machine 4 Belts 1

Features of PP strapping production line:

1. It is suitable for all levels of recycled plastic particles, and produces sandwich belts and PP environmentally friendly packing belts;
2. It can be used to directly produce manual packing belts;
3. It can also be directly processed into hand-use, machine-use, printing packing tape, ultra-wide, ultra-thin, ultra-narrow, transparent, dyeing, and printing PP packing tape;
4. It is currently the most cost-effective and competitive product on the market, and is popular among small and medium-sized investors;
5. It can produce all kinds of manual belts, machine-use PP packing belts and export belts.



Model Strap Width Strap Thickness Break Load Net Weight Strap Length Core Size
PP05005 5mm 0.5mm >40kg 10kg >6700M 200mm
PP06006 6mm 0.6mm >50kg 10kg >5800M 200mm
PP08005 8mm 0.5mm >60kg 10kg >3600M 200mm
PP09005 9mm 0.5mm >80kg 10kg >3300M 200mm
PP09006 9mm 0.6mm >90kg 10kg >3000M 200mm
PP09007 9mm 0.7mm >100kg 10kg >2500M 200mm
PP09008 9mm 0.8mm >120kg 10kg >2300M 200mm
PP12006 12mm 0.6mm >120kg 10kg >2300M 200mm
PP12007 12mm 0.7mm >130kg 10kg >2000M 200mm
PP12008 12mm 0.8mm >150kg 10kg >1660M 200mm
PP13506 13.5mm 0.6mm >130kg 10kg >2000M 200mm
PP13507 13.5mm 0.7mm >150kg 10kg >1700M 200mm
PP13508 13.5mm 0.8mm >160kg 10kg >1440M 200mm
PP13510 13.5mm 1.0mm >170kg 10kg >1250M 200mm
PP15005 15mm 0.5mm >130kg 10kg >2100M 200mm
PP15006 15mm 0.6mm >140kg 10kg >1830M 200mm
PP15008 15mm 0.8mm >160kg 10kg >1250M 200mm
PP15010 15mm 1.0mm >180kg 10kg >1100M 200mm
PP18008 18mm 0.8mm >220kg 10kg >1100M 200mm

0.4-1.2mm thickness PET PP Strapping Band Making Machine 4 Belts 2
