Product Details:
|
| Product Type: | PP Packing Belt Extrusion Line | Raw Material: | Polypropylene PP Raw Material Pellets, Recycled Pellets |
|---|---|---|---|
| Screw Design: | 1 To 4 | Processing Type: | Extruding Machine |
| Capacity: | 200kg/h | Power: | 100KW |
| Driven Type: | Electric | Application: | Packaging Strap |
| Automation: | Automatic | Warranty: | 1 Year |
| Highlight: | Polypropylene Strapping Band Making Machine,0.4mm PP Strapping Band Making Machine,1.2mm PP Strap Production Line |
||

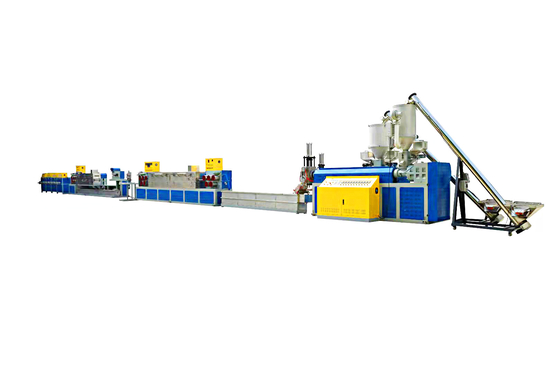

High Output PP Material Plastic Strap Making Machine Single Screw Design
PRODUCT DESCRIPTION
Polypropylene strapping is the most economical of all strapping material due to it's light weight and versatility.it is available in a wide variety of sizes and gauges and offers the greatest elongation of any strapping type,along with good initial recovery characteristics.polypropylene can be heat sealed with joint efficiency of 70 to 80%.
Name: PP 1 to 4 strapping production line
Model number: JTPP-110
Applicable raw materials: New PP particles, PP recycled materials, PP crushed materials
Number of screws: 1 Screw
Number of extruded belts: 4
Width range: 5-19mm
Thickness range: 0.4-1.2mm
Production capacity: 200kg/h
Installation size: L38*W2.0*H4.0(m)
| Model No. | Screw Size | No. of strap | Capacity | Total Power | Width Range | Thickness Range | Installation Dimensions |
| JTPP-90 | 2800mm | 2 | 100kg/h | 80kw | 5-19mm | 0.4-1.2mm | 30*2.0*4.0M |
| JTPP-100 | 2800mm | 3 | 150kg/h | 90kw | 5-19mm | 0.4-1.2mm | 30*2.2*4.0M |
| JTPP-110 | 3300mm | 4 | 200kg/h | 100kw | 5-19mm | 0.4-1.2mm | 38*2.0*4.0M |
| JTPP-110 | 3300mm | 6 | 130kg/h | 100kw | 5-19mm | 0.4-1.2mm | 38*2.0*4.0M |
The process flow of PP Packing Strap Belt Making Machine:
Vacuum feeding → Dryer → Extruding system → High speed Net exchanging system → Mould → Water cooling system →
Traction rollers → Stretch oven 1 → Tensile unit→ Embossing unit → Tensile unit→ Double winder
