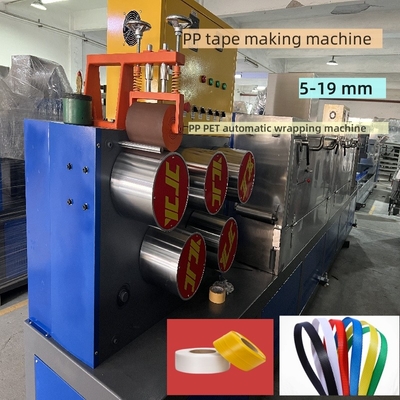

Packaging machinery 5-19mm PP strapping machine PP extrusion equipment PP strapping for CE certification
PRODUCT DESCRIPTION
PP packing belt with bending resistance, the proportion of light, easy to use, etc., was processed into a strapping, has been widely used to pack cartons, canned food, compressible products, board, aluminum ingots, etc.
The main components of PP strapping equipment:
Extruder---- core component, heats and melts PP particles and then extrude them into shape.
Die head---- determines the shape and size of the plastic strap.
Cooling system----quickly solidifies the extruded plastic strap through water cooling or air cooling.
Tractor---- pulls out the cooled plastic strap to ensure uniform thickness and width.
Oven---- heats the strap embryo and stretches it into shape, stretching ratio: 10-20 times.
Coiler---- winds the plastic strap into a roll for easy storage and transportation.
Control system---- PLC automatically controls each component to ensure stable production.
| Extruder Model |
single screw 2 straps |
single screw 4 straps |
| Main Motor Power |
80KW |
100KW |
| Overall Size |
35*2.0*4.0M |
38*2.0*4.0M |
| Output |
100-120KG/H |
200-300KG/H |
| Voltage |
220V/60Hz |
380V/50Hz |

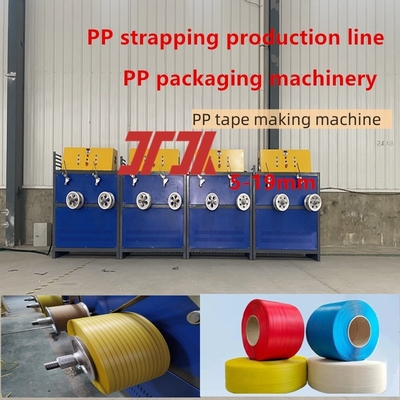

Process flow of PP packing belt production line
① Feeding →② stirring →③ pre-drying →④ melting and measuring extrusion →⑤ embryo (belt embryo) cooling and forming →⑥ oven preheating →⑦ primary stretching →⑧ secondary stretching →⑨ embossening → oven tempering and setting → cooling → finished product winding
PP Packing Strap Belt Extrusion Machine Features:
1.Precise dosing and raw material mixing
2.Preheat and dry circulating automatically
3.Even plasticization, stable extrusion and accurate temperature control
4.Big hauling force stretching device and isolated heating oven
5.Large capacity stainless steel water tank, automatic liquid level control
About After-sales
We provide comprehensive technical support and service for our PP Strap Making Machine. Our team of experienced technicians can provide a variety of services, including:
Pre-sales:
1.Layout plan of PP belt making machine.
2.Analysis of the cost of PP tape making machine.
3.Raw materials that can be used for PP tape making machine.
After-sales service:
1.Water and electricity circuits of PP belt making machine, circuit drawings, etc.
2.Installation, commissioning and training of PP belt making machine.
3.Maintenance service of PP belt making machine.
4.Regular maintenance and repair
5.Troubleshooting and diagnosis
6.Software updates and upgrades
7.Spare parts and accessories
8.Training and technical advice
FQA:
Q: What are the specifications that the PP strapping production line can produce?
A: Width: 5-19mm, thickness: 0.3-1.2mm.
Q: What's the price of this machine please?
A: We have different extrusion capacities and different models, and the corresponding prices are also different.
Q:Can the length of the PP strapping production line be customized?
A: YES
Q:What is the transaction method of PP strapping production line?
EXW ,FOB,CIF
