Fully Automatic PET Strapping Band Production Line Recycled PET Bottle Flakes Available

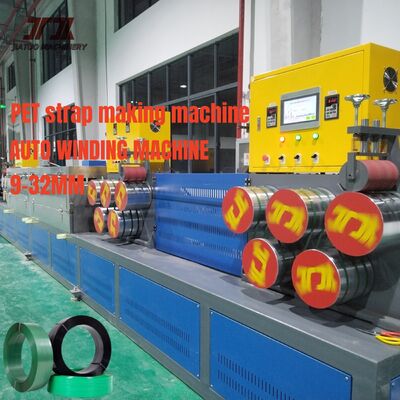

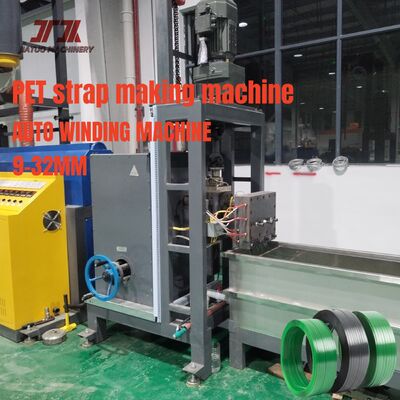

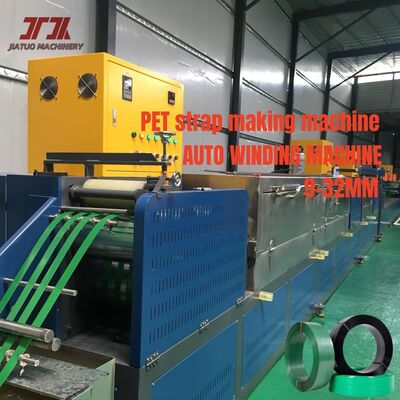

Description of PET strap making machine
PET strapping band production line is fully PLC-controlled extrusion equipment to manufacture high-tensile PET plastic steel strap. It works with virgin PET pellets and recycled PET bottle flakes. The complete line covers feeding, crystallization drying, extrusion, melt filtration, cooling, stretching, embossing, heat setting and automatic winding. PET strap can replace steel strap for heavy pallet packaging. Multiple configurations (2/4 straps output) are available, compatible with hand tools, semi-auto and full-auto strapping machines.
Technical parameters of PET strap production line
| Model |
Capcity (kg/h) |
Strap Size |
Power(kw) |
Manpower |
| JT-PET90 |
220-250KG/H |
9-32mm |
85 |
1-2 |
| JT-PET110 |
300-330KG/H |
9-32mm |
100 |
1-2 |
| JT-PET125 |
400-450KG/H |
9-32mm |
110 |
1-2 |
| JT-PET130 |
480-500KG/H |
9-32mm |
200 |
1-2 |
Running process of JIATUO PET strap making machine
Mixing material →pre-drying material→dehumidification material→filter material → extension →cooling→ first streching → second streching → embossing→shaping→cooling→winding
Feartures of PET strap production line
- Supports virgin PET crushed material, PET bottle flakes and virgin material.
- PLC touchscreen control; real-time temperature, pressure and speed monitoring
- Melt pump & precision die maintain stable strap width and thickness tolerance
- Stainless steel cooling tank for smooth strap surface
- Multi-stage stretching boosts tensile strength and lowers elongation
- Optional embossing rollers for improved friction and joint strength
- Semi-auto / fully automatic dual-station winder with auto reel change
- Modular design; 2 or 4 straps output available
Advantages of JIATUO PET strap making machine
Cost-effective: runs with recycled PET crushed material to cut raw material cost; finished PET strap replaces steel strap.
Stable performance: high tensile strength, controlled elongation, rust-proof and chemical resistant, better than PP strap for heavy loads
High compatibility: straps fit hand strapping tools, semi-automatic and full-automatic strapping machines Continuous automatic production, less labor input
Eco-friendly: supports recycled material; no rust contamination on cargo, meets export environmental standards
Customizable: strap width, thickness, color and line capacity available
