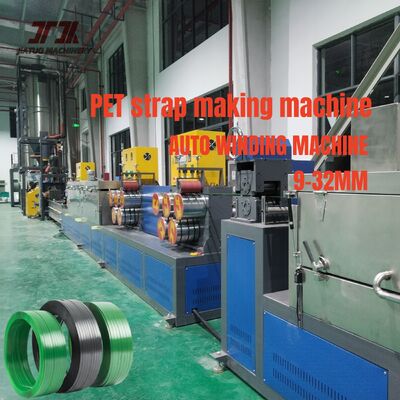

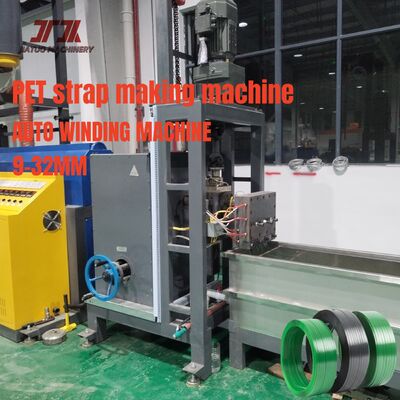

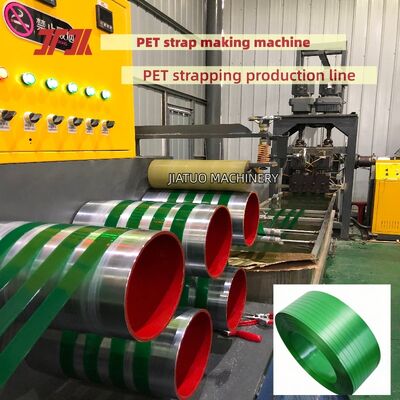

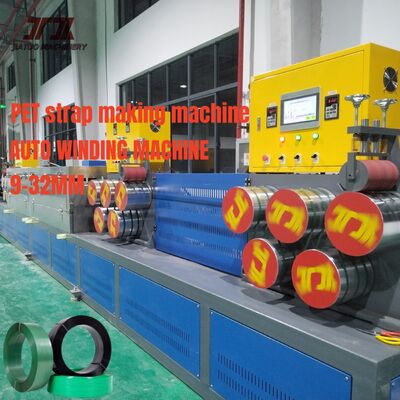

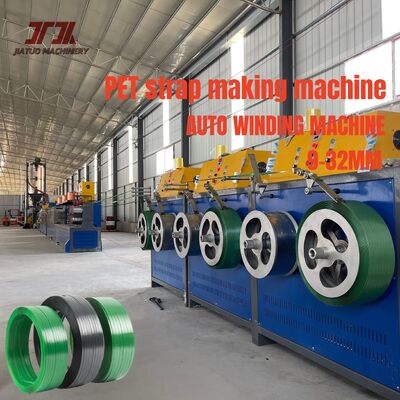

High-speed PET strapping machine automatic PET strapping production line with 100% PET bottle flake material production
PRODUCT DESCRIPTION OF PET STRAP MAKING MACHINE:
PET strap making machine/ PET strapping production line is a high-speed, intelligent, environmentally friendly plastic equipment, its advantages:
RAW MATERIALS
PET plastic steel belt can use raw materials: 100% bottle flakes or crushed materials or thickening granular materials
1. Bottle flakes--- waste mineral water, Sprite, Coke and other bottle flakes as raw materials, after crushing, cleaning, drying materials.
2. Crushed materials---- finished PET plastic steel belt after crushing, screening, cleaning, drying raw materials;
3. Thickening granular materials----PET crushed materials after processing, cleaning, thickening granular materials
PET plastic-steel strapping equipment is a specialized production line that converts recycled or virgin polyethylene terephthalate (PET) into high-strength plastic strapping through a process including melting, extrusion, stretching, shaping, and winding. PET plastic-steel strapping is widely used for heavy-duty packaging in industries such as steel, aluminum, papermaking, chemical fiber, and building materials due to its high strength, corrosion resistance, aesthetic appeal, and recyclability.
PRODUCT DESCRIPTION
|
Model
|
PET-2
|
PET-3
|
PET-4
|
PET-6
|
PET-8
|
|
Raw materials
|
Bottle flakes/crushed materials
|
|
Number of tapes
|
2
|
3
|
4
|
6
|
8
|
|
Width (mm)
|
9-32
|
|
Thickness (mm)
|
0.4-1.2
|
|
Maximum line speed(m/min)
|
≧150
|
≧150
|
≧150
|
≧150
|
≧150
|
|
Screw Model
|
90
|
100
|
125
|
150
|
180
|
|
Reducer model
|
200
|
250
|
280
|
315
|
350
|
|
Dehumidifier
|
1000
|
1000
|
2000
|
3000
|
3500
|
|
Metering Pumps
|
100CC
|
|
Production capacity /24 H
|
5-6T
|
7-8T
|
10-12T
|
12-15T
|
18-20T
|
CORE COMPONENTS OF PET PLASTIC STEEL STRIP EQUIPMENT :
1. Five-Roller Stretching System
Stretching Unit: Equipped with 3-5 sets of traction rollers, utilising silicone or chrome-plated rollers to prevent strip scratching; adjustable stretching speed range of 5-20m/min accommodates production requirements for plastic steel strips of varying thicknesses (0.4-1.2mm).
2. Five-Roller Forming System
Temperature Control System: Utilises a PLC control system with touchscreen operation, achieving ±1℃ precision across the entire line. Real-time temperature curves for each section are displayed, with fault alarm functionality (e.g., temperature anomalies, motor overload) enabling prompt operator intervention.
KEY TECHNOLOGIES:
1. The critical technologies lie in: PET molecular chain orientation stretching and precise temperature control systems. During the stretching phase, multiple sets of traction rollers work in concert to induce directional stretching of the PET melt within a specific temperature range. This process rearranges the molecular chains into an ordered structure, significantly enhancing the product's longitudinal tensile strength and elongation at break.
2. The PET plastic steel strapping production line employs a closed-loop temperature control system. Utilising thermal energy to reduce electrical power consumption, it employs PLC technology for real-time monitoring and precise regulation of temperatures at critical points including the extruder barrel, die head, stretching oven, and setting water tank. This ensures consistent thickness and width tolerance ranges across every production batch.
After-sales service
Our PET plastic steel belt equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic steel belt equipment.
2. Analysis of finished product manufacturing costs of PET plastic steel belt equipment.
3. Analysis of raw materials used in PET plastic steel belt equipment.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel belt equipment.
2. Installation, commissioning and training of PET plastic steel belt equipment.
3. Maintenance service of PET plastic steel belt equipment.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
COMPANY ADVANTATES:
The equipment is equipped with a PLC human-machine interface, which is easy to operate and debug. The equipment has an exclusive parameter memory system, which can store data for each specification after production, and can directly adjust the parameters for the next production.
The embossing wheel is processed by equipment imported from Germany, which is durable
The equipment is equipped with a correction device, and the winding is neat and knife-cut.
FAQ:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
