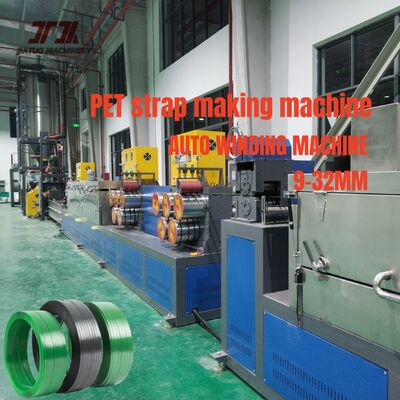

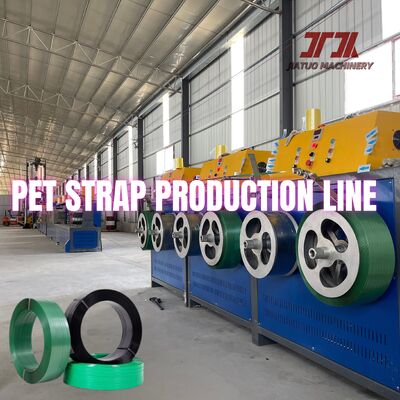

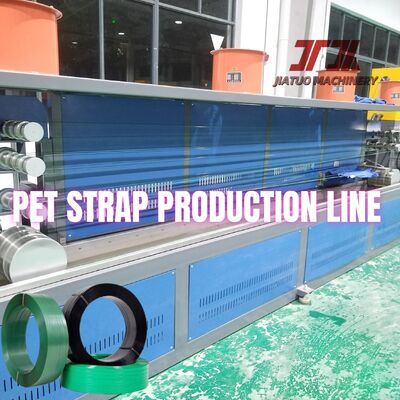

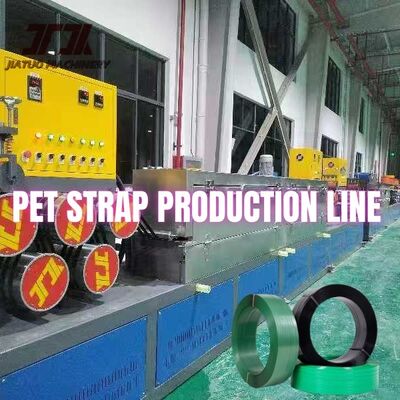

150m/min speed pet packing belt strap production line With automatic winding machine

150m/min speed pet packing belt strap production line With automatic winding machine

The process fiow of PET strap making machine as below

Horizontal mixer→Crystallizing and drying system →filter material→Extruder→ Cooling Tank→pre-heating Oven→ first Stretching →second stretching→Embossing machine →shaping oven→ cooling →Haul-off machine →Winder

Parameters of PET strap production machine


Advantages of JIATUO PET packing belt production line

High-Speed Output
High-efficiency extrusion line produces high-tensile PP & PET straps. Continuous running cuts power consumption and boosts production for packaging and palletizing.
Broad Raw Material Adaptability
Compatible with virgin PP, recycled pellets and PET flakes. Fast material changeover enables flexible custom manufacturing.
Precise Cooling & Uniform Gauge
Rapid cooling system plus precision rollers create even thickness, strong tension and smooth surface, perfectly matched for automatic strapping machines.
Full PLC Automatic Control
PLC manages the entire production process to maintain stable speed, constant tension and tidy winding. Minimal manual labor guarantees consistent product quality.

Part of JIATUO PET strap making machine

1. Single screw extruder with automatic mixing and feeding system

(1) Optimized screw and new slotted sleeve, high plasticizing rate, uniform melt, continuous and stable production.

(2) High performance gear box reducer, high torque, long life, low noise.

(3) Can uses 100% recycled bottle flakes.

(4) Equipped with automatic proportioning, metering and mixing system for raw materials and additives,etc.

2. Five-roll traction system

Stable traction ensures smooth machine running, cuts breakdown frequency and slashes maintenance costs by 60%.

3. Embossing machine

High-precision embossing unit with adjustable pressure. Synchronized lifting embossing rollers deliver sharp, neat patterns, matching the quality of European, American, Japanese and Korean strapping bands.

4. Winding machine

(1) Semi-automatic winding machine

(2) Fully-automatic winding machine

Application of PET packing belt

Pallet Bundling
Stabilize medium & heavy pallet loads like cartons and sacks for storage & shipping.
Logistics Consolidation
Stop cargo shifting across land, rail and sea transport.
Metal Goods Bundling
Bind steel tubes, sheets, profiles and ingots; great steel strap alternative.
Timber Packing
Suitable for lumber, plywood, planks and wooden cases.

FAQ

1. For PP(polypropylene) strapping band extrusion line
* What about the output of PP strapping band extrusion line? 120kg/hr, 260kg/hr, 380kg/hr.
* What about the size of strap that the PP strap machine can make? Width: 5-19mm; Thickness: 0.3-1.2mm;
* What about the installation power of the PP strap machine? 60kw/80kw/90kw/110kw;

2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 110kg/hr, 180kg/hr, 250kg/hr, 330kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.4-1.2mm;
* What about the installation power of the PET strap machine? 150kw/200kw/250kw/300kw;
