Single Cylinder Filter System PET Strap Making Machine Make Automatic Strapping Use

Large Image : Single Cylinder Filter System PET Strap Making Machine Make Automatic Strapping Use

Product Details:

Place of Origin:	CHINA
Brand Name:	JIATUO CHINA
Certification:	IS CEO
Model Number:	JTPET-90
Document:	PET strap making machine-A.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	plastic film
Delivery Time:	30-40days

Contact Now

Single Cylinder Filter System PET Strap Making Machine Make Automatic Strapping Use

Description

Product Name:	PET Strap Making Machine	Strap Width:	9-32mm
Motor:	GUGAO Brand	Origin:	Shenzhen China
Strap Tension:	150-850kg	Strap Speed:	>150m/min
Voltage:	380V 50HZ 3Phase(Customized)	Error Of Width:	Within 0.2mm
Strap Of Thickness:	Within 0.02mm
Highlight:	Single Cylinder PET Strap Machine , Automatic PET Strapping System , PET Strap Making Machine with Filter

Single Cylinder Filter System PET Strap Making Machine Make Automatic Strapping Use

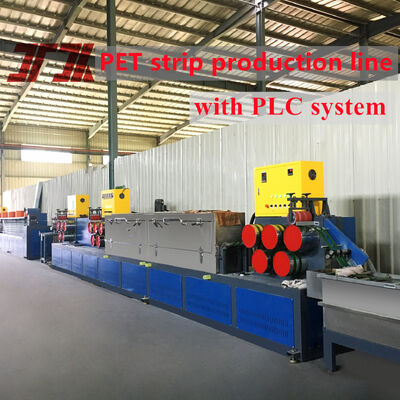

Specification of PET strap production line

Model	PET-2	PET-3	PET-4	PET-6
Production materials	Bottle flakes / broken material
Number of lines	2	3	4	6
Outgoing bandwidth(mm)	9-32	9-32	9-32	9-32
Outlet thickness(mm)	0.6-1.2	0.4-1.2	0.4-1.2	0.4-1.2
Control sytem	PLC control
Screw model	90	100	125	150
Reducer model	200	250	280	315
Horizontal mixer	2500L	2500L	5000L	5000L
Drying tower	3000L	4000L	5000L	6000L
Host barrel	3000L	4000L	5000L	6000L
Production capacity/ 24H	4.8T	8T	10T	15T

Process flow of PET strap making machine

Feeding
Raw material mixing
Pre-drying of raw materials
Vacuum dehumidification of raw materials
Melting, metering and extrusion
Cooling & forming of strap blank
Oven preheating
First stretching
Second stretching
Embossing
Oven tempering & setting
Cooling
Finished product winding

Feature of PET strap production line

1. Wide Variety: Various widths, thicknesses, strengths and colors.

2. Oven circulation heating: Saves heat, reduces power loss.

3. Circulating cooling: Full shaping, stable and accurate products.

4. Five-roll traction: Stable operation, 60% lower maintenance cost.

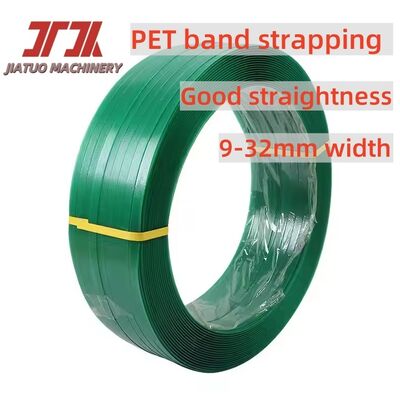

Application of PET strapping

1. Pallet bundling & unitization

Secure medium and heavy palletized goods (cartons, boxes, bags) for warehousing and transit.

2. Logistics & shipping consolidation

Prevent load shifting during road, rail, or sea transport.

3. Steel, metal & aluminum products

Bundle steel pipes, profiles, sheets, ingots; replace steel strapping.

4. Timber & wood products

Lumber, plywood, boards, wooden crates.

Single Cylinder Filter System PET Strap Making Machine Make Automatic Strapping Use 0

FAQ

Can the line run stably with recycled materials?

Yes. Our screw, barrel and filtration system are specially designed for recycled PET flakes, ensuring stable output.

Do you provide formula and technology?

Yes. We offer complete production technology, raw material ratio, operation manual and on-site training.

What is the lead time of the machine?

Normally 30–45 days after deposit, depending on machine configuration and production schedule.

Single Cylinder Filter System PET Strap Making Machine Make Automatic Strapping Use 1
