Product Details:
|
| Strap Width: | 5-19mm | Extruder Power: | 37KW |
|---|---|---|---|
| Video Outgoing-inspection: | YES | Neat Winding: | YES |
| Service Guaranteed: | YES | Production Capacity: | 300-600kg/h |
| First-class Technology: | YES | Material: | PP Polypropylene New Material/recycled Material |
| Thickness: | 0.6-1.2mm | Operation Mode: | PLC Computer Touch Screen |
| Length: | Negotiable | Paper Tube Size: | 200*170/175/180mm |
| Highlight: | PP strapping machine 5-15mm,PP packing strap making equipment,PP plastic strapping machine with warranty |
||
PRODUCT DESCRITION OF PP STRAP MAKING MACHUNE:

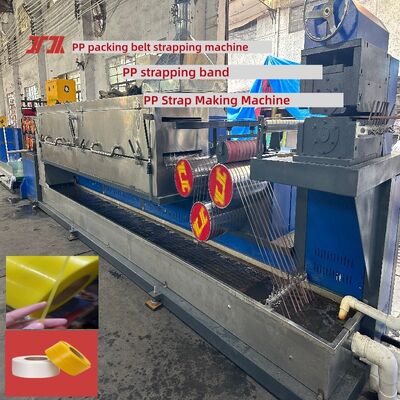

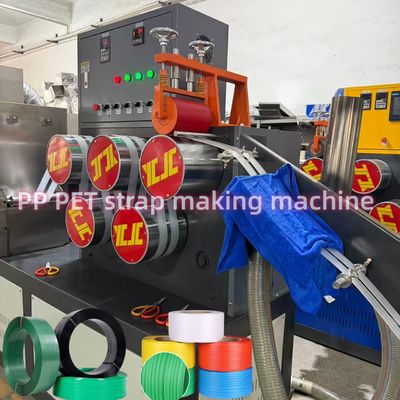

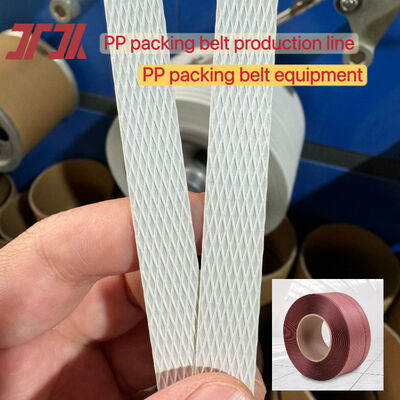

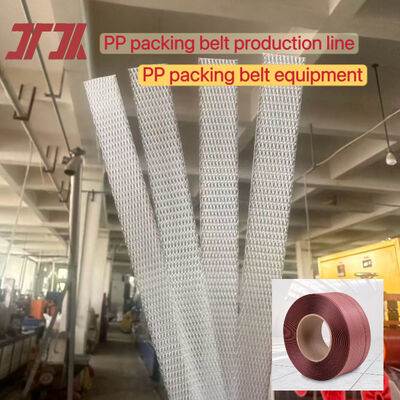

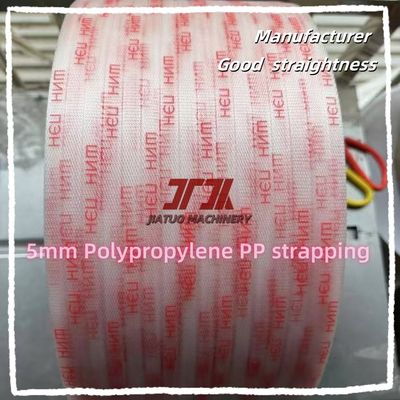

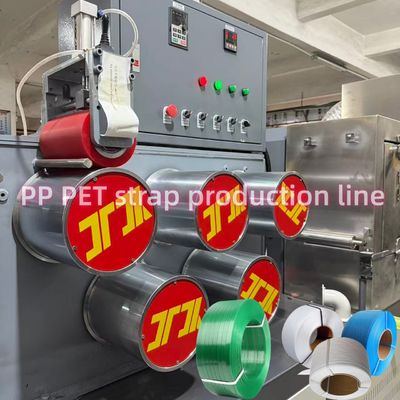

PP strap making machune/PP plastic strapping machine is a high-end plastic extrusion equipment used to produce a wide range of PP strapping products. Finished PP strapping can be produced in various colors including transparent, red, yellow, blue, white, and printed with lettering. Its applications are broad, primarily for: cardboard box strapping, appliance strapping, clothing strapping, fruit strapping, e-commerce product strapping, and building material strapping.
KEY HIGHLIGHTS:
Raw Materials-----100% virgin or recycled polypropylene.
Control Method----- PLC control system, configurable for different languages.
Motor----- This equipment uses a high-speed drive motor, ensuring stable and reliable performance with a low failure rate.
EXTRUSION PARAMETERS TABLE
| Model | PP-2 | PP-4 | PP-6 | PP-8 | PP-10 | PP-12 |
| Raw material | PP polypropylene new material/recycled material | |||||
| Number of tapes | 2 | 4 | 6 | 8 | 10 | 12 |
| Width(mm) | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 | 5-19 |
| Thickness(mm) | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 |
| Line speed(m/min) | ≧200-300 (Adjustable) | |||||
| PLC control system | PLC | PLC | PLC | PLC | PLC | PLC |
| Screw Model | 90 | 110 | 125 | 135 | 135 | 135 |
| Reducer model | 200 | 220 | 250 | 280 | 280 | 280 |
| Winding machine | Automatic winding machine /Semi-automatic winding machine | |||||
| Screen Changer | Automatic/Manua | |||||
| Production capacity 24H | 2.5-3T | 6-7T | 8-9T | 10-11T | 12-13T | 13--14T |
![]()
ENERGY-SAVING AND ENVIRONMENTALLY FRIENDLY:
Low consumables costs---- Compared to traditional manual strapping, this machine allows for precise control of strapping belt usage, reducing waste.
Low power consumption---- Energy-saving and environmentally friendly. Motor power typically ranges from 0.75-2.2kW, and energy-saving models feature variable frequency control.
Recyclable materials---- PP strapping belt is reusable, meeting environmental standards.
Low labor costs----- PLC automated program control eliminates the need for manual operation.
KDY MACHINE FEATURES:
Screen Changer — Features a large-area, four-screen rotary filtration system that allows for continuous, non-stop screen changing 24 hours a day, thereby minimizing manual intervention and boosting production capacity.
Main Extruder Die Head — Designed with a uniform extrusion flow channel, ensuring that the produced PP strapping bands maintain consistent specifications.
![]()

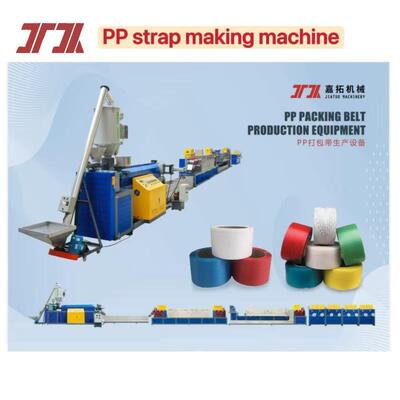

Process flow of PP packing belt production line
① Feeding →② stirring →③ pre-drying →④ melting and measuring extrusion →⑤ embryo (belt embryo) cooling and forming →⑥ oven preheating →⑦ primary stretching →⑧ secondary stretching →⑨ embossening → ⑩oven tempering and setting →⑪ cooling →⑫ finished product winding
We offer a wide range of technical support and services for our pp strapping strap making machine products, including:
FAQ:
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:Can the PP strapping production equipment be customized according to the factory length?
A:Yes, we can customize the length according to the customer's factory size.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
