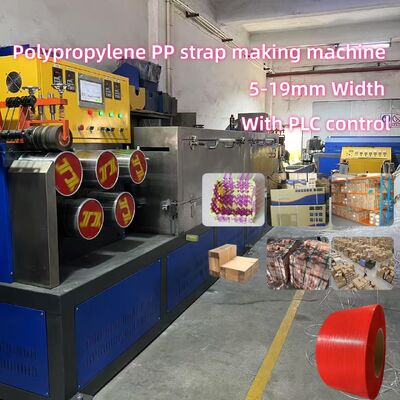

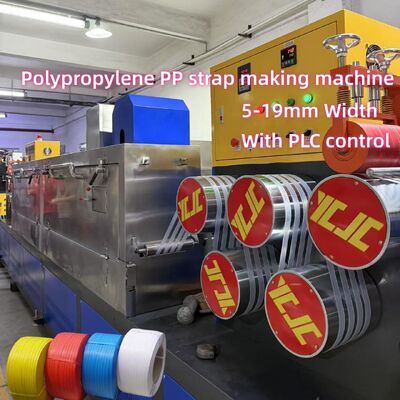

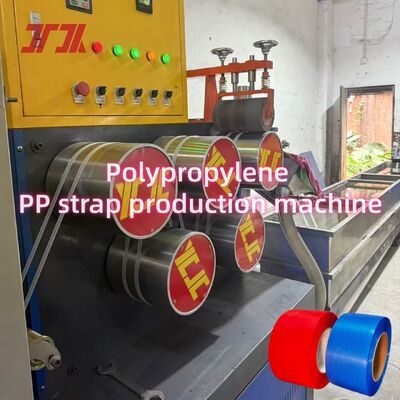

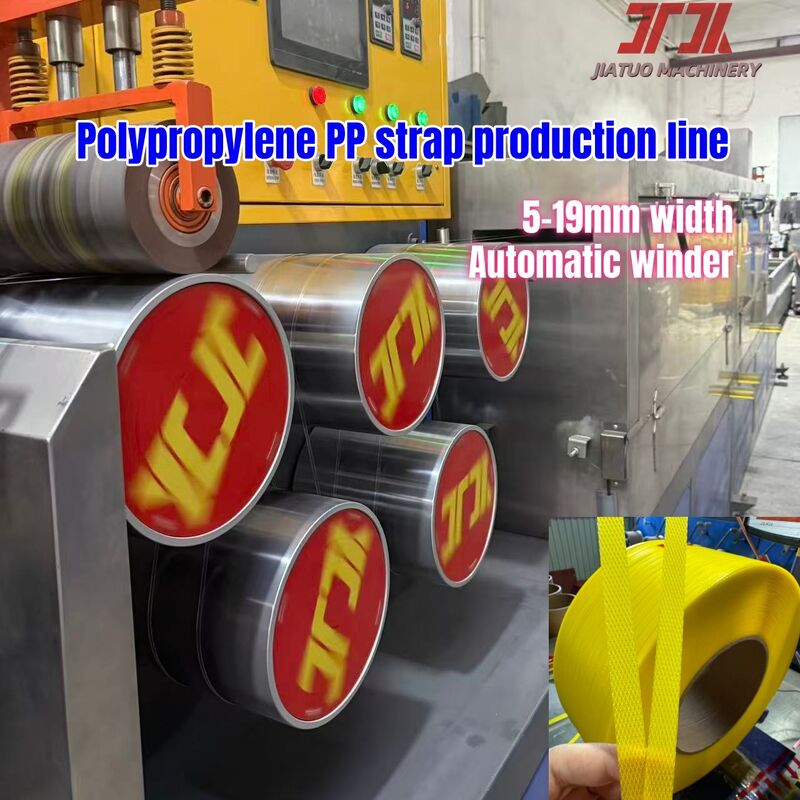

5-19mm Industrial PP Sandwich Belt Making Machine With Stable Extrusion Die Head
Description of PP strap making machine, PP packing belt production line
PP packing strap is made of polypropylene raw material, mainly used for packaging light‑duty goods. With good toughness, light weight and high cost‑performance, it features high tensile strength, break‑resistance and rust‑free. It is widely applied in carton factories, ceramic factories, fruit packaging, express logistics and light‑industry product bundling, serving as an ideal strapping material for transportation, storage and turnover of light‑weight cargoes.
Specification of PP 2straps output making machine
| 1 |
Materials |
Polypropylene PP raw material pellets, recycled pellets. |
| 2 |
Product |
PP strap (1 mould for 2 straps) |
| 3 |
Capacity |
100-120kg/h |
| 4 |
Total install power |
80kw, (actual power consumption is 40-50%) |
| 5 |
Strap width |
5mm-19 mm |
| 6 |
Thickness |
0.4 mm-1.2 mm |
| 7 |
Manpower |
2person/shift |
| 8 |
Workshop required |
L (30m) ×W (2m) ×H (4m) |
| 9 |
Power source |
380V, 50Hz, 3Phase (according to customer requirement) |
| 10 |
Electric components |
Schneider |
| 11 |
Inverter |
INVT |
| 12 |
Switches |
Fotek |
| 13 |
Motor power |
GUGAO |
Feature of PP strap making machine
Use the PLC control system to memory the parameter you made. easy to access.
Good extension(such as the width of 5mm and the thickness of 0.5mm can arrive at 60KGS pull)
High temperature resistant
Use less power to save costs and saving labor
Application of PP strapping
Retail and Supermarket Sector
For packing daily‑use goods, commodity boxes and retail products, convenient for sorting and distribution.
Textile and Clothing Industry
Applied in bundling fabrics, garments and textile rolls, flexible and not easy to damage packaged goods.
Electronics and Appliance Industry
Strapping household appliances, electronic components and equipment, anti‑rust and safe for precision products.
Agricultural Product Packaging
Used for bundling grain, feed, hay and other agricultural products, weather‑resistant and cost‑effective.
FAQ ABOUT PP BELT STRAPPING PRODUCTION LINE
Q1:Are you a trading company or a factory?
A1:We are a factory,can give u best service.
Q2:When can I get my machine after I paid?
A2:We will deliver the machines on time as the date we agreed both side.
Q3:How can I install my machine when it arrives?
A3:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q4:What's your guarantee or the warranty of the quality if we buy your machines?
A4:We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1 years.
