PRODUCT DESCRIPTION OF PET STRAP MAKINGE MACHINE

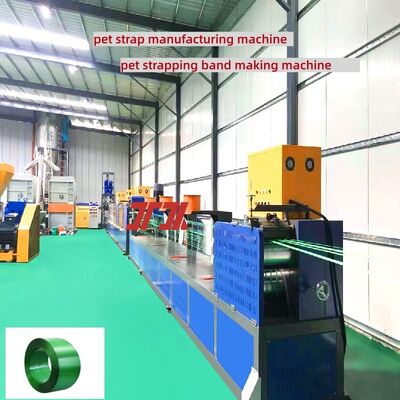

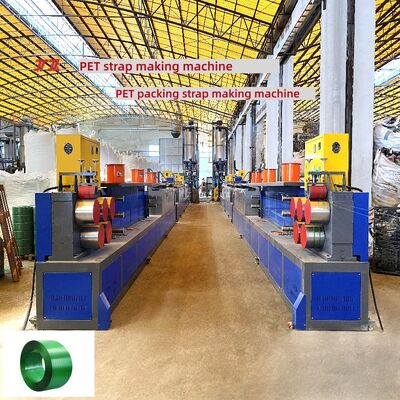

PET packing belt production line/PET strap making machine

The High-Strength PET Strapping Machine / PET Plastic Steel Strap Equipment is a specialized production line designed to manufacture high-strength plastic strapping bands. It processes recycled or virgin Polyethylene Terephthalate (PET) materials through a series of stages, including melting, extrusion, stretching, shaping, and winding. Renowned for its high tensile strength, corrosion resistance, aesthetic appeal, and recyclability, PET strapping is widely utilized for heavy-duty packaging applications across various industries, such as steel, aluminum, papermaking, chemical fibers, and construction materials.

Basic parameters of PET steel plastic belt equipment:

Production capacity: usually 100-600 kg/hour.

Belt width: commonly 9-32 mm.

Belt thickness: usually 0.4-1.2 mm.

Equipment power: depending on the model, the power is between 100-400KW.

Different extruder models and production capacities can be customized according to customer requirements.

                                             EXTRUSION PARAMETERS TABLE

Raw Materials-----PET bottle flakes / polyester granules, or crushed PET scrap.

FEATURES:

Compatible with production utilizing 100% recycled materials. The entire production line integrates core units such as pre-crystallization and drying, specialized screw extrusion, rapid hydraulic screen changing, precision die heads, multi-stage oven stretching, shaping, embossing, and dual-station automatic winding. This enables fully automated, continuous, and high-speed production—from raw materials to finished strapping bands—and is managed by a PLC control system, thereby reducing manufacturing costs.

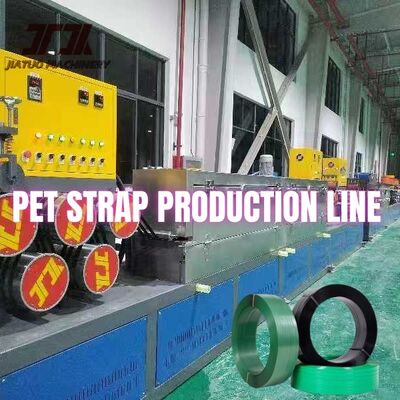

PET strap making machine process flow

① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (with raw materials) →⑦ Preheating the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding


PET plastic steel belt production line extrusion process:

Horizontal feeder ----mix different PET crushed materials or bottle flakes evenly.

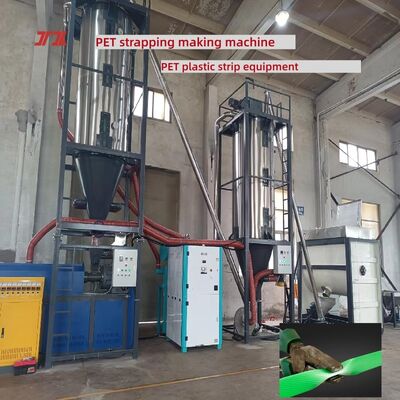

Drying barrel ------ heat the PET raw materials to dry the moisture.

Dehumidifier--------remove the moisture in the PET raw materials.

Extrusion molding-------make the molten PET belt blank pass through the mold to form.

Cooling water tank-------cool the extruded PET belt blank to ensure its molding.

Tractor--------tow the cooled PET strapping belt to maintain a stable production speed.

Stretcher--------stretch the formed PET belt instantly, about 1-10 times

Oven--------heat the strapping belt to improve the toughness of the PET belt.

Embossing machine------emboss the surface of the strapping belt to increase friction and prevent slipping.

Forming oven--------heat and shape again to make the PET belt more standardized.

Rewinder---------roll the strapping belt into a roll for easy storage and transportation.

ABOUT US:

We have nearly 30 years of production experience in the production of PP PET strapping equipment. We have our own production workshop, processing center, high-precision imported lathes, sales team, after-sales team, management team, etc.; including we currently also produce PP strapping, PET plastic steel strapping, etc., so we are very clear about the process details, the formula ratio of raw materials, and the addition ratio of various auxiliary materials;

We are the agent for the sale of various automatic strapping machines, semi-automatic strapping machines, handheld strapping machines, pneumatic strapping machines, etc., so we are clear about the requirements of different strapping machines for strapping;

We currently have 3 factories:

PP PET strapping equipment factory: 1PCS

PET plastic steel strapping factory: 1PCS

PP strapping factory: 1PCS


FAQ:


Q: What is the voltage of the PET strap making machine?

A: 380V/50HZ, three-phase (customization supported)

Q: What is the extrusion capacity of the PET strap making machine?

A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H

Q: What is the producible width of the PET strap making machine?

A: 9-32mm

Q: Can the PET strap making machine be customized?

A: Customization supported

Q: Where does the PET strap making machine come from?

A: China.

Q: What are the certifications for the PET strap making machine?

A: ISO CEO certification.

Q: What is the minimum order quantity for the PET strap making machine?

A: 1 set

Q: What is the weight of the PET strap making machine?

20T, 40GP container * 3PCS
