High-Strength PET Strap making Machine PET Strapping Production Equipment with an Extrusion Output of 100–600 kg/h

High-Strength PET Strap making Machine PET Strapping Production Equipment with an Extrusion Output of 100–600 kg/h

PRODUCT DESCRIPTION OF PET STRAP MAKINGE MACHINE

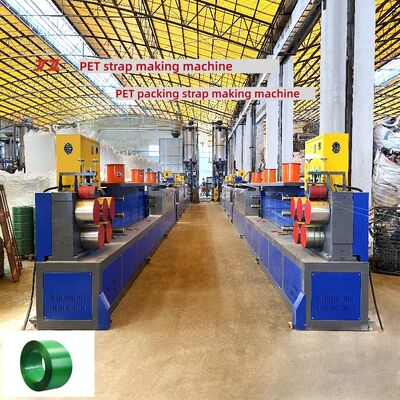

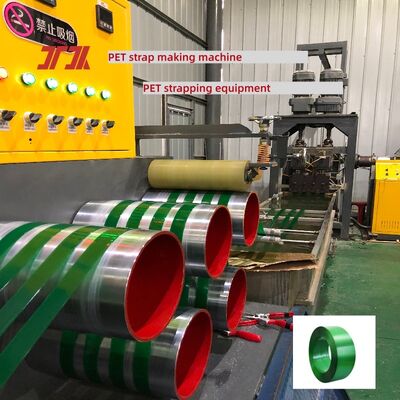

PET packing belt production line/PET strap making machine

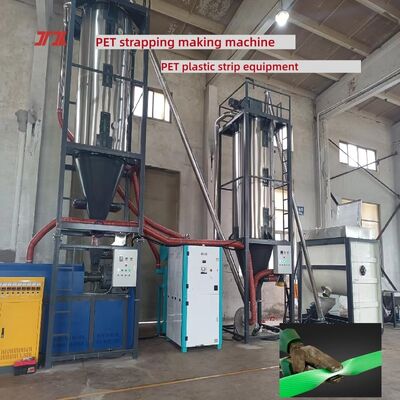

The High-Strength PET Strapping Machine / PET Plastic Steel Strap Equipment is a specialized production line designed to manufacture high-strength plastic strapping bands. It processes recycled or virgin Polyethylene Terephthalate (PET) materials through a series of stages, including melting, extrusion, stretching, shaping, and winding. Renowned for its high tensile strength, corrosion resistance, aesthetic appeal, and recyclability, PET strapping is widely utilized for heavy-duty packaging applications across various industries, such as steel, aluminum, papermaking, chemical fibers, and construction materials.

                                             EXTRUSION PARAMETERS TABLE

Raw Materials-----PET bottle flakes / polyester granules, or crushed PET scrap.

FEATURES:

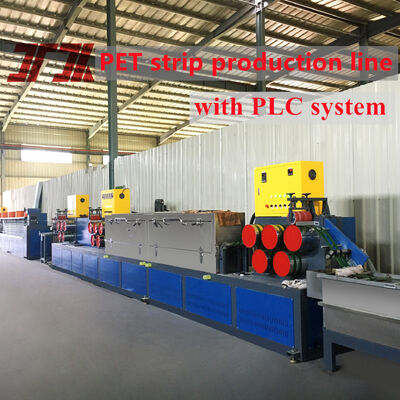

Compatible with production utilizing 100% recycled materials. The entire production line integrates core units such as pre-crystallization and drying, specialized screw extrusion, rapid hydraulic screen changing, precision die heads, multi-stage oven stretching, shaping, embossing, and dual-station automatic winding. This enables fully automated, continuous, and high-speed production—from raw materials to finished strapping bands—and is managed by a PLC control system, thereby reducing manufacturing costs.

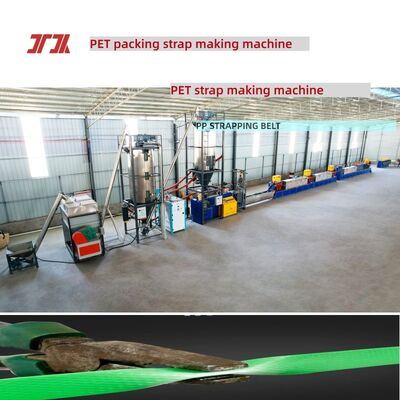

PET strap making machine process flow

① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (with raw materials) →⑦ Preheating the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding


FEATURES:

1. Good tensile strength----PET strapping betl production line/PET strap making machine has the tensile strength of steel tape, good ductility, good impact resistance, not easy to break, and ensures the safety of product transportation.
2. Small elongation----Although PET strapping belt is a kind of plastic, its elongation changes very little, and its elongation is only 1/6 of polypropylene. It can maintain tension and make the expansion and contraction amount no longer change after packaging.
3. Strong temperature resistance----Experiments have proved that the melting point of PET strapping belt is about 260℃, and it can be used for a long time at 120℃ without deformation, and has good stability.
4. Good economic benefits----The density of PET strapping beltPET strap production line is 1.30~1.38g/cm3, which is only 1/6 of the density of steel tape (7.8g/cm3), equivalent to the length of 6-ton steel tape, and the price per unit length is relatively low.

ABOUT US:

We have nearly 30 years of production experience in the production of PP PET strapping equipment. We have our own production workshop, processing center, high-precision imported lathes, sales team, after-sales team, management team, etc.; including we currently also produce PP strapping, PET plastic steel strapping, etc., so we are very clear about the process details, the formula ratio of raw materials, and the addition ratio of various auxiliary materials;

We are the agent for the sale of various automatic strapping machines, semi-automatic strapping machines, handheld strapping machines, pneumatic strapping machines, etc., so we are clear about the requirements of different strapping machines for strapping;

We currently have 3 factories:

PP PET strapping equipment factory: 1PCS

PET plastic steel strapping factory: 1PCS

PP strapping factory: 1PCS


FAQ:


Q: What is the voltage of the PET strap making machine?

A: 380V/50HZ, three-phase (customization supported)

Q: What is the extrusion capacity of the PET strap making machine?

A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H

Q: What is the producible width of the PET strap making machine?

A: 9-32mm

Q: Can the PET strap making machine be customized?

A: Customization supported

Q: Where does the PET strap making machine come from?

A: China.

Q: What are the certifications for the PET strap making machine?

A: ISO CEO certification.

Q: What is the minimum order quantity for the PET strap making machine?

A: 1 set

Q: What is the weight of the PET strap making machine?

20T, 40GP container * 3PCS
