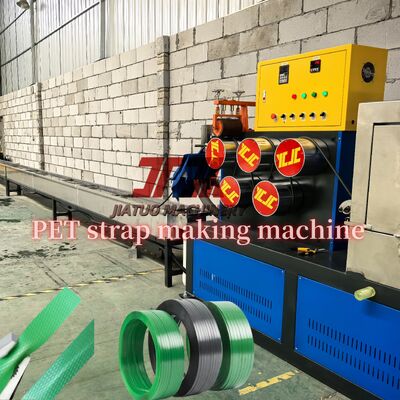

220-250kg/H Pet Strapping Strap Band Making Machine with PLC Control with Multi-Spec Storage

Large Image : 220-250kg/H Pet Strapping Strap Band Making Machine with PLC Control with Multi-Spec Storage

Product Details:

Place of Origin:	CHINA
Brand Name:	JIATUO CHINA
Certification:	ISO/ CE
Model Number:	JTPET-110

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Plastic film
Delivery Time:	50-60DAYS
Payment Terms:	L/C,T/T
Supply Ability:	20SETS/month

Contact Now

220-250kg/H Pet Strapping Strap Band Making Machine with PLC Control with Multi-Spec Storage

Description

Plastic Processed:	PET Strapping	Screw Diameter (mm):	110mm
Production Capacity:	225-500kgs/H Can Be Customized	Warranty:	1 Years
Number Of Extruded Strap:	3	Application Scope:	Brickyard, Metal, Steel, Aluminum,brewery
Screen Changer:	Double Cylinder / Single Cylinder	Thickness Range:	0.4-1.2mm
Width Range:	9-32mm	Applicable Raw Materials:	Bottle Flake Material, 100% Broken Material

220-250kg/H Pet Strapping Strap Band Making Machine with PLC Control with Multi-Spec Storage

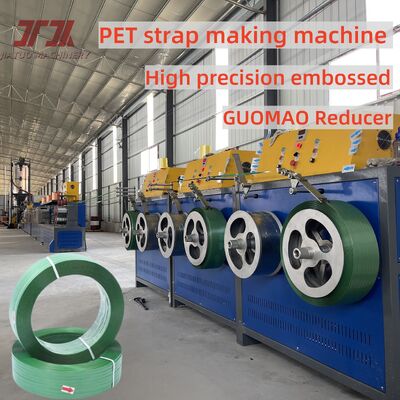

The process fiow of PET strap making machine as below

Horizontal mixer→Crystallizing and drying system →filter material→Extruder→ Cooling Tank→pre-heating Oven→ first Stretching →second stretching→Embossing machine →shaping oven→ cooling →Haul-off machine →Winder

Parameters of PET strap production machine

Model	Capcity (kg/h)	Strap Size	Power(kw)	Manpower
JT-PET90	220-250KG/H	9-32mm	85	1-2
JT-PET110	300-330KG/H	9-32mm	100	1-2
JT-PET125	400-450KG/H	9-32mm	110	1-2
JT-PET130	480-500KG/H	9-32mm	200	1-2

Part of JIATUO PET strap making machine

1. Single screw extruder with automatic mixing and feeding system

(1) Optimized screw and new slotted sleeve, high plasticizing rate, uniform melt, continuous and stable production.(2) High performance gear box reducer, high torque, long life, low noise.
(3) Can uses 100% recycled bottle flakes.
(4) Equipped with automatic proportioning, metering and mixing system for raw materials and additives,etc.

2. Winding machine
(1) Semi-automatic winding machine
(2) Fully-automatic winding machine

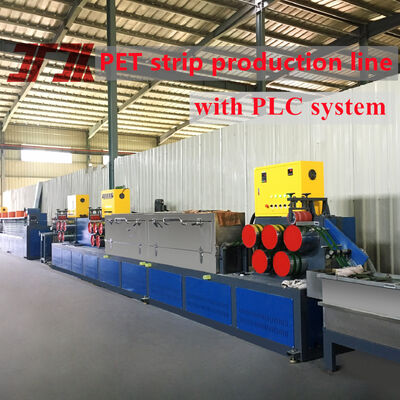

Feature of PET strap production line

PLC Control with Multi-Spec Storage
Equipped with a PLC system supporting up to 99 specifications, suitable for continuous production with frequent changeovers. Maintains process consistency across strap widths (5–19 mm) and thicknesses (0.3–1.2 mm).
Non-Stop Screen Changing and Stable WindingThe automatic screen changer enables mesh replacement without stopping production, reducing downtime.

The constant-force winding system ensures neat rolls, compatible with automatic and semi-automatic packaging machines.Stable Dimension Control Mechanism
The combination of a five-roller traction system and a circulating cooling system helps maintain consistent strap dimensions:
Width: 9–32 mm
Thickness: 0.3–1.2 mm
This design reduces dimensional variation caused by material inconsistency.

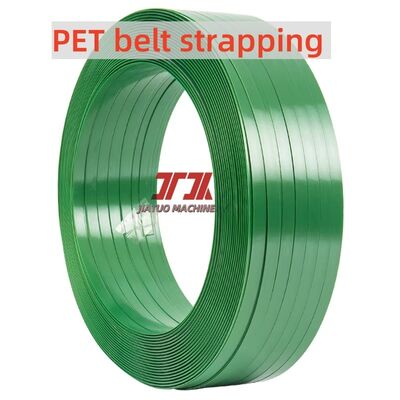

Application of PET strapping

PET strapping (also known as plastic steel strapping) is an ideal alternative to traditional steel strapping and PP strapping, thanks to its high strength, excellent toughness, corrosion resistance, and lightweight properties, as well as its eco-friendly advantage of recyclability. It is widely used in various scenarios such as industrial packaging and logistics bundling, with specific applications as follows:
Building Materials IndustryMetallurgy & Metal Processing IndustryGlass IndustryFood & Beverage Industry
FAQ

1. For PP(polypropylene) strapping band extrusion line

* What about the output of PP strapping band extrusion line? 120kg/hr, 260kg/hr, 380kg/hr.

* What about the size of strap that the PP strap machine can make? Width: 5-19mm; Thickness: 0.3-1.2mm;

* What about the installation power of the PP strap machine? 60kw/80kw/90kw/110kw;

2. For PET(polyester) strapping band extrusion line

* What about the output of PET strapping band extrusion line? 110kg/hr, 180kg/hr, 250kg/hr, 330kg/hr.

* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.4-1.2mm;

* What about the installation power of the PET strap machine? 150kw/200kw/250kw/300kw;
