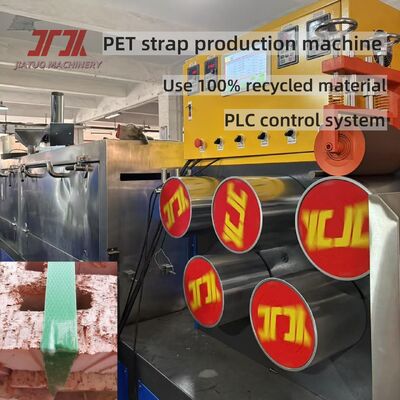

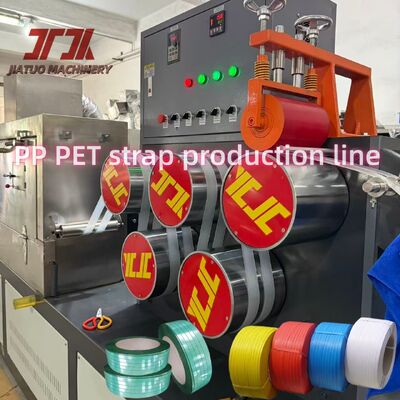

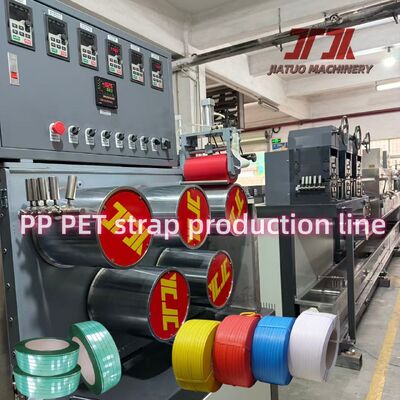

Single Screw PET Strap Making Machine Packing Belt Production Line With Second Stretching Steps
Shenzhen Jiatuo Plastic Machinery Co., LTD.
Cost-Effective Formulation, Market Competitiveness Empowered – Jiatuo PET packing strap production line supports flexible production with recycled materials (bottle flakes material and PET crushed material )or blends of new and recycled materials. It can also be customized to add other raw materials according to customer requirements, significantly boosting product profit margins and helping you break through market competition barriers easily!
Wide Compatibility & Eye-Catching Appearance – All types of packing straps produced by the line are perfectly compatible with full-automatic unmanned balers at home and abroad. Equipped with high-precision embossing wheels, the straps feature clear, three-dimensional embossing, rich and varied colors, and outstanding texture.
Premium Configuration for Consistent Quality – The equipment is fitted with high-precision, high-quality screws and an exclusive PLC intelligent control system, delivering large extrusion capacity, excellent plasticizing effect, and producing straps with high hardness and strong wear resistance. Core mold components are precision-machined by imported CNC machine tools, ensuring stable and reliable product quality with thickness tolerance far lower than the national acceptance standard for Plastic Packing Straps.
The process fiow of PET strap making machine as below
Horizontal mixer→Crystallizing and drying system →filter material→Extruder→ Cooling Tank→pre-heating Oven→ first Stretching →second stretching→Embossing machine →shaping oven→ cooling →Haul-off machine →Winder
Parameters of PET strap production machine
| NO. |
Item |
Specification |
| 1 |
Power |
According to customer's factory voltage |
| 2 |
Material |
PET raw material or 100% PET bottle flakes recycled |
| 3 |
Capacity |
PETJT90:200kg/h |
| PETJT100:250kg/h |
| PETJT125:350kg/h |
| 4 |
Product size |
Width:9-32mm |
| Thickness:0.6-12mm |
| 5 |
Installation power |
PETJT90:200KW |
| PETJT100:250KW |
| PETJT125:300KW |
| 6 |
Cooling tower capacity |
30T/H or 50T/H |
| 7 |
Installation Dimensions |
PETJT90:45*2.0*7.0M |
| PETJT100:45*2.0*7.0M |
| PETJT125:60*3.0*8.0M |
Support and Services
The PP PET strap Making Machine is a highly efficient and reliable machine used for the production of high-quality packing belts. Our technical support team is available to assist with any issues or questions related to the machine's operation, maintenance, or repair. We offer a range of services, including:
- Installation and setup
- Training and technical assistance
- Troubleshooting and diagnostic support
- Maintenance and repair services
- Replacement parts and accessories
Our team of experts is dedicated to ensuring that your packing belt making machine operates at peak performance and productivity. Contact us for more information on how we can assist you with your machine.
