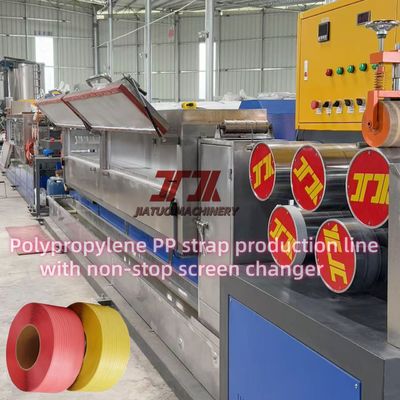

PLC-controlled PP packing strap making machine PP packing strap production line high-speed PP and PET packing straps
Product Description of pp packing strap making machine:

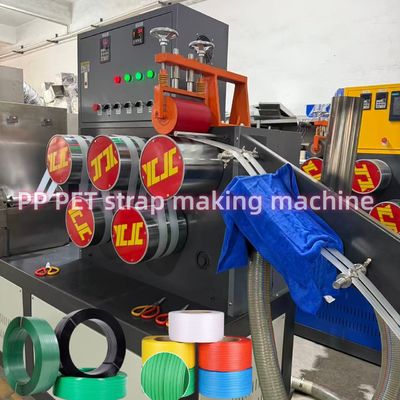

pp strapping strap making machine
MAIN CPMPONENTS
PLC system----The equipment adopts an intelligent PLC Chinese/English version control system, which is simple and easy to understand, beautiful and generous, sturdy and durable, long life, and low failure rate. The equipment has an exclusive parameter memory system, which can store data after each specification is produced, and the parameters can be directly adjusted during the next production.
Oven----Constant temperature intelligent oven, with multiple heating tubes inside, uses electricity to generate heat energy, reaches the set temperature, and automatically stops heating, with low power consumption and less loss.
Winding machine----can be matched with automatic winding machine (automatic roll changing, automatic tape cutting, automatic stop), servo motor control, no manual operation required.
EXTRUSION PARAMETERS TABLE
|
Model
|
PP-2
|
PP-4
|
PP-6
|
PP-8
|
PP-10
|
PP-12
|
|
Raw material
|
PP polypropylene new material/recycled material
|
|
Number of tapes
|
2
|
4
|
6
|
8
|
10
|
12
|
|
Width(mm)
|
5-19
|
5-19
|
5-19
|
5-19
|
5-19
|
5-19
|
|
Thickness(mm)
|
0.4-1.2
|
0.4-1.2
|
0.4-1.2
|
0.4-1.2
|
0.4-1.2
|
0.4-1.2
|
|
Line speed(m/min)
|
≧260-300
|
|
PLC control system
|
PLC
|
PLC
|
PLC
|
PLC
|
PLC
|
PLC
|
|
Screw Model
|
90
|
110
|
125
|
135
|
135
|
135
|
|
Reducer model
|
200
|
220
|
250
|
280
|
280
|
280
|
|
Winding machine
|
Automatic winding machine /Semi-automatic winding machine
|
|
Screen Changer
|
Automatic/Manua
|
|
Production capacity 24H
|
2.5-3T
|
6-7T
|
8-9T
|
10-11T
|
12-13T
|
13--14T
|
Features :
PP plastic belt equipment is a mechanical equipment used to produce polypropylene (PP) plastic belts, which are widely used in packaging, printing, textile, ceramics, printing, logistics, home appliances and other industries
Services :
Technical Support and Service for pp strapping strap making machine
We offer a wide range of technical support and services for our pp strapping strap making machine products, including:
- Installation and commissioning of the extrusion line.
- Operational and maintenance training.
- Consultation and advice.
- Technical support.
- Spare parts supply.
- Regular maintenance.
- On-site repair and maintenance.
FAQ:
Q: What are the specifications that the PP strapping production line can produce?
A: Width: 5-19mm, thickness: 0.3-1.2mm.
Q: What's the price of this machine please?
A: We have different extrusion capacities and different models, and the corresponding prices are also different.
f
- Transport methods include air, sea, express and railway.
