High-speed Pet Packing Belt Making Machine With 4.5m2 Filter Area And Automatic Winder
About PET strapping, how much you know?
PET strapping, also known as plastic-steel strapping, is a new type of environmentally friendly packaging material that is replacing steel worldwide, especially given the current emphasis on environmental protection. With the development of new materials, its cost has decreased significantly, leading to a substantial reduction in production costs.
So, how to use PET strap making machine make PET strapping?
The entire production line is controlled by a PLC system, achieving uniform plasticization and stable extrusion, greatly improving production efficiency.
Straps output number: 2/4/6/8/10 straps. as customer require.

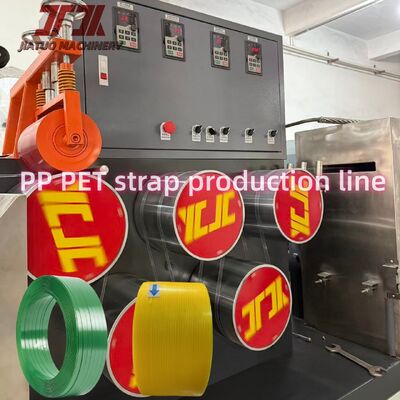

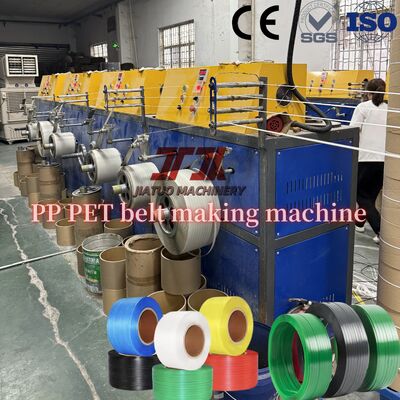

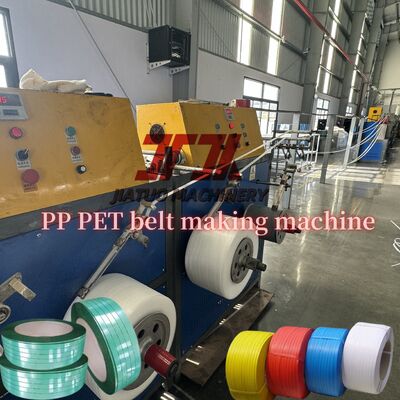

The process fiow of PET strap making machine as below

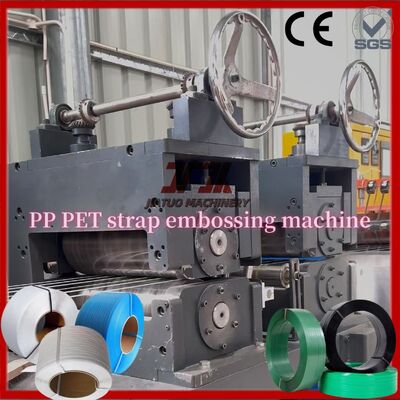

Horizontal mixer→Crystallizing and drying system →filter material→Extruder→ Cooling Tank→pre-heating Oven→ first Stretching →second stretching→Embossing machine →shaping oven→ cooling →Haul-off machine →Winder
Parameters of PET 2straps output production machine
|
1
|
Materials
|
PET CRUSHED material / bottle flakes material /virgin material
|
|
2
|
Product
|
PET strap (1 mould for 2straps)
|
|
3
|
Capacity
|
220-250kg/H
|
|
4
|
Total install power
|
100kw, (actual power consumption is 40-50%)
|
|
5
|
Strap width
|
9mm-32 mm
|
|
6
|
Thickness
|
0.4 mm-1.2 mm
|
|
7
|
Manpower
|
2person/shift
|
|
8
|
Workshop required
|
L (50m) ×W (4m) ×H (8m)
|
|
9
|
Power source
|
380V, 50Hz, 3Phase (according to customer requirement)
|
|
10
|
Electric components
|
Schneider
|
|
11
|
Inverter
|
INVT
|
|
12
|
Switches
|
Fotek
|
|
13
|
Motor power
|
GUGAO
|
Application for plastic steel strapping
As a new type of strapping product with strong tensile force and corrosion resistance, PET strapping belt is gradually replacing traditional stainless steel strapping products with overwhelming advantages in performance and price. Therefore, the potential of PET strapping production line as a small and medium-sized investment is huge.It is widely used in steel, aluminum, chemical fiber, cotton spinning, tobacco, paper, metal can making and other industries.
FAQ about JIATUO PET strap making machine
For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 110kg/hr, 180kg/hr, 250kg/hr, 330kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.4-1.2mm;
* What about the installation power of the PET strap machine? 150kw/200kw/250kw/300kw;
