Fully Automatic PET Plastic Packing Strap Making Extruder Machine with automatic filter system

Large Image : Fully Automatic PET Plastic Packing Strap Making Extruder Machine with automatic filter system

Product Details:

Place of Origin:	SHENZHEN CHINA
Brand Name:	JIATUO
Certification:	CE ISO SGS
Model Number:	JTPET-90

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD 140,000-USD 280,000 PER SET
Packaging Details:	Suitable for Sea Shipment
Delivery Time:	30 days
Supply Ability:	60 sets/Year

Contact Now

Fully Automatic PET Plastic Packing Strap Making Extruder Machine with automatic filter system

Description

Control System:	PLC	Cooling System:	Air Cooling
Dimension:	450012001800mm	Heating System:	Electrical Heating
Max. Output:	100-110KG/H	Max. Speed:	50m/min
Operation Mode:	Automatic	Power:	380V/50HZ
Product Name:	PET Strap Making Machine	Strap Material:	100% Recycled Bottle Flakes
Strap Thickness:	0.4-1.2mm	Strap Width:	9-32mm
Tension Control:	Pneumatic	Warranty:	1 Year
Weight:	2500kg	Assembly Structure:	Integral Type Extruder
Screw Type:	Single-screw
Highlight:	fully automatic PET strap extruder machine , PET plastic packing strap maker , automatic filter PET strap machine

Fully Automatic PET Plastic Packing Strap Making Extruder Machine with automatic filter system

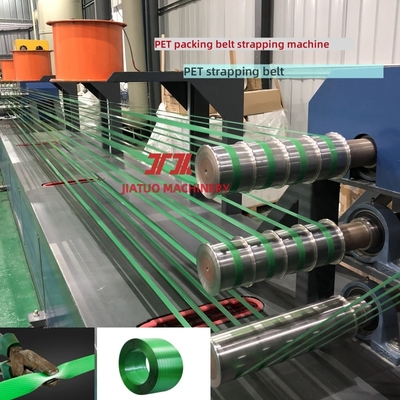

Process Flow of PET Packing Strap Production Line

Fully Automatic PET Plastic Packing Strap Making Extruder Machine with automatic filter system 0
①Material→②Stirring raw material→③Pre crystallization drying→④vacuum dehumidification→⑤Extruding→⑥cooling and forming →⑦ oven pre-heating →⑧ primary stretching →⑨secondary stretching →⑩ embossing → ⑪oven shaping→⑫ cooling→ ⑬winding (Final product)

Parameters of PET 1 to 2 production machine

Item	JTPET-90
Screw design	Single screw
Straps Qty.	2 straps
Output/Day	5.5-6T/24 hours
Screw Dia.	90mm
Winder Qty.	2 sets
Material used	100% Recycled Bottle Flakes/Virgin Material/mixed with
Running power	110-120kw
Installed power	200kw
Strap specifications	Width 9-32mm thickness 0.6-1.2mm
Workshop area	L (55m) ×W (2m) ×H (8m)
Electric components	Schneider
Materials	PET raw material or 100% PET bottle flakes recycled

Fully Automatic PET Plastic Packing Strap Making Extruder Machine with automatic filter system 1

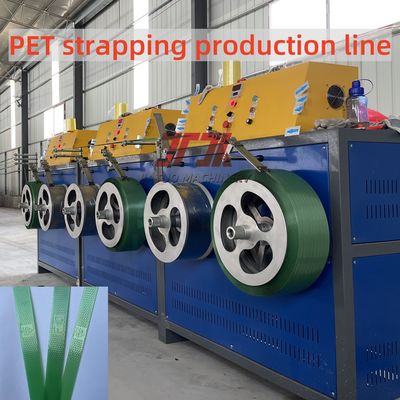

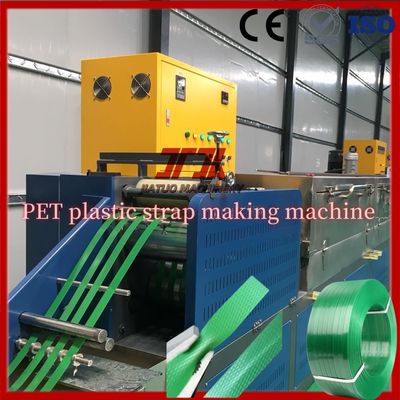

Features of PET Strap Making Machine

1.Screw with compression ratio especially for PP/PET, gradually changing diameter and deeper thread groove at the melting part.

2. Gearbox with hardened gears; Die can be precisely adjusted to ensure stable production and smooth surface of straps.

3.Precise dosing and raw material mixing.
4.Preheat and dry circulating automatically.
5.Even plasticization, stable extrusion and accurate temperature control.
6.Big hauling force stretching device and isolated heating oven.
7.Large capacity stainless steel water tank, automatic liquid level control.

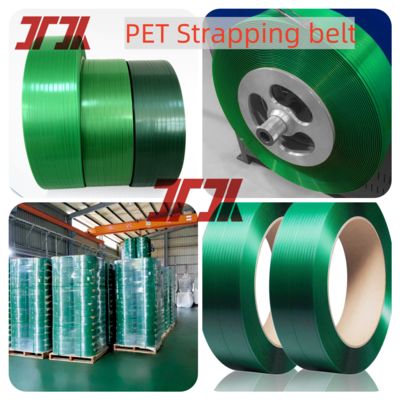

Final Products of PET Strap Band/Belt Extrusion Line/ PET Strap Band/Belt Extrusion Machine

Fully Automatic PET Plastic Packing Strap Making Extruder Machine with automatic filter system 2

FAQ

Q: Is your company factory or trade company?
A: we are factory, we are engaged in this business for 30 years, we also have our own PET PP straps factory.

Q: What is the procedure when you buy our machine?

A:Confirm the technology and machine configure -----confirm price----sign contract and make PI---send down payment - start to make machine---inform you before machine finish-you come our factory to check the machine---you accept the machine ----finish payment-exporting---send our technicians to your factory install the machine---answer your question all the using time and supply spare parts with cost only.

Q: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.

Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)

Fully Automatic PET Plastic Packing Strap Making Extruder Machine with automatic filter system 3
