>150m/Min Running Speed PET Strap Making Machine With GUOMAO Reducer And XINJIE PLC Control
Parameter of PET strap production line
| Model |
Output |
Strap Quantity |
Strap Width |
Raw Material |
| JT-PET90 |
220-250KG/H
|
2straps |
9-32mm |
100% PET crushed material and bottle flakes material
|
| JT-PET110 |
300-330KG/H
|
3straps |
9-32 mm |
| JT-PET125 |
400-450KG/H
|
4straps |
9-32 mm |
PET Strap Production Line Machine List
| Item |
Quantity |
| 1. Lifting mixing drying system and screw feeding system |
1 set |
| 2. 450 type dehumidifier and drying crystallization tank |
1 set |
| 3. single screw extruder |
1 set |
| 4. high-power screen changer |
1 set |
| 5. metering pump with independent speed regulation system |
1 set |
| 6. Special mould for PET strap band |
1 set |
| 7. Cooling water tank |
1 set |
| 8. The first five-roller tractor |
1 set |
| 9. Stretching oven |
1 set |
| 10. The second five-roller tractor |
1 set |
| 11. Embossing machine |
1 set |
| 12. The third five-roller tractor |
1 set |
| 13. Cooling sizing system |
1 set |
| 14. The fourth three-roller tractor |
1 set |
| 15. Single station semi-automatic winding machine |
1 set |

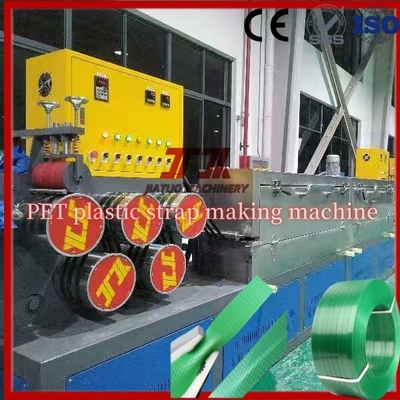

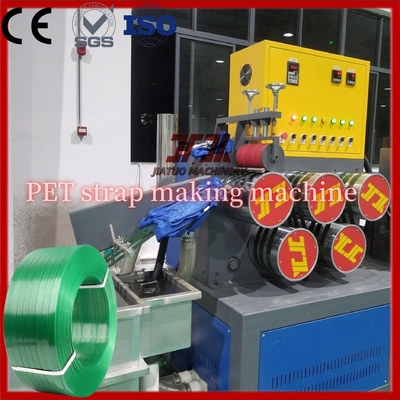

FEATURES OF PET STRAP MAKING MACHINE
1. Using the recycling bottle slices as raw materials by making them melt directly, which reduces the course of raw material-making
2. With the multi-purpose machine, it can produce PET straps in different specifications directly and doesn"t need to change the mould head
3. The products has the same transparency as made from new polyester slices, but the tensile strength and shock resistance are stronger
4. Low energy consumption, high production capability
5. Easy to operate, saves manpower

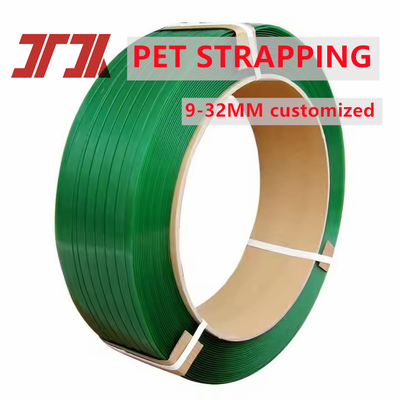

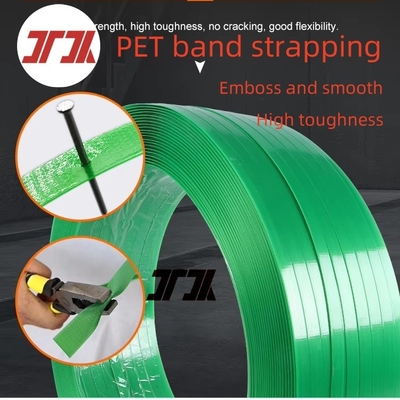

Characters of PET straps
PET Straps have advantages as good stiffness, high temperature resistance. The specific gravity is as 1/5 as steel. The straps can be used for packing in various areas. The characters of such straps are as follows: high tensile strength, small percentage elongation, resistance to impact, not easy to be broken and good softness.
