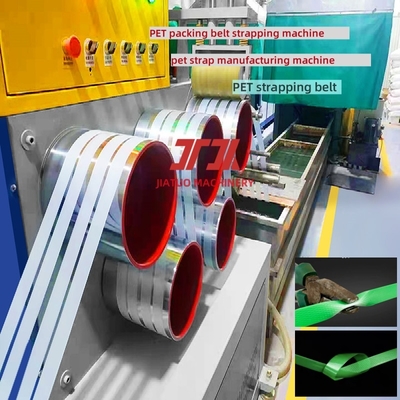

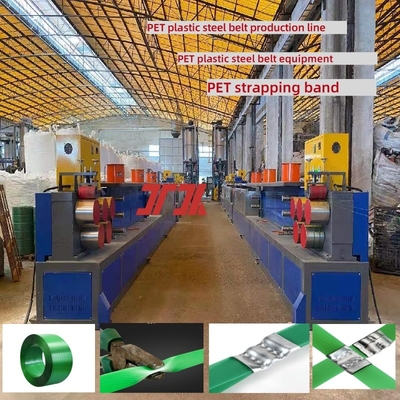

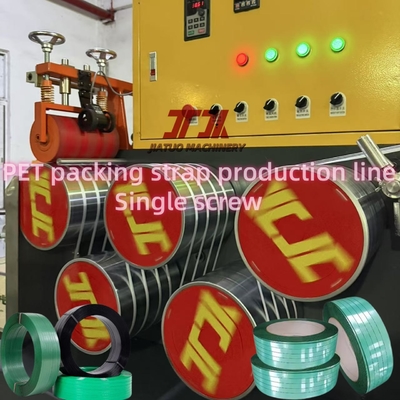

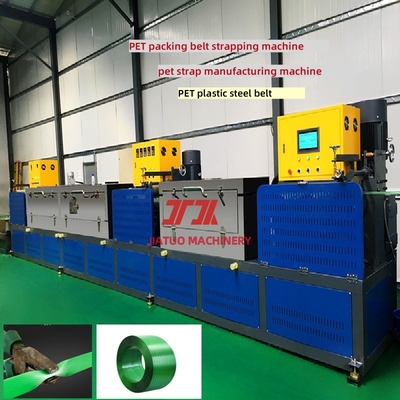

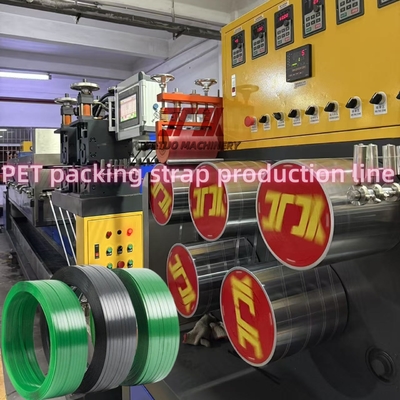

16mm transparent pet strap manufacturing machine high-speed PET strapping equipment PET production line
Product Description of PET strap manufacturing machine:
pet strap manufacturing machine
Features :
1. Good tensile strength----pet strap manufacturing machine has the tensile strength of steel tape, good ductility, good impact resistance, not easy to break, and ensures the safety of product transportation.
2. Small elongation----Although PET strapping belt is a kind of plastic, its elongation changes very little, and its elongation is only 1/6 of polypropylene. It can maintain tension and make the expansion and contraction amount no longer change after packaging.
3. Strong temperature resistance----Experiments have proved that the melting point of PET strapping belt is about 260℃, and it can be used for a long time at 120℃ without deformation, and has good stability.
4. Good economic benefits----The density of PET strapping belt is 1.30~1.38g/cm3, which is only 1/6 of the density of steel tape (7.8g/cm3), equivalent to the length of 6-ton steel tape, and the price per unit length is relatively low.
Raw Materials-------
High-end PET strapping can be produced using 100% PET bottle flakes or crushed material.
PRODUCT DESCRIPTION
| Model |
PET-2 |
PET-3 |
PET-4 |
PET-6 |
PET-8 |
| Raw materials |
Bottle flakes/crushed materials |
| Number of tapes |
2 |
3 |
4 |
6 |
8 |
| Width (mm) |
9-32 |
| Thickness (mm) |
0.4-1.2 |
| Maximum line speed(m/min) |
≧150 |
≧150 |
≧150 |
≧150 |
≧150 |
| Screw Model |
90 |
100 |
125 |
150 |
180 |
| Reducer model |
200 |
250 |
280 |
315 |
350 |
| Dehumidifier |
1000 |
1000 |
2000 |
3000 |
3500 |
| Metering Pumps |
100CC |
| Production capacity /24 H |
5-6T |
7-8T |
10-12T |
12-15T |
18-20T |
pet strap manufacturing machine extrusion process:
Horizontal feeder -------mix different PET crushed materials or bottle flakes evenly.
Drying barrel ------ heat the PET raw materials to dry the moisture.
Dehumidifier--------remove the moisture in the PET raw materials.
Extrusion molding-------make the molten PET belt blank pass through the mold to form.
Cooling water tank-------cool the extruded PET belt blank to ensure its molding.
Tractor--------tow the cooled PET strapping belt to maintain a stable production speed.
Stretcher--------stretch the formed PET belt instantly, about 1-10 times
Oven--------heat the strapping belt to improve the toughness of the PET belt.
Embossing machine------emboss the surface of the strapping belt to increase friction and prevent slipping.
Forming oven--------heat and shape again to make the PET belt more standardized.
Rewinder---------roll the strapping belt into a roll for easy storage and transportation.
FQA:
Q: What is the voltage of the pet strap manufacturing machine ?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the pet strap manufacturing machine?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the pet strap manufacturing machine?
A: 9-32mm
Q: Can the pet strap manufacturing machine be customized?
A: Customization supported
Q: Where does the pet strap manufacturing machine come from?
A: China.
Q: What are the certifications for the pet strap manufacturing machine?
A: ISO CEO certification.
Q: What is the minimum order quantity for the pet strap manufacturing machine?
A: 1 set
Q: What is the weight of the pet strap manufacturing machine?
20T, 40GP container * 3PCS
