Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JT-PP
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50~55 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 500 units/month

High quality 5-15mm PP strapping equipment PP strapping production line Increase production capacity by more than 40-50%

Description
Name: PP Strapping Production Line Material: PP
Processing Type: Extruding Machine Bandwidth: 5-19mm
Application: Sheet,Strap,Pipe,packaging Band,Tape And Strap Driven Type: Electric
Automation: Automatic Voltage: 220V-240V
Warranty: 1 Year Wrapping Machine: Automatic Or Semi-automatic

High quality 5-15mm PP strapping equipment PP strapping production line Increase production capacity by more than 40-50%

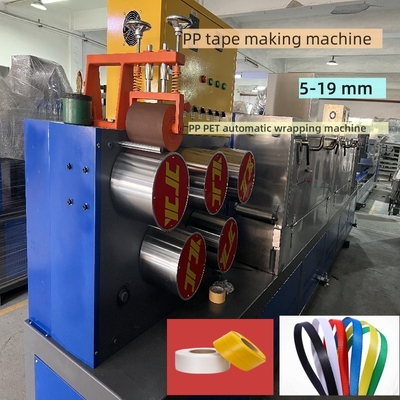

Description of PP strapping machine:



PP strapping equipment can be customized according to customer requirements and can extrude 2-12 PP straps at the same time.

PP strapping tape, also known as polypropylene strapping tape, is a strapping tape made of polypropylene brushed resin as the main raw material. It has superior characteristics:

Good plasticity-----can be formed into various shapes and sizes as needed, width: 5-19mm, thickness: 0.3-1.2mm.

Strong breaking tensile force----has a high load-bearing capacity, suitable for various occasions that require packaging and fixing.

Bending resistance----will not easily break or damage even after multiple bending.

Low density----relatively light weight, easy to carry and use.

PP strapping tape is also very easy to use, so it is widely used in many fields, including but not limited to logistics, packaging, transportation, electronic products, hardware, home appliances, clothing, etc.



High quality 5-15mm PP strapping equipment PP strapping production line Increase production capacity by more than 40-50% 0



                                           EXTRUSION PARAMETERS TABLE



Model PP-2 PP-4 PP-6 PP-8 PP-10 PP-12
Raw material PP polypropylene new material/recycled material
Number of tapes 2 4 6 8 10 12
Width(mm) 5-19 5-19 5-19 5-19 5-19 5-19
Thickness(mm) 0.4-1.2 0.4-1.2 0.4-1.2 0.4-1.2 0.4-1.2 0.4-1.2
Line speed(m/min) ≧260-300
PLC control system PLC PLC PLC PLC PLC PLC
Screw Model 90 110 125 135 135 135
Reducer model 200 220 250 280 280 280
Winding machine Automatic winding machine /Semi-automatic winding machine
Screen Changer Automatic/Manua
Production capacity 24H 2.5-3T 6-7T 8-9T 10-11T 12-13T 13--14T



High-speed PP strapping equipment improvement plan:
1. Say goodbye to the problem of broken straps! This PP strapping equipment uses patented technology to overcome industry problems
2. The width, thickness and thickness can be freely adjusted. The PP strapping tape can be adjusted by the die head or the stretching number.

The equipment supports 0.3-1.2mm thickness and full-specification flexible production.
3. Waste recycling: PP strapping equipment increases the utilization rate of raw materials to more than 40-50%.



High quality 5-15mm PP strapping equipment PP strapping production line Increase production capacity by more than 40-50% 1

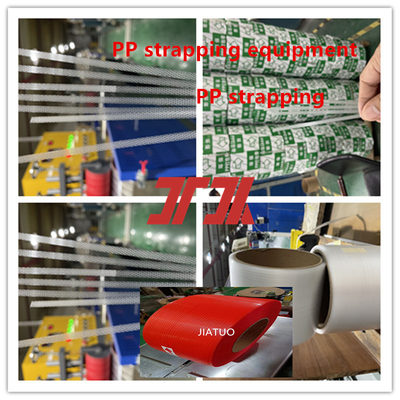

Finished PP belt display:



PP strapping tape can be customized in different colors and printed in different fonts according to customer requirements.

High quality 5-15mm PP strapping equipment PP strapping production line Increase production capacity by more than 40-50% 2



 ABOUT AFTER-SALES

We provide comprehensive technical support and service for our PP Strap Making Machine. Our team of experienced technicians can provide a variety of services, including:

Pre-sales:

1.Layout plan of PP belt making machine.

2.Analysis of the cost of PP tape making machine.

3.Raw materials that can be used for PP tape making machine.

After-sales service:

1.Water and electricity circuits of PP belt making machine, circuit drawings, etc.

2.Installation, commissioning and training of PP belt making machine.

3.Maintenance service of PP belt making machine.

4.Regular maintenance and repair

5.Troubleshooting and diagnosis

6.Software updates and upgrades

7.Spare parts and accessories

8.Training and technical advice

High quality 5-15mm PP strapping equipment PP strapping production line Increase production capacity by more than 40-50% 3



FAQ:

Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping tape??
A: L:36 M.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.

Q:What does the wrapping machine part of the PP strapping equipment look like?

A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
