200kg/H PP Strap Making Machine With Automatic Winding Making Straightness PP Strapping 5-19mm

200kg/H PP Strap Making Machine With Automatic Winding Making Straightness PP Strapping 5-19mm
200kg/H PP Strap Making Machine With Automatic Winding Making Straightness PP Strapping 5-19mm 200kg/H PP Strap Making Machine With Automatic Winding Making Straightness PP Strapping 5-19mm 200kg/H PP Strap Making Machine With Automatic Winding Making Straightness PP Strapping 5-19mm 200kg/H PP Strap Making Machine With Automatic Winding Making Straightness PP Strapping 5-19mm 200kg/H PP Strap Making Machine With Automatic Winding Making Straightness PP Strapping 5-19mm

Large Image :  200kg/H PP Strap Making Machine With Automatic Winding Making Straightness PP Strapping 5-19mm

Product Details:
Place of Origin: Shenzhen, China
Brand Name: JIATUO
Certification: CE, ISO
Model Number: JT-PP90
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50~55 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram

200kg/H PP Strap Making Machine With Automatic Winding Making Straightness PP Strapping 5-19mm

Description
Product Type: Pp Strapping Band Production Line Making Machine Extruder Screw Design: Single-screw,Double-screw,single Or Double
Raw Material: PP Processing Type: Extruding Machine
Application: Sheet,Strap,Pipe,packaging Band,Tape And Strap Voltage: 220V-240V
Driven Type: Electric Automation: Automatic
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas

200kg/H PP Strap Making Machine With Automatic Winding Making Straightness PP Strapping 5-19mm

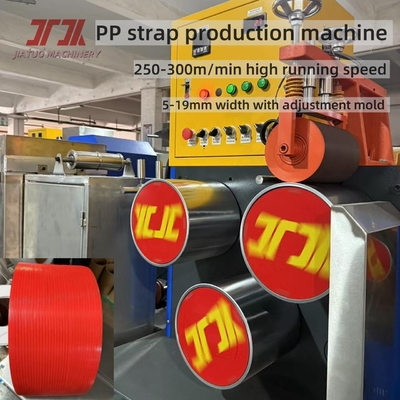

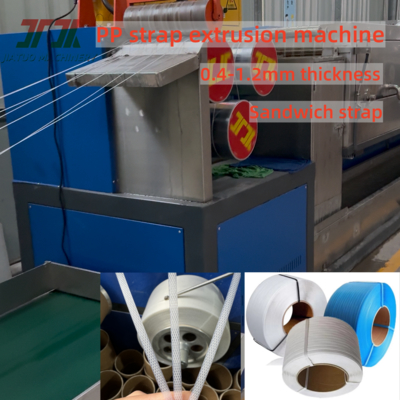

Product description of PP strap making machine


Automatic operation and labor saving, High production, Reasonable drive system and unique oven. Energy saving
Safety, environment protection and economy, Produce lighter weight straps

Produce manual and automatic machine straps, Extrusion capacity: 100kg / h or 250kg / h or 350kg / h 400kg / h
Straps specification: 5-19mm Width,0.4-1.2mm Thickness.



Parameter of PP 2strap output making machine



Model PP-90 PP-100
Extruder model JT-90 JT-100
Raw materials PP pellet,recycled material PP pellet,recycled material
Extrusion quantity 2 4
Product width(mm) 5-19mm 5-19mm
Product thickness(mm) 0.4-1.2mm 0.4-1.2mm
Capacity extruder(kg/h) 100-120kg/H 230-260kg/H
Line speed(m/min) 250-300m/min 250-300m/min
Total power(kw) 60 90
Length production line(m) 26 28
Materials cool water tank stainless steel stainless steel

200kg/H PP Strap Making Machine With Automatic Winding Making Straightness PP Strapping 5-19mm 0

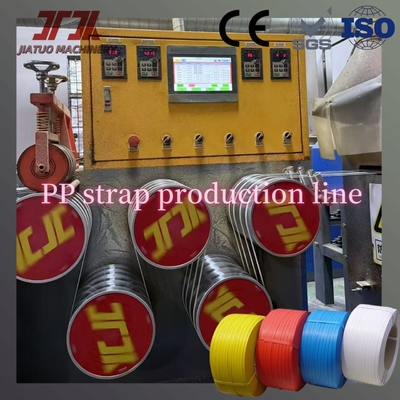

Feature of PP belt production line



1. PP raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and drying that save a large number of equipment investment and reduce the production cost by 30%;
2.Utilizing the 100% recycled material as raw materials that reducing the cost to a great extent;
3.With the multi-purpose machine, produce the PP straps in different specifications directly and don not need to change the mould head;
Comparing with new polyester slice, the transparency of products is just the same, but the tensile strength and shock
4.resistance are up to the international grade;
5.Low Energy consumption, but high production capability;
6.Easy to operate, save the manpower and two persons for one production line on average.

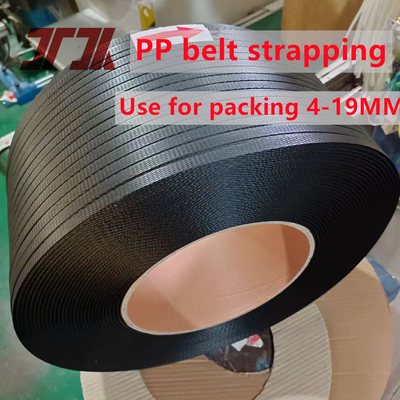

Application of PP strapping



200kg/H PP Strap Making Machine With Automatic Winding Making Straightness PP Strapping 5-19mm 1




FAQ



1. For PP(polypropylene) strapping band extrusion line
* What about the output of PP strapping band extrusion line? 150kg/hr, 280kg/hr, 500kg/hr.
* What about the size of strap that the PP strap machine can make? Width: 5-25mm; Thickness: 0.35-1.0mm.
* What about the installation power of the PP strap machine? 135kw/155kw/195kw/439kw.

2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 200kg/hr, 400kg/hr, 600kg/hr, 800kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.35-1.2mm.
* What about the installation power of the PET strap machine? 215kw/285kw/352kw/900kw.

200kg/H PP Strap Making Machine With Automatic Winding Making Straightness PP Strapping 5-19mm 2
