3.5m2 Filter Area PET Strap Making Machine With Fully Automatic Winder Make Strong Strength Strap 350-1300kgf
Process Flow of PET Packing Strap Production Line
①Material→②Stirring raw material→③Pre crystallization drying→④vacuum dehumidification→⑤Extruding→⑥cooling and forming →⑦ oven preheating →⑧ primary stretching →⑨secondary stretching →⑩ embossing → ⑪shaping→⑫ cooling→ ⑬winding
Parameters of PET 1 to 2 production machine
| Item |
JTPET-90 |
| Screw design |
Single screw |
| Straps Qty. |
2 straps |
| Output/Day |
5.5-6T/24 hours |
| Screw Dia. |
90mm |
| Winder Qty. |
2 sets |
| Material used |
100% Recycled Bottle Flakes/Virgin Material/mixed with |
| Running power |
110-120kw |
| Installed power |
200kw |
| Strap specifications |
Width 9-32mm thickness 0.4-1.2mm |
| Workshop area |
L (55m) ×W (2m) ×H (7m) |
| Electric components |
Schneider |
| Materials |
PET raw material or 100% PET bottle flakes recycled |

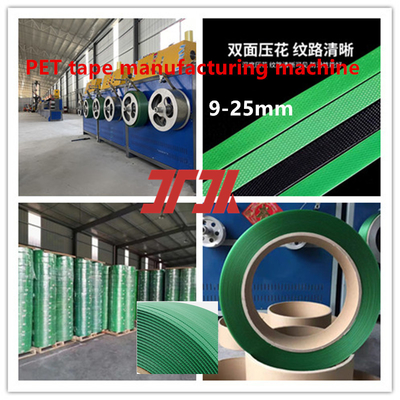

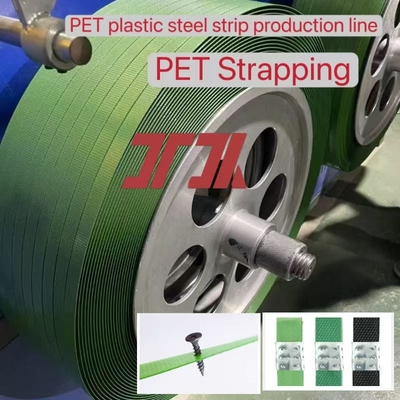

Final Products of PET Strap Band/Belt Extrusion Line/ PET Strap Band/Belt Extrusion Machine

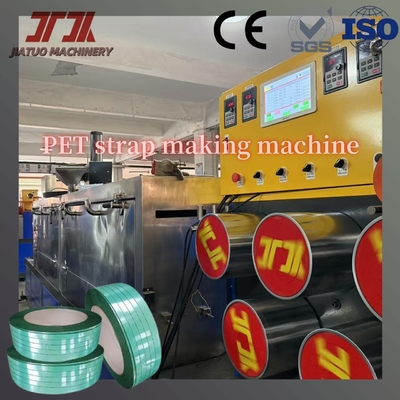

Features of PET Strap Making Machine
1.Screw with compression ratio especially for PP/PET, gradually changing diameter and deeper thread groove at the melting part.
2. Gearbox with hardened gears; Die can be precisely adjusted to ensure stable production and smooth surface of straps.
3.Precise dosing and raw material mixing.
4.Preheat and dry circulating automatically.
5.Even plasticization, stable extrusion and accurate temperature control.
6.Big hauling force stretching device and isolated heating oven.
7.Large capacity stainless steel water tank, automatic liquid level control.
Advantages for PET Strap Making Machine
-
Special twin screw extrusion technology and single screw extrusion technology can be choosing as per customer needs.
-
Process 100% recycled PP/PET bottle flakes or pellets.
-
Even plasticization and stable extrusion with PLC automatic control for the full line.
-
Melt pump ensure continuously stable producing.
-
1-6 straps extruding, according to customer request and straps size.
- Produce monofilament by changing some parts.
- Servo or torque motor for winding machine are available.
Machine Products Description
Applications: widely used in steel, chemical industry, aluminum, paper making, brick kiln, tobacco, electronics, textile and timber industries.
Service and Support:
1. Pre-sales Service:
* Showing the production video
* Supply the FAQ questions
* Project evaluation
* Marketing trends analysis
* Showing our customer's factory in local
* Visit our company
2. During-manufacturing
* Provide layout and engineering condition
* Inform the schedule of production
* Test machine before shipment
* Sending photos before loading
3. After-sales Service
* Overseas installation
* Training the workers
* Build customer database to tracking machine conditions
* Space parts supply in soonest time
* Visit customer and solve the problems they have
* Teach the products care and maintenance skills
FAQ:
Q: Is your company factory or trade company?
A: we are factory, we are engaged in this business for 20 years, we also have our own PET straps factory.
Q: What is the procedure when you buy our machine?
A:Confirm the technology and machine configure -----confirm price----sign contract and make PI---send down payment - start to make machine---inform you before machine finish-you come our factory to check the machine---you accept the machine ----finish payment-exporting---send our technicians to your factory install the machine---answer your question all the using time and supply spare parts with cost only.
Q: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)
Company Profile:
Shenzhen Jiatuo Plastic Machinery Co., Ltd, specilizing in PP & PET Strap production and development for nearly 30years.
Products consist of PET/PP Strap Making Machine, Rattan Making Machine, Handheld Strapping Machine, Plastic Coating Machine, high-precision Plastic Embossing Roller, PP & PET Strap Winder, Tensile Testing Machine, Strap Printing Machine, Plastic Extrusion Screen Changer, Extrusion Machine Parts, automatic suction machine, screw feeder, crusher, etc; Automatic wrapping machine, automatic packing machine, automatic packing machine for all bags and automatic packing machine; High grade, high-strength and environment-friendly PP machine, PP packing belt, pet plastic steel belt and other packaging materials.
The target of Jiatuo Machinery Co., Ltd. is to offer the best quality machines to the customers from all over the world. With the advanced technology, experienced engineers and skilled workers, we have the capability to manufacture specific machines according to customer's requirement.
Excellent quality and professional service is the promise made by Jiatuo Machinery Co., Ltd. to new and old friends.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
