Product Details:
|
Product Type: | PET Strap Making Machine | Raw Material: | PET Flakes Or 100% Recycled Material |
---|---|---|---|
PET Thickness Range: | 0.6-12mm | PET Strap Width: | 9-32mm |
Capacity: | 200kg/h | Driven Type: | Electric |
Voltage: | According To Customer's Factory | Motor: | Siemens |
Product Color: | Green/Pink/yellow/black | Application: | Packaged Material |
After-sales Service Provided: | Video Technical Support, Online Support | Warranty: | 1 Year |

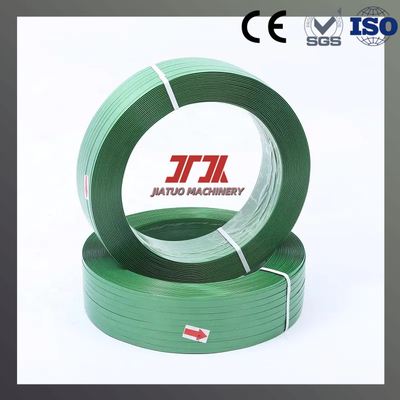

9-32mm Width Plastic Pet Packing Strap Making Machine With PLC Control And Strong Strength 300-950kg
PRODUCT DESCRIPTION
This machine is main used to make pet strap ,pet packing strap . Adopt the plc control the whole line do the auotmatic production it use the melting pump and pressure sensor ensure the production stable and strap quality control
The raw material you can use is 100% recycled material/ bottle flakes material,or virgin material or mixed with each other.

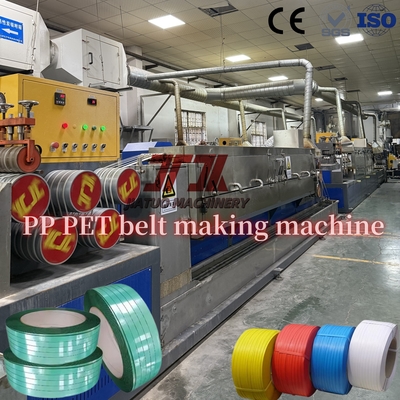

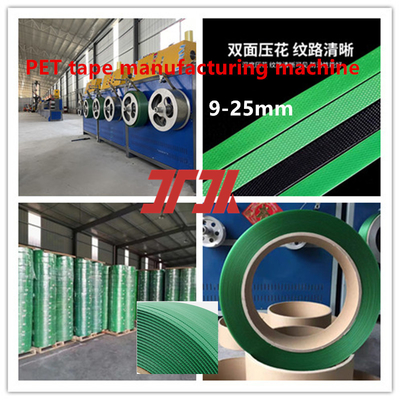

PET Strap Production Line Machine List
NO. | Item | Specification |
1 | Power | According to customer's factory voltage |
2 | Material | PET raw material or 100% PET bottle flakes recycled |
3 | Capacity |
PETJT90:220-250kg/h PETJT110:300-330kg/h PETJT125:400-450kg/h |
4 | Product size |
Width:9-32mm Thickness:0.6-12mm |
6 | Mid-height of extruder | 7000mm |
7 | Installation power |
PETJT90:200KW PETJT100:250KW PETJT125:300KW |
8 | Humidity | <85% |
9 | Temperature | 0-40 degree |
10 | Cooling tower capacity | 30T/H or 50T/H |
11 | Installation Dimensions |
PETJT90:45*2.0*7.0M PETJT100:45*2.0*7.0M PETJT125:60*3.0*8.0M |
12 | Product color | Green/Black/Pink/Yellow |
13 | Factory dimension |
35m*(3~6)m*(4~6)m 45m*(3~6)m*(4~6)m If your factory not big enough,please contact with us,our engineer can according to your size to design |
Advantages of PET strap
Features of PET packing strap production line:
