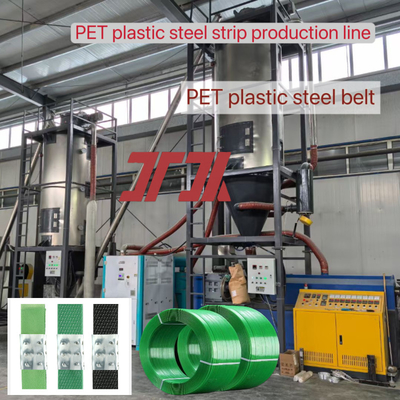

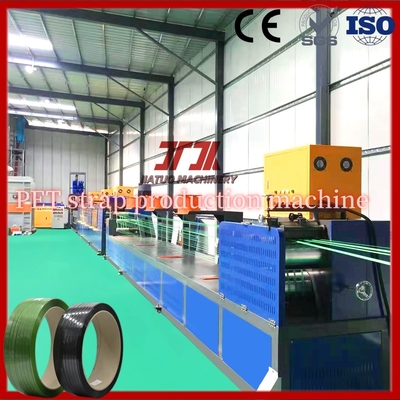

Factory customized 9-32mm high speed PET plastic strapping production line PET strapping equipment with automatic wrapping machine
PRODUCT DESCRIPTION
1. Extrusion process--------PET tape making machine uses a special screw for extruder, which is evenly extruded by heating and melting.
2. Cooling and solidification------- The extruded PET tape embryo is then cooled and solidified using a cooling water tank or other refrigerator to ensure that the material maintains its shape and characteristics.
3. Stretching and orientation------- PET tape making machines usually include stretching and orientation sections to improve the tensile strength, flexibility and overall performance of the PET tape. This process aligns the molecules in the PET material to enhance its mechanical properties.

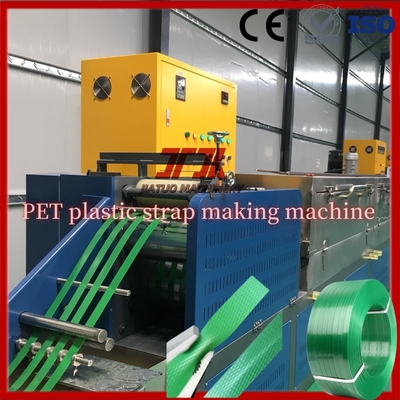

4. Embossed--------PET strap making machines may have an embossing section that creates a textured or patterned surface on the PET strap to improve grip and aesthetics.
5.Winding and Cutting------After producing the PET strap, the machine typically includes a winding and cutting mechanism to roll the strap into coils of the desired length for packaging and distribution.
6.Adjustable Parameters------ PET strap making machines typically offer PLC adjustable parameters such as strap width, thickness, color, and tension to customize the strap to specific requirements.
Main features of PET steel plastic belt equipment:
Efficient production---- PLC control, high degree of automation, fast production speed.
High-quality products----The produced plastic steel belt has high strength, good toughness and corrosion resistance.
Energy saving and environmental protection------using advanced technology, low energy consumption and high output.
Easy operation------The equipment is automatically wound, simple to operate and easy to maintain.
PET Strap Production Line Machine List
| Item |
Quantity |
| Lifting mixing drying system and screw feeding system |
1 set |
| 450 type dehumidifier and drying crystallization tank |
1 set |
| single screw extruder |
1 set |
| high-power screen changer |
1 set |
| metering pump with independent speed regulation system |
1 set |
| Special mould for PET strap band |
1 set |
| Cooling water tank |
1 set |
| The first five-roller tractor |
1 set |
| Stretching oven |
1 set |
| The second five-roller tractor |
1 set |
| Embossing machine |
1 set |
| The third five-roller tractor |
1 set |
| Cooling sizing system |
1 set |
| The fourth three-roller tractor |
1 set |
| Single station semi-automatic winding machine |
1 set |
Advantages of PET plastic steel belt equipment:
Economical and efficient: With long service life, low maintenance requirements and high degree of automation, it is an economical and efficient equipment for the use of packaging materials.
Efficient: High strength and durability ensure efficient material handling, sustainable production and reduced downtime.
Safe: The solid structure ensures safe and reliable operation and minimizes the risk of belt failure.
Energy saving: Energy saving and environmental protection, high output and low power consumption.
About size:
PET is Length 4000mm, PP 2000mm.
It is stainless steel materials.
The water is heated by water tank heating unit
The haul off rollers is five rollers, working to take PET or PP strap materials out of water tank
Application areas:
Packaging industry: used for packaging of various items, such as building materials, metals, paper products, etc.
Logistics industry: used for fixing and bundling during cargo transportation.
Other industries: such as home appliances, food, chemicals, etc.
FQA:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
