High Quality 400kg/H PET Automatic Strapping Band Belt Manufacturing Making Extrusion Machine With PLC Control System
Main description of PET Strap Band/Belt Extrusion Line/PET Strap Band/Belt Extrusion Machine
-----PET strapping machine,using the 100% recycled material(bottle flakes material, PET crushed material)as raw materials by making them melt directly,which reduces the course of raw material-making.
------Can produce 9-32mm strap, 1/2/3/4/6/8 lines
------High tension force according to your needs
-----Low energy consumption, high production capability.
------Easy to operate ,save manpower

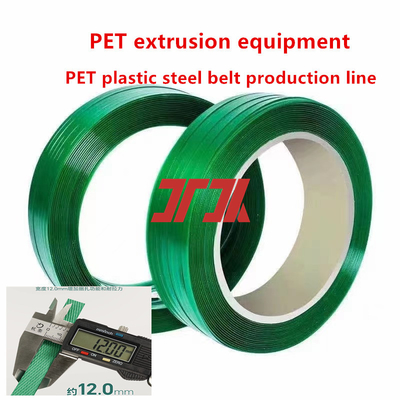

Application of PET strap
PET packing straps are widely used as a high-performance alternative to steel straps in international packing applications. They offer excellent tensile strength, flexibility, and a low elongation rate, along with superior heat resistance, anti-rust properties, and cost efficiency.
These straps are ideal for bundling a variety of materials, including glass, steel, stone, construction materials, chemical fibers, paper, tobacco, and agricultural products, making them a versatile solution across multiple industries.
Technical parameters of PET belt 3output production line
| Raw material |
PET tackifier material or PET recycled material |
| Width of final product |
9-32mm |
| thickness of final product |
0.4-1.2mm |
| Max Capacity |
300-330kg/h |
| Manpower |
1-2 persons/shift |
| Machine Dimension |
55*2*8m |
| BRANDS |
| Gearbox: |
GUOMAO |
| Contactor: |
Schneider |
| Temperature controller |
Fotek |
| Inverter |
INVT |
Advantage of JIATUO PP PET strap making machine
1.Enhanced Efficiency: The Fully Automatic Single Double PP Strap Extrusion Line/PET Packing Belt Strapping Production Line Manufacturing Machine is designed to enhance efficiency, making it ideal for businesses in the Machinery Repair Shops and Building Material Shops industries.
2.Robust Performance: With a powerful motor (22 kW, 3 PH 380V 50Hz), this machine is built for durability and can withstand heavy usage. Its core components, including the bearing, motor, pump, gear, PLC, and other essential parts, are all covered under a 1-year warranty.
3.Multifunctional Capabilities: The multifunctional nature of the machine allows it to handle a variety of materials, including PP woven belt, PET packing belt, and wire. It is equipped with a double-screw co-rotating parallel twin-screw design that ensures optimal performance and efficiency.
4.Customization and Automation: As a custom request product, the manufacturer can accommodate specific needs and requirements. The user can choose from a variety of screw diameters and l/d ratios to ensure optimal performance for their specific application.

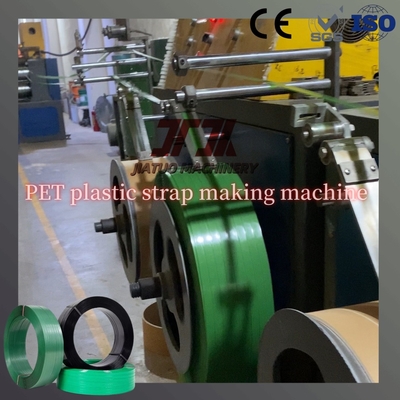

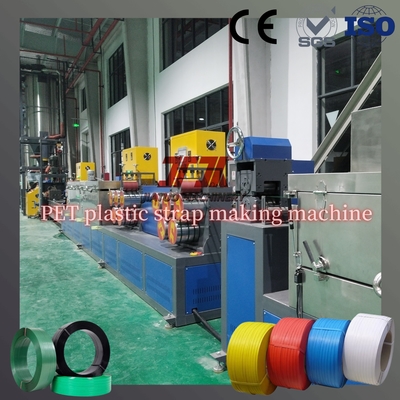

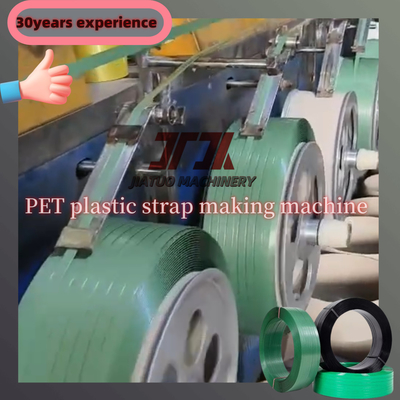

Production description of PET belt making machine
This PET strap band production line adopts high speed single screw sepcially used for the extruder, matching with different standard of sheet die and auxiliary device, it is used to extrude PET strap band. Production can use 100% recycled material to obtain a high add value commodity like strapping band. PLC manages automatically the extruder's working parameters in according with the running condition;material treatment, extrusion, stretching, annealing and taking up units are all synced with the PLC. All components are controlled and monitored through PLC. PET or PP straps can be produced with the same technology,to change line set-up from one to the other only take in few minutes.
Our Workshop
FAQ
1. Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2. Do you have quality certificate?
Yes we have CE, SGS etc.
3. What's the delivery time?
Around 40~50days, however, based on order.
4. What is your overseas service?
We will provide high quality overseas service ,our technical staff will be able to provide you with technical support, for you personally to overseas assembly and test equipment
