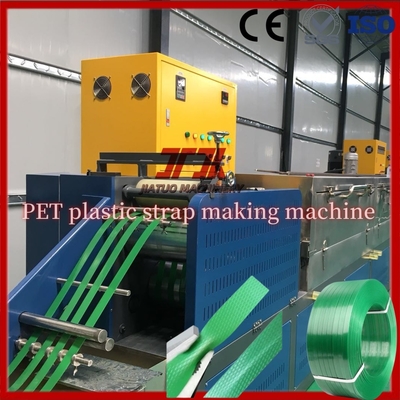

PET Package Pallets Strap Extrusion Making Machine With Automatic Winder Make Strong Tension Strap 350-950kg
Main description of PET Strap Band/Belt Extrusion Line/PET Strap Band/Belt Extrusion Machine
-----PET strapping machine,using the 100% recycled material(bottle flakes material, PET crushed material)as raw materials by making them melt directly,which reduces the course of raw material-making.
------Can produce 9-32mm strap, 1/2/3/4/6/8 lines
------High tension force according to your needs
-----Low energy consumption, high production capability.
------Easy to operate ,save manpower

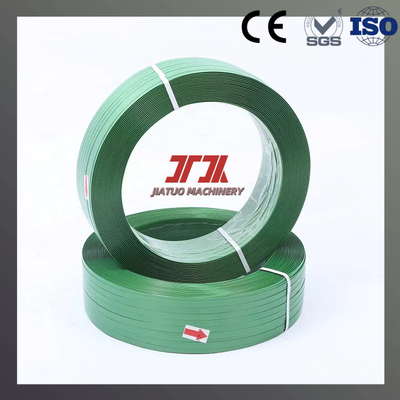

Application of PET strap
PET packing straps are widely used as a high-performance alternative to steel straps in international packing applications. They offer excellent tensile strength, flexibility, and a low elongation rate, along with superior heat resistance, anti-rust properties, and cost efficiency.
These straps are ideal for bundling a variety of materials, including glass, steel, stone, construction materials, chemical fibers, paper, tobacco, and agricultural products, making them a versatile solution across multiple industries.
Technical parameters of PET belt 3output production line
| Raw material |
PET tackifier material or PET recycled material |
| Width of final product |
9-32mm |
| thickness of final product |
0.4-1.2mm |
| Max Capacity |
300-330kg/h |
| Manpower |
1-2 persons/shift |
| Machine Dimension |
55*2*8m |
| BRANDS |
| Gearbox: |
GUOMAO |
| Contactor: |
Schneider |
| Temperature controller |
Fotek |
| Inverter |
INVT |

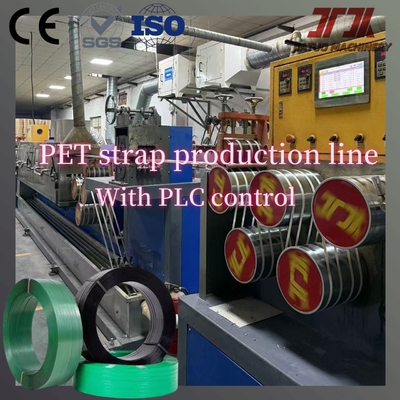

Each parts of PET strap production line

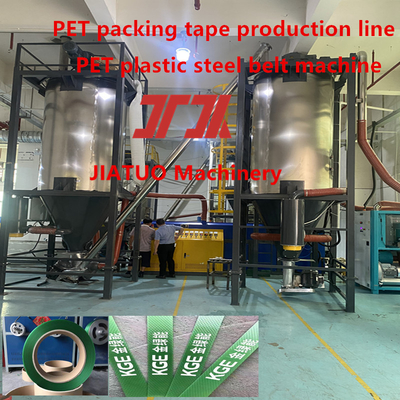

Dehumidifier Crystallization:
The raw material is dried by the dehumidifier, with a dew point below 40°C ensuring material humidity remains under 40 PPM for effective condensation polymerization.
The enclosed and circular conveyor system prevents air exposure, optimizing drying efficiency.
Extruder Screw:
A specially designed extruder screw for PET production enhances material separation and mixing. Automatic material feeding ensures smooth and stable PET strap production.
Mould:
The extrusion die and mould are precision-engineered for stable production and smooth strap surfaces.
An improved screen changer allows for non-stop operation with zero material leakage.
Cooling:
The water tank cools the PET straps, while consistent water temperature enhances molecular tension strength.
Heating:
A heating oven performs thermal annealing to eliminate band distortion caused by long-term storage.
Five Roll Wheels:
Larger haul-off rollers ensure superior product quality, while advanced rolling technology eliminates traditional issues like high gradient and bending deflection.
The embossing roller produces clear, even patterns.
Winding:
A dual-station automatic winder offers easy and efficient operation.
Our Commitment:
We provide turnkey solutions worldwide, supporting customers from installation to full production.
Our Workshop
FAQ
1. Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2. Do you have quality certificate?
Yes we have CE, SGS etc.
3. What's the delivery time?
Around 40~50days, however, based on order.
4. What is your overseas service?
We will provide high quality overseas service ,our technical staff will be able to provide you with technical support, for you personally to overseas assembly and test equipment
