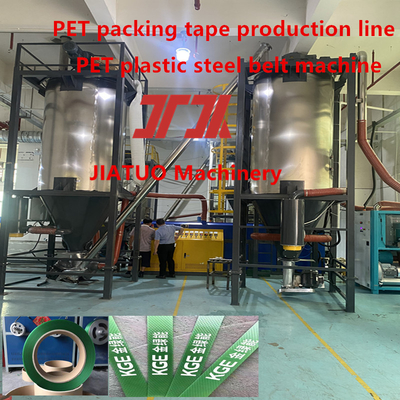

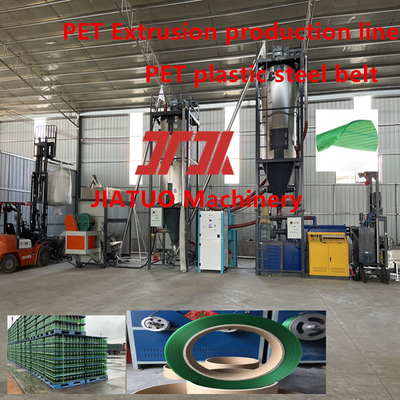

9-32mm single screw PET plastic steel belt production equipment PET strapping belt production line PET packaging belt with chemical fiber screen changer
Description of PET plastic steel belt equipment:
PET plastic steel belt production line features:
1. Good tensile strength----PET strapping tape production line has the tensile strength of steel tape, good ductility, good impact resistance, not easy to break, and ensures the safety of product transportation.
2. Small elongation----Although PET strapping tape is a kind of plastic, its elongation changes very little, and its elongation is only 1/6 of polypropylene. It can maintain tension and make the expansion and contraction amount no longer change after packaging.
3. Strong temperature resistance----Experiments have proved that the melting point of PET strapping tape is about 260℃, and it can be used for a long time at 120℃ without deformation, and has good stability.
4. Good economic benefits----The density of PET strapping tape is 1.30~1.38g/cm3, which is only 1/6 of the density of steel tape (7.8g/cm3), equivalent to the length of 6-ton steel tape, and the price per unit length is relatively low.
EXTRUSION PARAMETERS TABLE
| Model |
PET-2 |
PET-3 |
PET-4 |
PET-6 |
PET-8 |
| Raw materials |
Bottle flakes/crushed materials |
| Number of tapes |
2 |
3 |
4 |
6 |
8 |
| Width (mm) |
9-32 |
| Thickness (mm) |
0.4-1.2 |
| Maximum line speed(m/min) |
≧150 |
≧150 |
≧150 |
≧150 |
≧150 |
| Screw Model |
90 |
100 |
125 |
150 |
180 |
| Reducer model |
200 |
250 |
280 |
315 |
350 |
| Dehumidifier |
1000 |
1000 |
2000 |
3000 |
3500 |
| Metering Pumps |
100CC |
| Production capacity /24 H |
5-6T |
7-8T |
10-12T |
12-15T |
18-20T |
Why does PET plastic steel belt need to add toughening agent, and what is the role of toughening agent?
The main functions of PET toughening agents:
Improve impact resistance----By increasing the toughness of PET, its brittle fracture when impacted is reduced.
Improve processing performance----Reduce processing temperature, reduce energy consumption, and improve fluidity to make processing smoother.
Enhance flexibility-----Make PET materials softer and suitable for applications that require flexibility.
Improve heat resistance-----Some toughening agents can improve the heat resistance of PET, so that it can maintain stable performance at high temperatures.
Optimize mechanical properties-----Improve mechanical properties such as tensile strength and bending strength, and enhance the durability of materials.
Reduce stress cracking----Reduce the risk of PET cracking under stress and extend its service life.
Maintain transparency----Some toughening agents do not affect the transparency of PET while improving toughness.
Environmental protection and recyclability-----Some toughening agents help improve the environmental protection and recyclability of PET.
Summary: PET toughening agents expand the application range of PET by improving impact resistance, processing performance, flexibility, heat resistance, etc., making the finished product softer and less prone to cracking.
.
Company advantages:
The equipment is equipped with a PLC human-machine interface, which is easy to operate and debug. The equipment has an exclusive parameter memory system, which can store data for each specification after production, and can directly adjust the parameters for the next production.
The embossing wheel is processed by equipment imported from Germany, which is durable

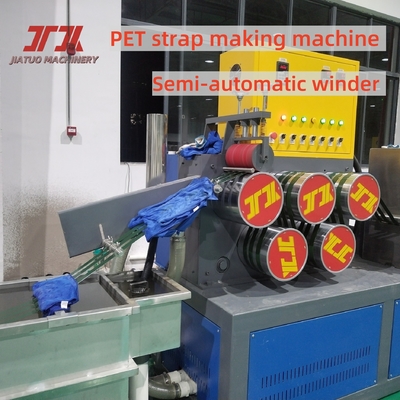

The equipment is equipped with a correction device, and the winding is neat and knife-cut.
After-sales service
Our PET plastic steel belt equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic steel belt equipment.
2. Analysis of finished product manufacturing costs of PET plastic steel belt equipment.
3. Analysis of raw materials used in PET plastic steel belt equipment.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel belt equipment.
2. Installation, commissioning and training of PET plastic steel belt equipment.
3. Maintenance service of PET plastic steel belt equipment.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FQA:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET plastic steel belt equipment?
A: 9-32mm
Q: Can the PET plastic steel belt equipment be customized?
A: Customization supported
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for the PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
