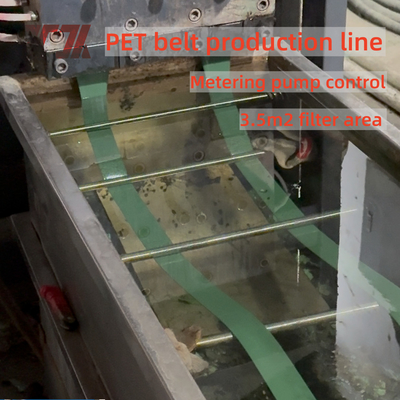

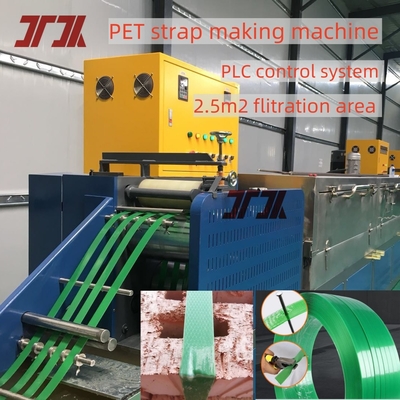

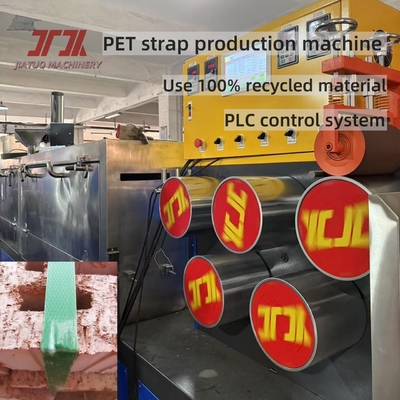

9-32mm PET Packing Strap Production Line Of Pet Strap With PLC Control System
PET Packing Strap Production Line Description
Machine Purpose:
This machine is primarily used for manufacturing PET straps and PET packing straps.
Control System:
The entire production line is PLC-controlled, enabling fully automated operation.
Key Features:
Material Compatibility:
The machine can process 100% recycled material (from waste PET bottles), virgin PET material, or a mixture of both.
PET Output 3 Strap Production Line Configuration Reference
|
Item
|
Name
|
Quantity
|
|
1
|
Dehumidification and drying system
|
1 set
|
|
2
|
Oil and dust filter
|
1 set
|
|
3
|
Horizontal mixer(5000L)
|
1 set
|
|
4
|
Pre-drying tower(5000L)
|
1 set
|
|
5
|
Screw Feeder
|
3 set
|
|
6
|
Barrel(5000L)
|
1 set
|
|
7
|
¢100mm Extruding Machine
|
1 set
|
|
8
|
Melt pump
|
1 set
|
|
9
|
Single cylinder filter
|
1 set
|
|
10
|
PET Mould output 2straps
|
1 set
|
|
11
|
Cooling water tank
|
1 set
|
|
12
|
Stretching oven
|
1 set
|
|
13
|
Five roller gearbox
|
3 set
|
|
14
|
PLC electrical control system
|
1 set
|
|
15
|
Forming oven
|
1 set
|
|
16
|
Double disk winder
|
3 set
|
Process Flow of PET belt making machine
① feeding material→② mixing raw materials→③ raw material pre-drying→④ vacuum dehumidification of raw materials→⑤ raw materials melting extrusion→⑥ material embryo expression(with embryo) cooling molding→⑦oven preheating→⑧first stretching→⑨second stretching→⑩embossing→⑪ oven tempering to set the shape→⑫ fans cooling reduce temperature→ ⑬winding(finished product)
PET packaging belt production line Application & Features
Product Advantages:
High tensile strength
Low elongation rate
Impact-resistant and durable
Cost-effective
Excellent flexibility
Easy and safe operation
Applications:
An ideal steel belt alternative, widely used in:
Industries: Papermaking, wood products, textiles, non-ferrous metals, canned goods, chemicals, metallurgy, power cables, aluminum, and plastic profiles.
Packaging: Compatible with various pallets and bundling applications.
Usage & Compatibility:
Connection: Supports standard steel fasteners or hot-melting joining.
Machinery: Works with both manual strapping tools and industrial automatic packing machines.
PET strapping finished products
As you can see that the PET strapping can be available in different colors with different patterns, or can be printed with your company logo or any logo you want to display according to your requirements, the different colors depend on the color masterbatch you use. And we are using constant force winding system with unique design parameters in our machine, which meets high output, excellent winding effect and flat and beautiful on both sides.
