9-32mm Width Customized PET 3 Straps Output Making Machine With Large Extrusion 400kg/H

9-32mm Width Customized PET 3 Straps Output Making Machine With Large Extrusion 400kg/H
9-32mm Width Customized PET 3 Straps Output Making Machine With Large Extrusion 400kg/H
9-32mm Width Customized PET 3 Straps Output Making Machine With Large Extrusion 400kg/H 9-32mm Width Customized PET 3 Straps Output Making Machine With Large Extrusion 400kg/H 9-32mm Width Customized PET 3 Straps Output Making Machine With Large Extrusion 400kg/H 9-32mm Width Customized PET 3 Straps Output Making Machine With Large Extrusion 400kg/H 9-32mm Width Customized PET 3 Straps Output Making Machine With Large Extrusion 400kg/H 9-32mm Width Customized PET 3 Straps Output Making Machine With Large Extrusion 400kg/H

Large Image :  9-32mm Width Customized PET 3 Straps Output Making Machine With Large Extrusion 400kg/H

Product Details:
Place of Origin: SHENZHEN CHINA
Brand Name: JIATUO CHINA
Certification: CE, ISO
Model Number: JT-PET100
Document: Specification of PET Strap ...ne.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plastic film or other standard package for sea shipping
Delivery Time: 50DAYS
Payment Terms: L/C, T/T

9-32mm Width Customized PET 3 Straps Output Making Machine With Large Extrusion 400kg/H

Description
Warranty: 1 Year Screen Changer: Automatic/Manual
Keywords: Strap Making Machine Key Selling Points: High Productivity
Automatic Grade: Fully Automatic/ Semi Automatic Inverter: INV
Trademark: JIATUO Strap Width: 5-32mm
Strap Thickness: 0.4-1.2mm Worn Parts: Provide Some For Free
Motor: Siemens Number Of Extruded Strap: 2/3/4/6/8
Highlight:

3 Straps Output Strap Making Machine

,

32mm Customized PET Strap Making Machine

,

400kg/H PET Strap Making Machine

9-32mm Width Customized PET 3 Straps Output Making Machine With Large Extrusion 400kg/H

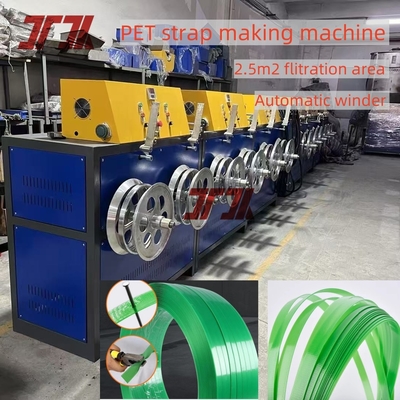

Product Description of PET strap making machine



This PET strap making machine is primarily designed for manufacturing PET strapping (also known as PET packing strap or PET band), widely used in packaging and bundling industries.



Key Features of PET belt production line



✔ PLC-controlled automation – Ensures smooth, fully automatic production.
✔ Precision melt pump & pressure sensor – Guarantees stable output and consistent strap quality.
✔ Material flexibility – Compatible with:

1. 100% recycled PET flakes (from waste bottles)

2. Virgin PET material Or a mix of both



9-32mm Width Customized PET 3 Straps Output Making Machine With Large Extrusion 400kg/H 0



Machine parameter of PET 3 belts extrusion line



Serial number Product name Quantity
1 Screw feeder 3sets
2 Horizontal mixer(2500L) 1set
3 Horizontal mixer(3000L) 1set
4 Pre-drying tower(3000L) 1set
5 Dehumidification and drying system 1set
6 Oil and dust filter 1set
7 Extruder part 1 set
8 Reducer model: 225 type 1 set
9 Screw: ¢ 100mm 1 set
10 Main engine motor 1 set
11 100CC Melt pump 1set
12 Single cylinder filter 1 set
13 Extrusion die head 1 set
14 Cooling water tank 1 set
15 Stretching oven 1 set
16 Forming oven part 1set
17 PLC control system 1 set
18 Double station winding machine 2 sets





Function of PP PET packing straps extrusion machine



1) PP PET raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and drying that save a large number of equipment investment and reduce the production cost by 30%;

2) Utilizing the retrieving bottle slice as raw materials that reducing the cost to a great extent;

3) With the multi-purpose machine, produce the PP PET straps in different specifications directly and dont need to change the mould head;

4) Comparing with new polyester slice, the transparency of products is just the same, but the tensile strength and shock resistance are up to the international grade;

5) Low Energy consumption, but high production capability;

6)Easy to operate, save the manpower and two persons for one production line on average.

9-32mm Width Customized PET 3 Straps Output Making Machine With Large Extrusion 400kg/H 1
