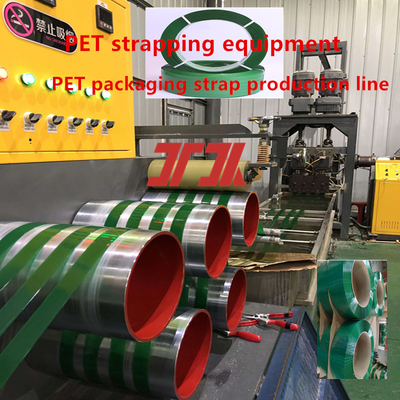

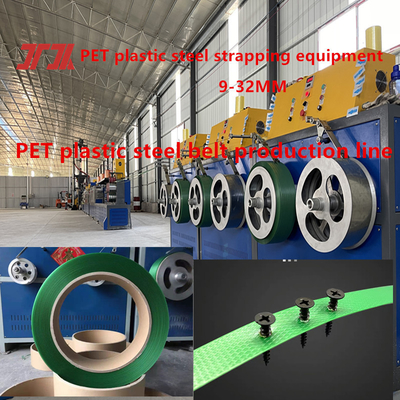

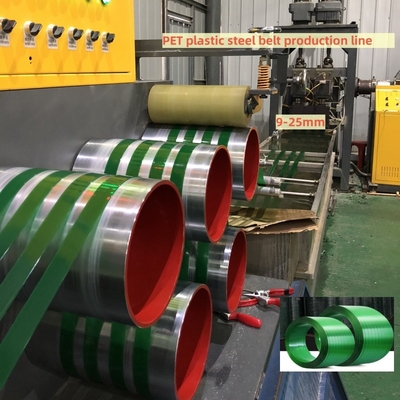

High speed 9-25mm single screw PET PP belt making machine PET plastic steel belt production line for automatic screen changer
PET packing strap extrusion machine features:
Basic parameters of PET steel plastic belt equipment:
Production capacity: usually 100-600 kg/h.
Belt width: commonly 9-32 mm.
Belt thickness: usually 0.4-1.2 mm.
Equipment power: depending on the model, the power is between 100-400KW.
Different extruder models and production capacities can be customized according to customer requirements.
Raw materials: 100% PET bottle flakes or crushed materials
EXTRUSION PARAMETERS TABLE
| Model |
PET-2 |
PET-3 |
PET-4 |
PET-6 |
PET-8 |
| Raw materials |
100% Bottle flakes/crushed materials |
| Number of tapes |
2 |
3 |
4 |
6 |
8 |
| Width (mm) |
9-32 |
| Thickness (mm) |
0.4-1.2 |
| Maximum line speed |
≧150 |
≧150 |
≧150 |
≧150 |
≧150 |
| Screw Model |
90 |
100 |
125 |
150 |
180 |
| Reducer model |
200 |
250 |
280 |
315 |
350 |
| Dehumidifier |
1000 |
1000 |
2000 |
3000 |
3500 |
| Metering Pumps |
100CC |
| Production capacity /24 H |
5-6T |
7-8T |
10-12T |
12-15T |
18-20T |
Company advantages:
The equipment is equipped with a PLC human-machine interface, which is easy to operate and debug. The equipment has an exclusive parameter memory system, which can store data for each specification after production, and can directly adjust the parameters for the next production.
The embossing wheel is processed by equipment imported from Germany, which is durable
The equipment is equipped with a correction device, and the winding is neat and knife-cut.
The main functions of PET toughening agents:
Improve impact resistance---By increasing the toughness of PET, it reduces its brittle fracture when impacted.
Improve processing performance------Reduce processing temperature, reduce energy consumption, and improve fluidity to make processing smoother.
Enhance flexibility-------Make PET materials softer and suitable for application scenarios that require flexibility.
Improve heat resistance-------Some toughening agents can improve the heat resistance of PET, allowing it to maintain stable performance at high temperatures.
After-sales service:
Our PET plastic steel belt equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic steel belt equipment.
2. Analysis of finished product manufacturing costs of PET plastic steel belt equipment.
3. Analysis of raw materials used in PET plastic steel belt equipment.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel belt equipment.
2. Installation, commissioning and training of PET plastic steel belt equipment.
3. Maintenance service of PET plastic steel belt equipment.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, ranging from 150-600KG/H
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
