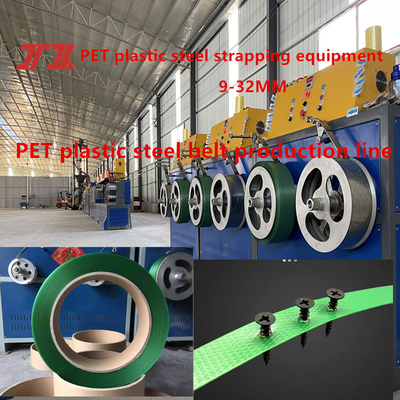

Plastic extruder PET PP belt making machine PET plastic steel belt production line for automatic screen changer

Plastic extruder PET PP belt making machine PET plastic steel belt production line for automatic screen changer

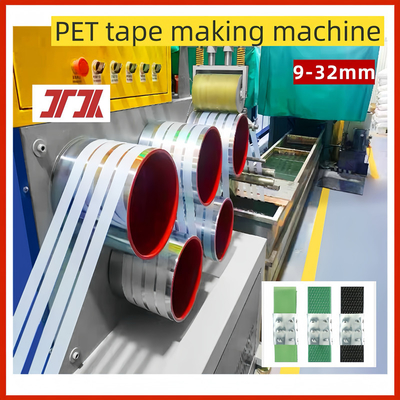

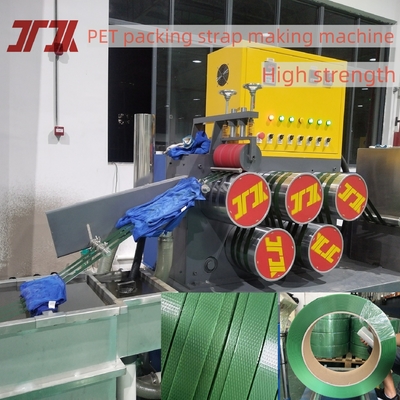

 PET packing strap extrusion machine features:

Extrusion process-----PET belt making machine uses a special screw for extruder, which is evenly extruded by heating and melting.

Cooling and solidification----The extruded PET belt embryo is then cooled and solidified using a cooling water tank or other refrigerator to ensure that the material maintains its shape and characteristics.

Stretching and orientation----PET belt making machines usually include stretching and orientation parts to improve the tensile strength, flexibility and overall performance of the PET belt. This process aligns the molecules in the PET material to enhance its mechanical properties.

Raw materials: 100% PET bottle flakes or crushed materials

                                           EXTRUSION PARAMETERS TABLE

About PET Plastic Steel Belt Winding Machine:

a, Human-machine interface: various functions and displays in the PLC touch screen panel of the automatic winding machine (winding length, weight, start, stop, interface switching, bandwidth selection, paper core height selection, etc.)

b, The automatic winding machine replaces PET plastic steel belts of different specifications and widths without replacing the transmission gears, belt grooves, etc. The back and forth axis line travel is automatically calculated by the computer, and the bandwidth spacing can be fine-tuned by the servo.

C, The automatic winding machine moves through the swing arm, and the sensor synchronously adjusts the winding speed to achieve constant tension winding.

D, Two modes of weight and meter are available, and the button one-button control spring gas expansion disk is used. The 9-32MM bandwidth arrangement is automatically calculated, and the side roller fits the guide belt to rewind, so that the finished PET belt rewinding end surface is flat, neatly arranged, and the spacing is uniform without overlapping.

Features of PET plastic steel belt:
PET belt, also known as plastic steel belt, is a new type of strapping belt that is currently popular in the world to replace steel belt. It is widely used in steel, aluminum, chemical fiber, cotton spinning, tobacco, paper industry, metal can making and other industries.
Strong tensile strength: It has both the tensile strength of steel belt and the ductility to resist impact, which can ensure the transportation safety of your products.
Low elongation: The elongation is only one-sixth of that of polypropylene (PP) belt, and it can maintain tension for a long time.

PET packing tape, PET plastic steel strapping tape, is widely used in the strapping of various heavy goods and used to fix the goods during transportation. In warehouses, PET packing tape is also often used to fix goods and is used in heavy industries, such as the strapping and fixing of building materials.

The main functions of PET toughening agents:

Improve impact resistance---By increasing the toughness of PET, it reduces its brittle fracture when impacted.

Improve processing performance------Reduce processing temperature, reduce energy consumption, and improve fluidity to make processing smoother.

Enhance flexibility-------Make PET materials softer and suitable for application scenarios that require flexibility.

Improve heat resistance-------Some toughening agents can improve the heat resistance of PET, allowing it to maintain stable performance at high temperatures.

​

After-sales service:

Our PET plastic steel belt equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:

Pre-sales:

1. Layout of PET plastic steel belt equipment.

2. Analysis of finished product manufacturing costs of PET plastic steel belt equipment.

3. Analysis of raw materials used in PET plastic steel belt equipment.

After-sales service:

1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel belt equipment.

2. Installation, commissioning and training of PET plastic steel belt equipment.

3. Maintenance service of PET plastic steel belt equipment.

4. Regular maintenance and repair

5. Fault diagnosis

6. Software update and upgrade

7. Spare parts and accessories

8. Training and technical consultation

 FAQ:

Q: What is the voltage of the PET plastic steel belt equipment?

A: 380V/50HZ, three-phase (customization supported)

Q: What is the extrusion capacity of the PET plastic steel belt equipment?

A: Different models have different extrusion capacities, ranging from 150-600KG/H

Q: Where does the PET plastic steel belt equipment come from?

A: China.

Q: What are the certifications for PET plastic steel belt equipment?

A: ISO CEO certification.

Q: What is the minimum order quantity for PET plastic steel belt equipment?

A: 1 set

Q: What is the weight of the PET plastic steel belt equipment?

20T, 40GP container * 3PCS
