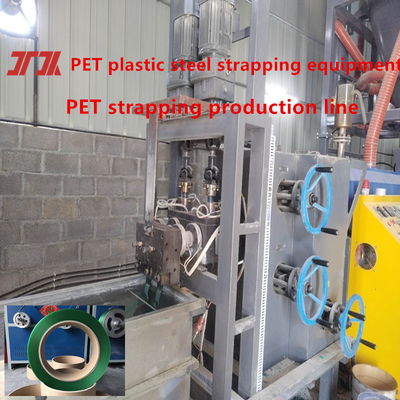

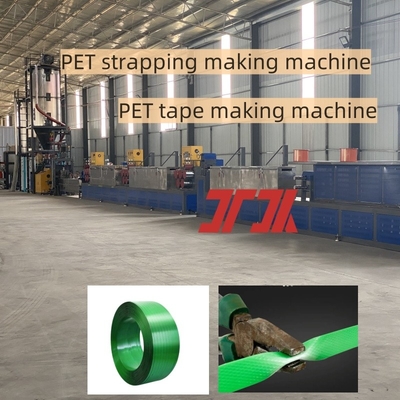

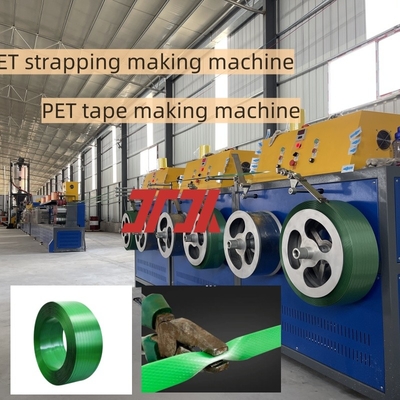

Plastic Machinery 9-32mm Single Screw PET Belt Making Machine PET Plastic Steel Belt Production Line for Chemical Fiber Filter
Description of PET strapping making machine:
Advantages of PET plastic steel belt equipment:
Economical and efficient: With long service life, low maintenance requirements and high degree of automation, it is an economical and efficient equipment for the use of packaging materials.
Efficient: High strength and durability ensure efficient material handling, sustainable production and reduced downtime.
Safe: The solid structure ensures safe and reliable operation and minimizes the risk of belt failure.
Energy saving: Energy saving and environmental protection, high output and low power consumption.
Line speed: 120-250 m/min
PET belt making machine--screw:
1. Single screw extruder, equipped with automatic mixing and feeding system, PET plastic steel belt special screw and complete set of screw sleeve, with high plasticization rate, uniform melt, continuous and stable production.
2. High-performance gearbox reducer, large torque, long life and low noise.
3. Equipped with automatic feeding, proportioning, metering and mixing system for raw materials and additives, no manual addition is required, reducing manufacturing costs.
EXTRUSION PARAMETERS TABLE
| Model |
PET-2 |
PET-3 |
PET-4 |
PET-6 |
PET-8 |
| Raw materials |
100% Bottle flakes/crushed materials |
| Number of tapes |
2 |
3 |
4 |
6 |
8 |
| Width (mm) |
9-32 |
| Thickness (mm) |
0.4-1.2 |
| Maximum line speed |
≧150 |
≧150 |
≧150 |
≧150 |
≧150 |
| Screw Model |
90 |
100 |
125 |
150 |
180 |
| Reducer model |
200 |
250 |
280 |
315 |
350 |
| Dehumidifier |
1000 |
1000 |
2000 |
3000 |
3500 |
| Metering Pumps |
100CC |
| Production capacity /24 H |
5-6T |
7-8T |
10-12T |
12-15T |
18-20T |
Features of PET plastic steel belt:
PET belt, also known as plastic steel belt, is a new type of strapping belt that is currently popular in the world to replace steel belt. It is widely used in steel, aluminum, chemical fiber, cotton spinning, tobacco, paper industry, metal can making and other industries.
Strong tensile strength: It has both the tensile strength of steel belt and the ductility to resist impact, which can ensure the transportation safety of your products.
Low elongation: The elongation is only one-sixth of that of polypropylene (PP) belt, and it can maintain tension for a long time.
Features of PET plastic steel belt:
PET belt, also known as plastic steel belt, is a new type of strapping belt that is currently popular in the world to replace steel belt. It is widely used in steel, aluminum, chemical fiber, cotton spinning, tobacco, paper industry, metal can making and other industries.
Strong tensile strength: It has both the tensile strength of steel belt and the ductility to resist impact, which can ensure the transportation safety of your products.
Low elongation: The elongation is only one-sixth of that of polypropylene (PP) belt, and it can maintain tension for a long time.
PET packing tape, PET plastic steel strapping tape, is widely used in the strapping of various heavy goods and used to fix the goods during transportation. In warehouses, PET packing tape is also often used to fix goods and is used in heavy industries, such as the strapping and fixing of building materials.
After-sales service:
Our PET plastic steel belt equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic steel belt equipment.
2. Analysis of finished product manufacturing costs of PET plastic steel belt equipment.
3. Analysis of raw materials used in PET plastic steel belt equipment.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel belt equipment.
2. Installation, commissioning and training of PET plastic steel belt equipment.
3. Maintenance service of PET plastic steel belt equipment.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
Q: What is the voltage of the PET plastic steel belt equipment?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET plastic steel belt equipment?
A: Different models have different extrusion capacities, ranging from 150-600KG/H
Q: Where does the PET plastic steel belt equipment come from?
A: China.
Q: What are the certifications for PET plastic steel belt equipment?
A: ISO CEO certification.
Q: What is the minimum order quantity for PET plastic steel belt equipment?
A: 1 set
Q: What is the weight of the PET plastic steel belt equipment?
20T, 40GP container * 3PCS
