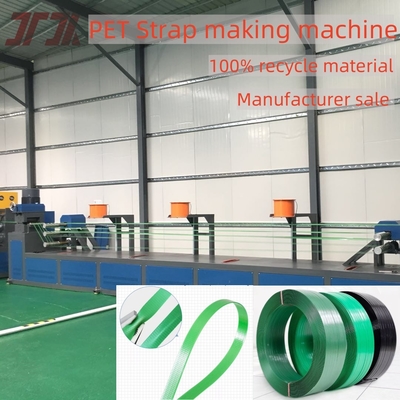

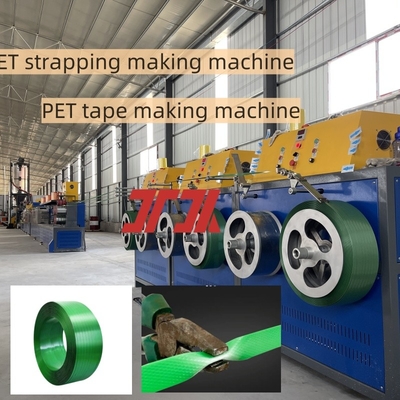

Supply packaging machinery PET PP strapping equipment PET strapping production line for automatic wrapping machine
Description of PET strapping making machine:
Advantages of PET strapping production line:
1. It can use 100% PET bottle flakes or crushed materials to produce high-end PET strapping tape;
2. It can produce 1, 2, 4 or 8 strapping tapes at the same time according to user requirements;
3. Advanced PLC operation control system, high degree of automation, saving labor costs;
4. Energy-saving and high efficiency, saving production costs; high output and low power consumption.
Line speed: 120-250 m/min
About the screw:
1.PET plastic steel packing belt production line adopts high-precision 38CrMoALA material screw, which is wear-resistant and durable.
2.PET plastic steel packing belt production line screw after special nitride steel treatment, strong wear resistance, low failure rate.
3.PET plastic steel packing screw after nitriding treatment, the hardness is quite high, the hardness is above HV800, the hardened layer can reach 0.30mm~0.5mm, which can effectively prevent the wear of PET raw materials such as iron wire on the screw.
EXTRUSION PARAMETERS TABLE
| Model |
PET-2 |
PET-3 |
PET-4 |
PET-6 |
PET-8 |
| Raw materials |
100% Bottle flakes/crushed materials |
| Number of tapes |
2 |
3 |
4 |
6 |
8 |
| Width (mm) |
9-32 |
| Thickness (mm) |
0.4-1.2 |
| Maximum line speed |
≧150 |
≧150 |
≧150 |
≧150 |
≧150 |
| Screw Model |
90 |
100 |
125 |
150 |
180 |
| Reducer model |
200 |
250 |
280 |
315 |
350 |
| Dehumidifier |
1000 |
1000 |
2000 |
3000 |
3500 |
| Metering Pumps |
100CC |
| Production capacity /24 H |
5-6T |
7-8T |
10-12T |
12-15T |
18-20T |

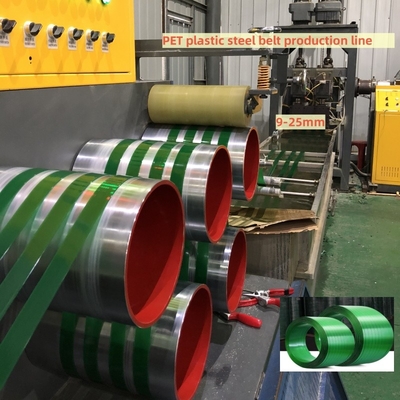

PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (with raw materials) →⑦ Preheating the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding
Features of PET plastic steel belt:
PET belt, also known as plastic steel belt, is a new type of strapping belt that is currently popular in the world to replace steel belt. It is widely used in steel, aluminum, chemical fiber, cotton spinning, tobacco, paper industry, metal can making and other industries.
Strong tensile strength: It has both the tensile strength of steel belt and the ductility to resist impact, which can ensure the transportation safety of your products.
Low elongation: The elongation is only one-sixth of that of polypropylene (PP) belt, and it can maintain tension for a long time.
PET packing tape, PET plastic steel strapping tape, is widely used in the strapping of various heavy goods and used to fix the goods during transportation. In warehouses, PET packing tape is also often used to fix goods and is used in heavy industries, such as the strapping and fixing of building materials.
After-sales service:
Our PET plastic steel belt equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic steel belt equipment.
2. Analysis of finished product manufacturing costs of PET plastic steel belt equipment.
3. Analysis of raw materials used in PET plastic steel belt equipment.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel belt equipment.
2. Installation, commissioning and training of PET plastic steel belt equipment.
3. Maintenance service of PET plastic steel belt equipment.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
1.Are you manufacturer or trading company?
We are manufacturer, so that we can quote a best price to you without any person adding extra fee between us.
2.China is far from our country, if our machine have any question that what would you do it?
We have a warranty by one year, we will conduct a chatting online with you to solve the question if have any question, and we will send the new one to change, if we find the question of the machine is other spare parts was damaged.
By the way our machine of the quality is the best one, we are confident in saying that you can using it without any question over 10 years,we have great after-sales service.
3.If we buy your machines, can you offer us wear-out spare parts?
We will provide some wear-out spare parts free of charge, it will send to you with the machine.
4.How am I suppose to trust you the machine I received matches your description?
Appearance of final products may differ from pictures shown, but we can make sure each component and technical parameters remains the same as quoted, we also provide videos of whole traceable production process if necessary.
