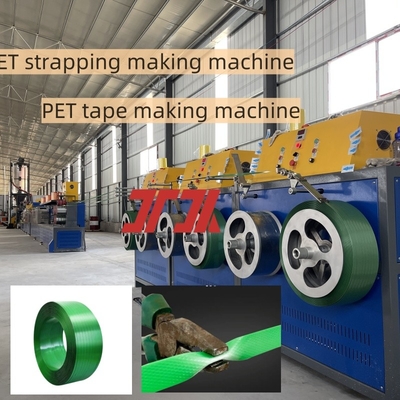

Plastic Machinery PET strapping making machine PET strapping making machine PET strapping extrusion line 100-600KG/H extrusion capacity
Description of PET strapping making machine:
Features of PET plastic steel belt equipment:
1. Adopt special PET extruder dedicated screw, extrusion energy can be customized according to customer requirements.
2. Can use 100% recycled PET bottle flakes or broken material pellets for production.
3. The main machine extrudes evenly, the die head flow channel extrudes stably, and the whole line is automatically controlled by PLC.
4. According to different requirements, the coating material is replaced to make the strap have better stretching ability.
5. Equipped with melt filter, ventilation design and backwashing function.
6. Number of straps: 1-8 straps (support customization).
Line speed: 120-250 m/min
PET plastic steel belt:
PET packing strap is widely used in packing applications, it can replaced the steel strap for packing application, as its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.
EXTRUSION PARAMETERS TABLE
| Model |
PET-2 |
PET-3 |
PET-4 |
PET-6 |
PET-8 |
| Raw materials |
100% Bottle flakes/crushed materials |
| Number of tapes |
2 |
3 |
4 |
6 |
8 |
| Width (mm) |
9-32 |
| Thickness (mm) |
0.4-1.2 |
| Maximum line speed |
≧150 |
≧150 |
≧150 |
≧150 |
≧150 |
| Screw Model |
90 |
100 |
125 |
150 |
180 |
| Reducer model |
200 |
250 |
280 |
315 |
350 |
| Dehumidifier |
1000 |
1000 |
2000 |
3000 |
3500 |
| Metering Pumps |
100CC |
| Production capacity /24 H |
5-6T |
7-8T |
10-12T |
12-15T |
18-20T |

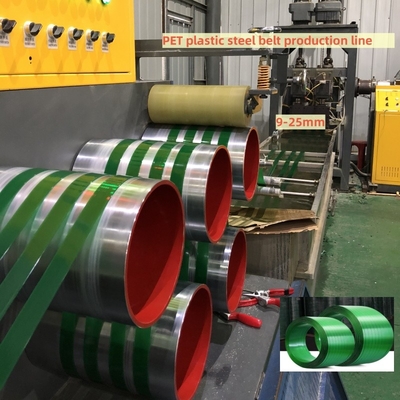

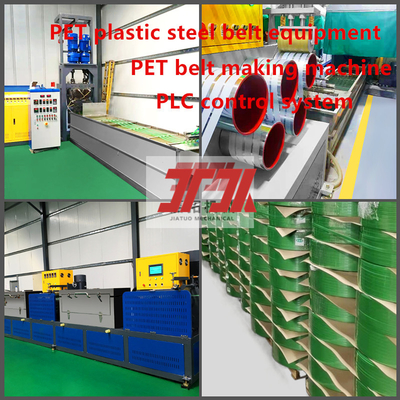

Features of PET plastic steel belt production line:
Efficient production-----with high degree of automation and fast production speed.
High-quality products----The produced PET plastic steel belt has high strength, good toughness and strong tensile force.
Energy saving -----energy-saving design is adopted, the raw materials are mineral water bottles, which can be recycled and the manufacturing cost is low.
Easy operation----PLC automatic control, easy to operate.

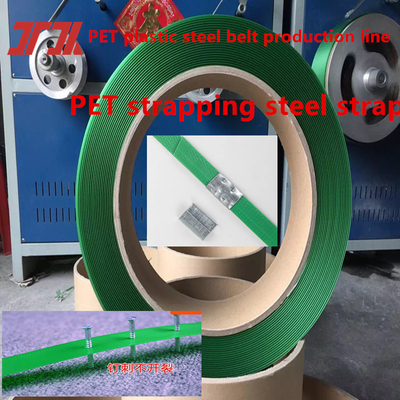

Features of PET plastic steel belt:
PET belt, also known as plastic steel belt, is a new type of strapping belt that is currently popular in the world to replace steel belt. It is widely used in steel, aluminum, chemical fiber, cotton spinning, tobacco, paper industry, metal can making and other industries.
Strong tensile strength: It has both the tensile strength of steel belt and the ductility to resist impact, which can ensure the transportation safety of your products.
Low elongation: The elongation is only one-sixth of that of polypropylene (PP) belt, and it can maintain tension for a long time.
After-sales service:
Our PET plastic steel belt equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic steel belt equipment.
2. Analysis of finished product manufacturing costs of PET plastic steel belt equipment.
3. Analysis of raw materials used in PET plastic steel belt equipment.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel belt equipment.
2. Installation, commissioning and training of PET plastic steel belt equipment.
3. Maintenance service of PET plastic steel belt equipment.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
1.Are you manufacturer or trading company?
We are manufacturer, so that we can quote a best price to you without any person adding extra fee between us.
2.China is far from our country, if our machine have any question that what would you do it?
We have a warranty by one year, we will conduct a chatting online with you to solve the question if have any question, and we will send the new one to change, if we find the question of the machine is other spare parts was damaged.
By the way our machine of the quality is the best one, we are confident in saying that you can using it without any question over 10 years,we have great after-sales service.
3.If we buy your machines, can you offer us wear-out spare parts?
We will provide some wear-out spare parts free of charge, it will send to you with the machine.
4.How am I suppose to trust you the machine I received matches your description?
Appearance of final products may differ from pictures shown, but we can make sure each component and technical parameters remains the same as quoted, we also provide videos of whole traceable production process if necessary.
